What Does a Cloudlifter Do? Understanding Its Role in Audio

Table of Contents

Last Updated on March 21, 2024 by Muisc Pro Editorial Team

What Exactly is a Cloudlifter?

A cloudlifter, or signal booster, is essentially a device designed to amplify the audio signal from your dynamic mic or condenser mic, acting as an inline preamp to provide additional gain. By placing it between your microphone and the audio interface or preamp, it elevates the signal to levels that are practical and usable for recording or broadcasting. The primary function of a cloudlifter is to provide additional preamp gain, enhancing the signal strength so you achieve a higher input level on your audio interface or mixer.

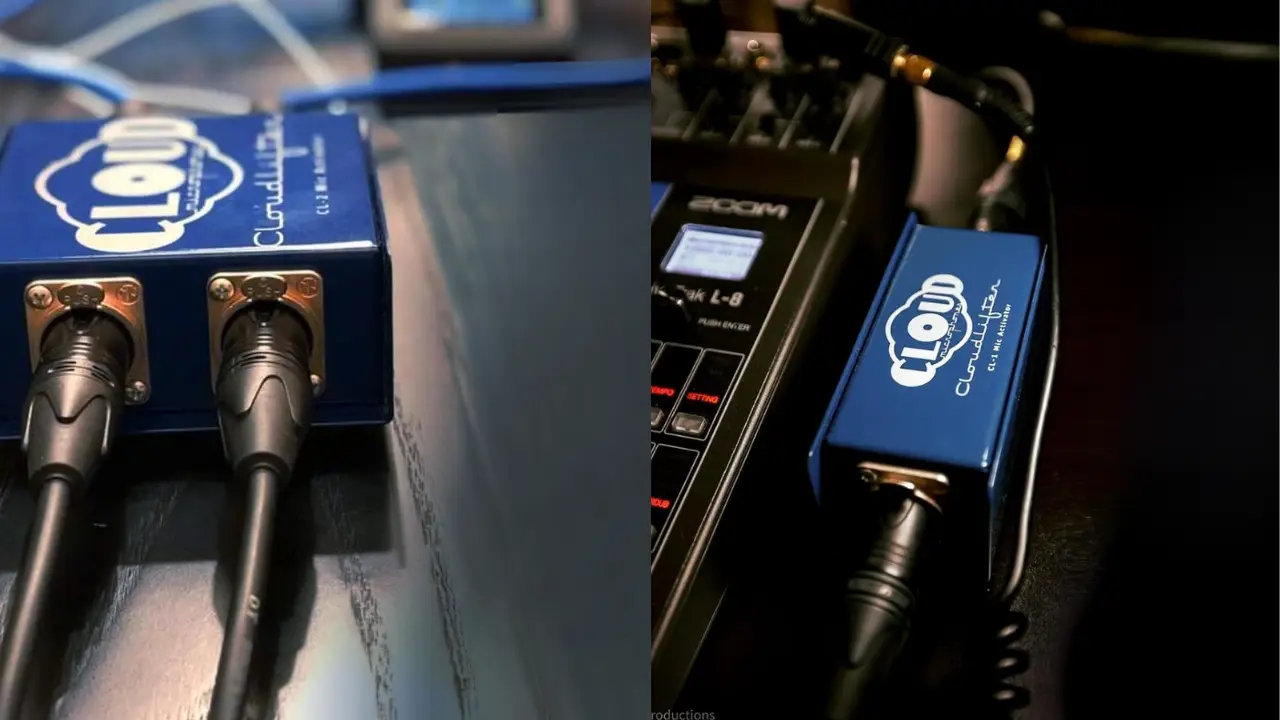

connected-cloudlifter

The Need for a Cloudlifter

Ribbon microphones, as well as dynamic mics and especially those classified as low output dynamic and low output mic models, often produce a signal that can struggle against the noise floor without additional gain which can be insufficient on its own, leading to poor signal quality and a low signal-to-noise ratio (SNR). To combat this, one might consider increasing the gain on their preamp or audio interface. However, this approach may not always yield a strong enough signal. This is where a cloudlifter becomes invaluable, offering the necessary boost to achieve optimal levels and thus, high-quality recordings or broadcasts.

How Does a Cloudlifter Operate?

Cloudlifters utilize the 48V phantom power supplied by your mixer or audio interface to pass signal amplification to dynamic mics and are particularly effective for condenser mics that do not require direct phantom power, converting this power into a clean, amplified signal boost. Depending on the model, a cloudlifter can add anywhere from 15 to 30 dB of gain staging. It’s important to note that because they use the phantom power for the boost, cloudlifters typically do not pass this power through to the microphone. This means they are not suitable for a condenser microphone, which require 48V phantom power to operate.

Implementing a Cloudlifter in Your Setup

Incorporating a cloudlifter into your audio setup, especially when dealing with low output mics, is straightforward and beneficial for reducing the noise floor. You connect your microphone to the cloudlifter and then link it to your audio interface or mixer. Ensuring the 48V phantom power is activated on your channel is crucial, as the cloudlifter needs this power to operate. From there, you simply adjust the gain until you achieve the desired signal levels.

Do You Need a Cloudlifter?

Whether you need a cloudlifter largely depends on your choice of microphone, like a dynamic mic or a condenser mic, and the capabilities of your audio equipment, including whether it features a high-end preamp for optimal signal clarity. Dynamic and ribbon mics, known for their lower sensitivities, require significant maximum gain, which may not be sufficiently provided by older or less capable audio interfaces or mixers. A cloudlifter becomes necessary if your equipment cannot offer more than +50 dB of gain with a low-output microphone. However, with advancements in technology, modern interfaces like the CONNECT 6 can provide ample, crystal-clear gain without the need for a cloudlifter, accommodating any type of microphone efficiently.

Does a Cloudlifter Enhance Audio Quality?

The effect of a cloudlifter on sound quality largely hinges on the specifics of your existing setup. For setups equipped with low-noise preamps—a common feature in about 90% of today’s audio interfaces—a cloudlifter may not notably improve your audio quality. However, in cases where you’re using an interface characterized by high Equivalent Input Noise (EIN), such as a mobile recorder or an older interface, a cloudlifter can play a crucial role in diminishing the noise within your signal. To ascertain if a cloudlifter would be beneficial, compare the self-noise levels of your equipment with those of the cloudlifter. A significantly lower self-noise level in the cloudlifter means it can deliver a cleaner, improved signal.

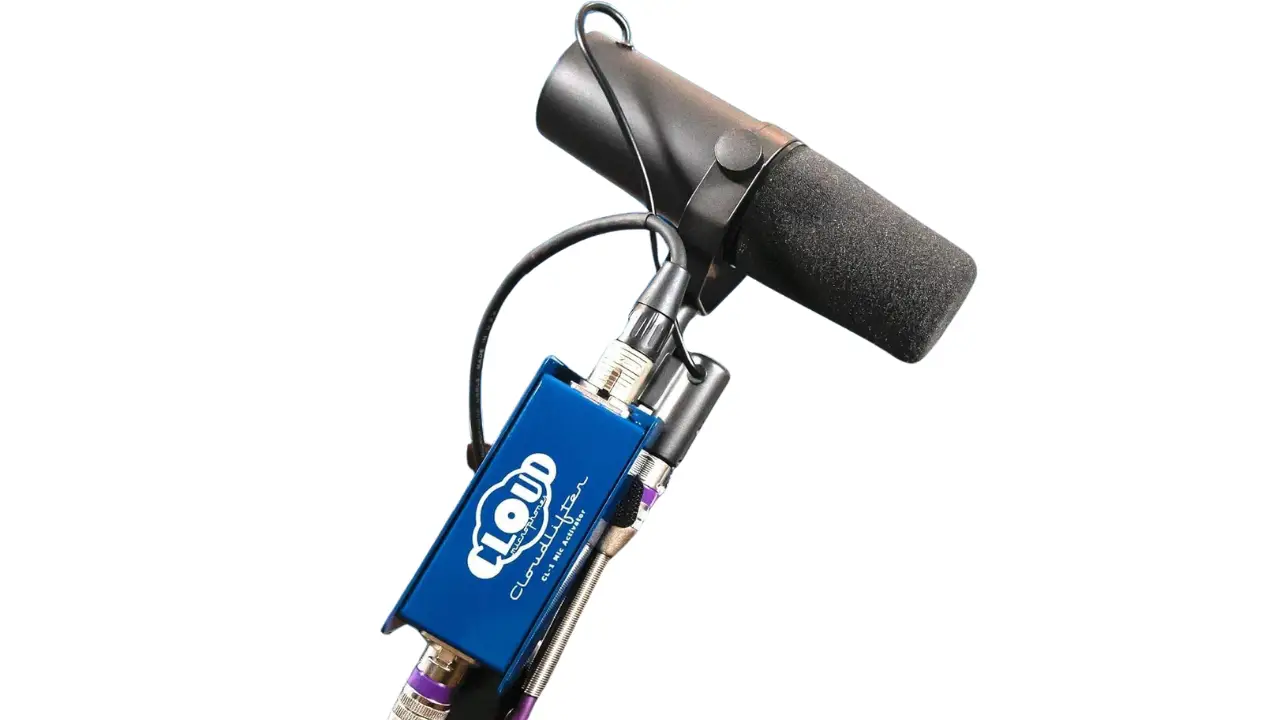

cloudlifter-on-mic

Alternatives to Cloudlifters

For those weighing options beyond cloudlifters, the prime alternative might be an audio interface or mixer that inherently provides enough gain for achieving desirable microphone levels. With such equipment, additional devices become unnecessary. You simply connect your microphone directly to the interface, adjust the gain, and proceed with recording or broadcasting. It’s advisable to review the specifications of various devices to determine which best meets your needs, potentially eliminating the need for a cloudlifter.

Drawbacks of Cloudlifters

When contemplating the use of a cloudlifter, it’s important to consider potential drawbacks, though they are few. Beyond the additional cost and the potential for added clutter in your setup, cloudlifters do not inherently detract from audio quality. They are designed to amplify your signal without degrading it. Depending on your specific audio setup and requirements, a cloudlifter can be an elegant solution to gain-related challenges or an unnecessary addition if your existing equipment already meets your needs.

Conclusion

In summary, the cloudlifter serves as a valuable tool for those looking to enhance the gain of their audio signals, particularly when using dynamic and ribbon microphones with equipment that may not provide more gain on its own. By offering a cleaner signal through noise reduction and gain amplification, cloudlifters can significantly improve recording quality in specific setups. However, with the advancement of modern audio interfaces boasting low-noise preamps, the necessity for a cloudlifter might not be as prevalent for everyone. Before considering a cloudlifter, it’s essential to assess your current equipment’s capabilities and determine whether this device fits your audio enhancement needs. Alternatives exist, and in some cases, a high-quality audio interface or mixer alone might suffice. Ultimately, the decision to use a cloudlifter should be based on a careful evaluation of your audio setup and the specific requirements of your recording or broadcasting endeavors.
