Condenser microphones, renowned for their exceptional audio clarity and sensitivity, are a staple in the world of sound recording. These microphones stand out for their ability to capture sound with a level of detail and fidelity unmatched by other types of microphones, making them an ideal choice for a variety of applications, from professional studio recording to sophisticated home setups. This article delves into the intricacies of condenser microphones, exploring their design, how condenser microphone work, their advantages and limitations, and the scenarios in which they truly shine, including recording acoustic guitar and capturing ambient sounds with small diaphragm condenser mics and large diaphragm condenser mics. Whether you’re a seasoned audio engineer or a budding musician, understanding the unique qualities and uses of condenser microphones can significantly enhance your recording projects.

Understanding Condenser Microphones

person-using-condenser-mic

Condenser microphones are highly regarded in the audio recording industry for their exceptional sensitivity and fidelity. These microphones are favored for studio recordings due to their ability to capture a broader range of frequencies with greater detail compared to dynamic microphones. The core of a condenser microphone’s superiority lies in its wide frequency response and faster signal pickup, making them particularly suitable for environments where clarity and detail are paramount. However, this increased sensitivity means they are more prone to picking up background noises, making them less ideal for noisy or reflective spaces.

The Working Principle

To grasp the functionality of condenser microphones, it’s essential to understand their basic working mechanism. Inside a condenser mic, there is a thin diaphragm made of conductive material, positioned close to a solid metal plate. This configuration is the heart of the microphone. When sound waves strike the diaphragm, it vibrates, inducing a current that transfers to the metal plate. This process converts acoustic energy into an electrical signal, which is too weak to be used directly. Therefore, condenser mics are equipped with an onboard preamp to amplify this signal. The operation of both the preamp and the diaphragm requires external power, typically provided as 48V phantom power through an XLR cable. This necessity underscores the importance of ensuring your recording setup can deliver the required power for a condenser microphone to function.

Pros and Cons

Condenser microphones shine in controlled environments where the quality of audio recording is a priority. Their design, which enables the capture of more nuanced sounds with lower self-noise, suits studio settings where every detail matters. These microphones, with their fidelity and accuracy across a wide frequency spectrum, are the go-to choice for capturing vocals, acoustic instruments, and any application where sound detail is critical, delivering high-quality sound.

Pros

  • Wide-frequency response: Captures a broad range of sounds from low bass to high treble with detail and clarity.
  • Superior transient response: Important for recording crisp, high-frequency sounds like drum attacks or string plucks without distortion.
  • Often feature an omnidirectional polar pattern: Less suited for isolating single sources in noisy environments but ideal for recording ensembles (orchestras, choirs) to capture ambiance and collective sound from all directions..

Cons

  • Sensitivity can be a drawback: Captures detailed soundscapes but also prone to picking up unwanted background noise in non-soundproofed environments.
  • Higher price tag: May not fit all budgets or needs due to generally higher costs compared to dynamic microphones.
  • Reliance on external power supply: Typically requires 48V phantom power, limiting versatility compared to dynamic mics that do not need external power.

Types of Condenser Microphones

Condenser microphones, known for their detail and clarity, come in various designs to cater to different recording needs. Each type has its unique features and applications, making it essential to understand the distinctions to select the right microphone for your project.

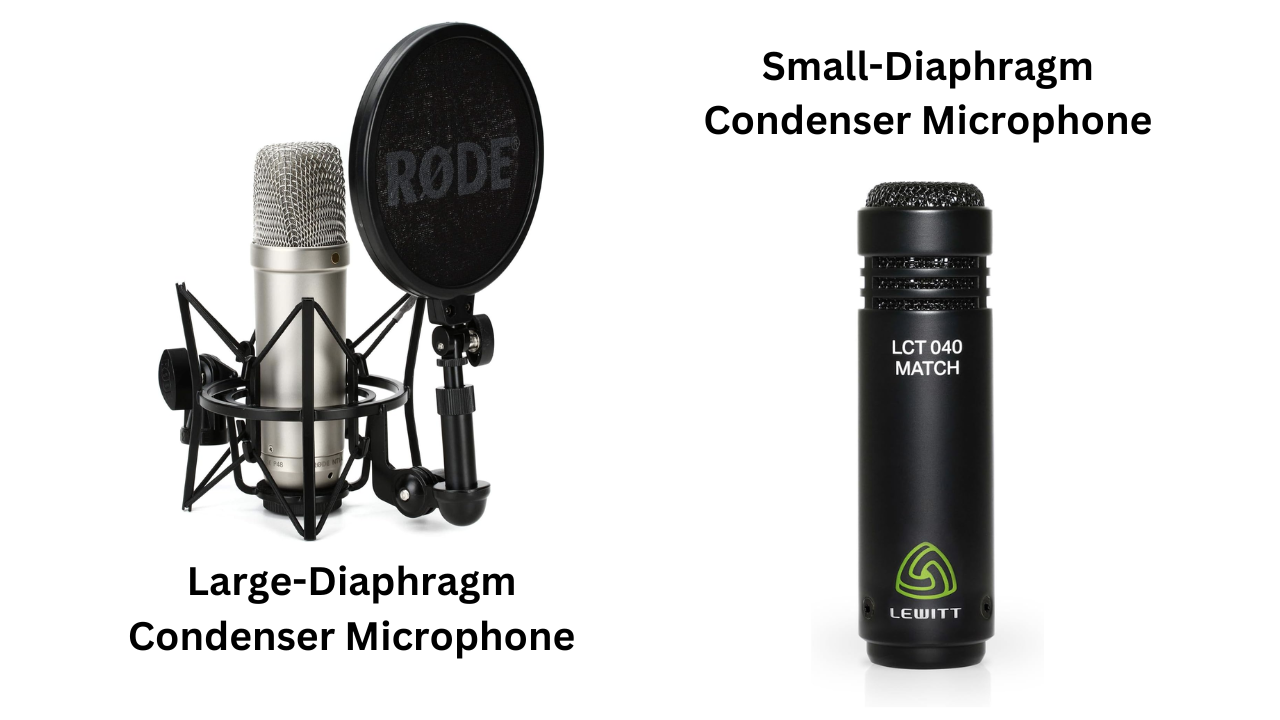

large-diaphragm-and-small-diaphragm

Large-Diaphragm Condenser Microphones

Large-diaphragm condenser microphones are characterized by their sizable membrane, typically one inch or larger in diameter. This design allows for a higher signal voltage, resulting in lower self-noise. These microphones often produce a ‘lush’ and ‘warm’ sound, making them preferred for recording vocals and a variety of other applications. However, they may have a less consistent pickup pattern than their small-diaphragm counterparts, which can influence the recording’s coloration.

Small-Diaphragm Condenser Microphones

In contrast, small-diaphragm condenser microphones are known for their flat, accurate audio reproduction. These microphones, with a diaphragm diameter of half an inch or less, excel in capturing sound with natural clarity and extended frequency response. They are ideal for recording instruments with fast attack times like pianos, drums, and strings due to their superior transient response, offering flexibility in microphone placement and recording techniques, making them essential tools in any recording studio. Small-diaphragm mics can be either side-address or end-address, offering flexibility in microphone placement and recording techniques.

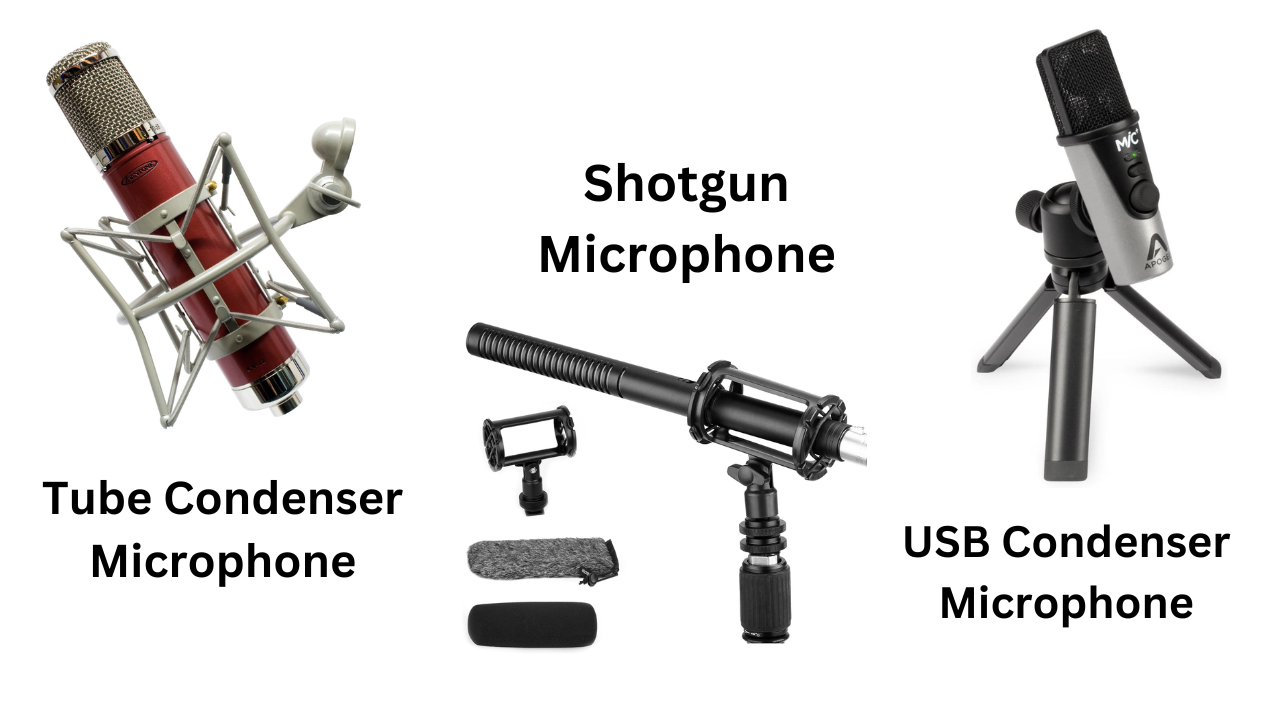

tube-condenser-and-shotgun-microphone-and-usb-condenser

Tube Condenser Microphones

Tube condenser microphones incorporate vacuum tubes in their preamplifier circuits, setting them apart from those using transistor technology. Initially replaced by solid-state technology, tube microphones have regained popularity for the unique warmth, saturation, and harmonics they add to recordings. Despite their desirable sound characteristics, tube mics tend to have higher self-noise levels and require a separate power supply, which is something to consider when planning your recording setup.

Shotgun Microphones

Shotgun microphones are designed for precision in capturing audio from a distance. They feature a long, tubular shape with an interference tube that helps isolate the sound source, minimizing off-axis noise through phase cancellation. This directional characteristic makes shotgun mics particularly useful in filmmaking, whether mounted on a camera or a boom pole, and in studio settings for isolated sound capture, like foley work.

USB Condenser Microphones

USB condenser microphones provide a straightforward, all-in-one recording solution by integrating an A/D converter and USB output. This design allows for direct digital recording to computers or other digital devices, eliminating the need for external audio interfaces or mixers. Models like the NT-USB Mini are particularly appealing for users seeking an easy setup for high-quality audio recording, with the added convenience of a headphone output for direct monitoring.

Conclusion

In summary, condenser microphones serve as a cornerstone in the realm of audio recording, offering unparalleled sensitivity and accuracy that make them indispensable for studio applications. Their ability to capture a wide frequency range and the subtle nuances of sound with exceptional clarity sets them apart from their dynamic microphone counterparts. While they excel in controlled, soundproof environments, their sensitivity to background noise and reliance on external power highlight their specialized nature. Despite these considerations, the superior sound quality and versatility of condenser microphones solidify their status as a favored choice among audio professionals and enthusiasts alike. Whether for capturing the delicate timbre of an acoustic instrument, the dynamic range of a vocal performance, or the complex harmonics of an ensemble, condenser microphones offer the fidelity and detail required to bring recordings to life.
