Mic Level vs Line Level: Understanding and Connecting Right

Table of Contents

Last Updated on March 22, 2024 by Muisc Pro Editorial Team

Are you finding the concepts of line level and mic level confusing? You’re certainly not alone in this. Many people find themselves puzzled by the differences between these two types of audio signals. To put it simply, both terms refer to the voltage level of an audio signal. Knowing the distinction between them is key to avoiding audio mishaps and ensuring that your audio devices are correctly matched to their appropriate inputs.

What is Mic Level?

Mic-level, or microphone-level, signals are the initial voltages generated by wired and wireless microphones when they capture sound. These signals are quite weak, typically a few thousandths of a volt, and vary depending on the sound level and distance from the sound source. With a typical range specified between -60 and -40 dBu, mic-level signals are the lowest of the four main types of audio signals and require amplification to be usable in most audio setups.

Amplifying Mic-Level Signal

To make mic-level signals strong enough for general audio equipment, they need to be amplified to line level. Devices such as mixers, preamplifiers, and mic-to-line amplifiers are commonly used for this purpose. Mixers are especially popular because they can also blend multiple signals into a single output. These amplification devices come in various forms, including single-channel and multi-channel options, to cater to different audio needs.

What is Line Level?

In contrast to a mic-level signal, a line-level signal is much stronger, about 1,000 times as powerful, equating to approximately one volt. Because of this significant difference in strength, line-level and mic-level signals usually require not the same input. Line-level signals are what travel from your pre-amp to the amplifier that then powers your speakers.

The Two Standards of Line Level

There are two primary standards for a line-level signal:

  • -10 dBV is used for consumer audio equipment, such as MP3 and DVD players.
  • +4 dBu is common in professional audio gear, including mixing desks and signal processing equipment.

In addition to mic and line levels, you’ll also encounter instrument and speaker levels in the audio world. Like mic-level signals, instrument-level signals (from devices like electric guitars or basses) need preamplification to reach line level. Speaker-level signals, on the other hand, are even higher in voltage than line level and require special speaker cables for safe transmission.

Matching Device Levels to Inputs

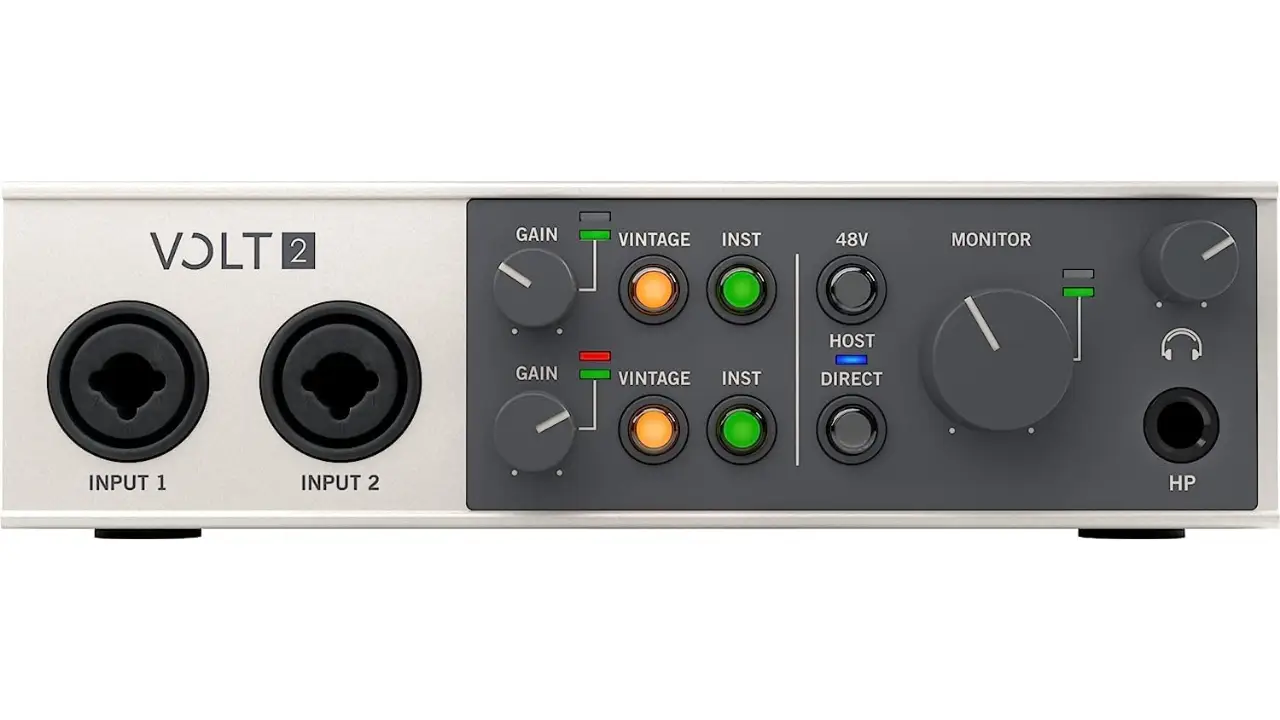

Ensuring that your audio devices are matched to the correct inputs is critical for safe signal transfer, as incorrect matches can lead to poor sound quality or even damage to your equipment. For example, connecting a microphone level signal to a line level device can produce very little sound due to the signal’s weakness, as incorrect matches can lead to poor sound quality or even damage to your equipment. For example, plugging a microphone into a line-level input will produce very little sound because the signal is too weak. Conversely, connecting a line-level source to a mic-level input can result in overly loud and distorted audio. It’s worth noting that some high-end mixers feature inputs and outputs that are switchable between mic and line levels, offering more flexibility in setup.

input-levels

The Importance of Knowing Your Levels

No one appreciates bad audio quality. That’s precisely why understanding the distinctions between mic and line level, and how signal processing gear can be used to combine multiple signals or adjust levels, is crucial. At first glance, these differences might appear trivial, but for those not in the know, they can lead to frustrating audio issues. The disparity in voltage produced by each level means that mixing them up when connecting your audio equipment can result in undesirable outcomes.

Avoiding Common Connection Mistakes

If you connect a microphone (which outputs mic level signals) to a line level input on a mixer, the result will be a signal so weak it’s nearly inaudible, highlighting the importance of recognizing mic and line level distinctions, the result will be a signal so weak it’s nearly inaudible. This occurs because the microphone does not produce enough voltage for the line level input. Conversely, connecting a line level source (a much stronger signal) to mic level inputs can lead to an overly loud and distorted signal due to the excess voltage.

Converting Mic Level to Line Level

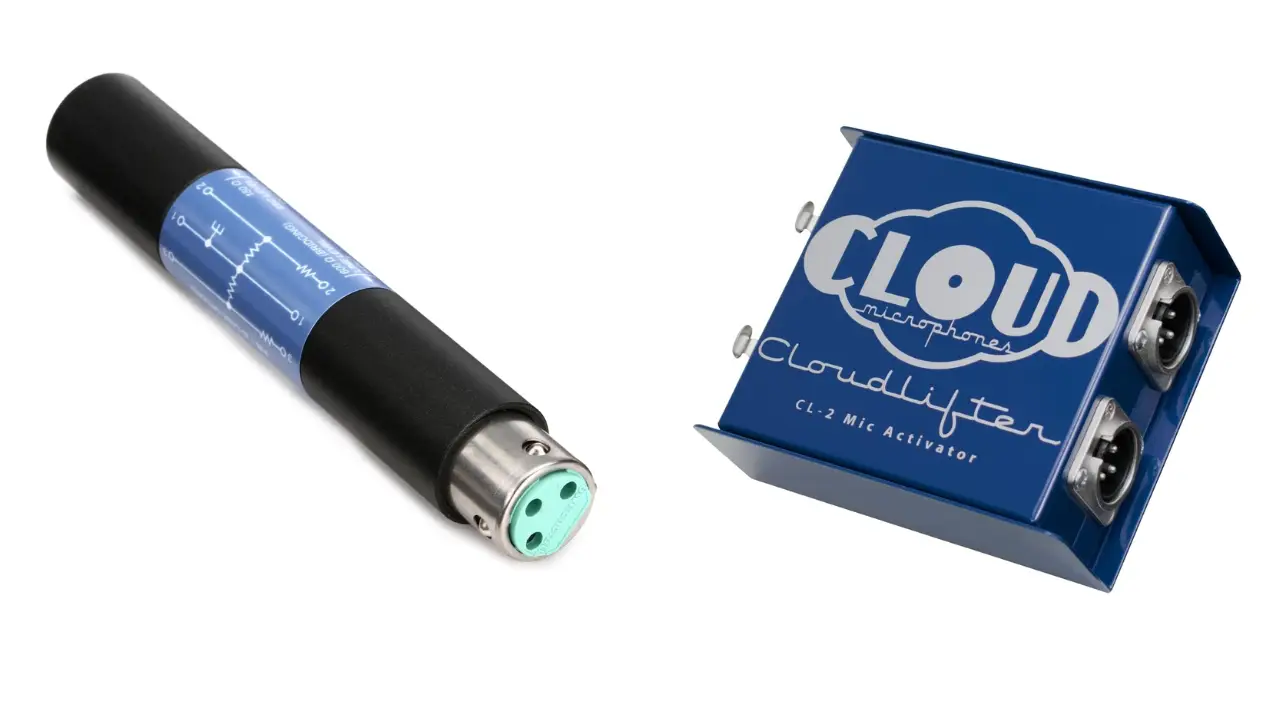

Sometimes, you might find yourself without the ideal tools for your audio setup. In situations where you have a mic level output but need a line level, there’s a convenient solution. Devices like the Cloudlifter CL-1 preamp are designed to boost microphone levels by up to +25dB, efficiently converting them to line level, which is essential for ensuring that the signal can be correctly processed and heard, efficiently converting them to line level. This type of tool is particularly beneficial for broadcasters who frequently deal with varying signal levels.

level-converters

Tips for Correct Audio Connections

Identifying Inputs and Outputs

A standard mic-level input is usually a female XLR connector, while line level switchable inputs and outputs, offering more flexibility in setup, often take the form of RCA jack, a 1/4″ phone jack, or a 3.5 mm phone jack, whereas line-level inputs often take the form of a RCA jack, a 1/4″ phone jack, or a 3.5 mm phone jack. It’s essential not to assume compatibility based solely on connectors fitting together; inputs are usually well marked to avoid confusion.

Adapting and Attenuating Signals

In scenarios where only a mic input is available on a device (like a digital recorder or computer), and you need to connect a line level source, you can manage the voltage difference with an attenuator or a DI (Direct Injection) box, which are readily available at most music stores. Some cables come with built-in resistors to achieve this voltage reduction.

Understanding Wireless Receiver Outputs

Keep in mind that different wireless receivers can have varying output levels. This is not only true for brands like Shure but also applies across the board with competitors. To ensure you’re matching levels correctly, consult the user guide of each wireless receiver to determine its output signal level. It’s worth noting that mic level outputs can differ by as much as 20 dB between different models and brands.

Conclusion

In conclusion, understanding the distinctions between mic level and line level is not just a matter of technical proficiency, but a fundamental aspect of ensuring high-quality audio in any setup. Whether you’re connecting a simple microphone to a mixer or integrating a complex array of audio sources into a professional sound system, knowing how to match the correct levels is crucial to avoiding distortion and achieving clear, undistorted sound. By familiarizing yourself with the tools and techniques for adapting and matching these levels—such as using preamps, DI boxes, and being mindful of connector types—you can navigate the challenges of audio connections with confidence. Remember, good sound starts with the right connection, and a little knowledge goes a long way in preventing common audio pitfalls.
