How to Connect a Powered Subwoofer to Passive Speakers?

Table of Contents

Last Updated on February 19, 2024 by Muisc Pro Editorial Team

Connecting a powered subwoofer to passive speakers enhances your sound system’s performance, creating a richer and more dynamic audio experience. This guide aims to simplify the process, outlining three primary methods to establish this connection. Before diving into the specifics, it’s crucial to understand the output you desire from your sound system. It’s also important to note that the active subwoofer’s built-in preamps are designed to amplify the subwoofer itself. Without an external amplifier, your passive speakers will not function. If you’re intrigued by the prospect of upgrading your audio setup, continue reading for a step-by-step guide on achieving this.

Enhancing Your Sound System

Setting up a sound system with a powered subwoofer and passive speakers may seem daunting at first, especially if you’re not technically inclined. However, this guide aims to demystify the process, making it accessible for everyone. It’s a common misconception that an active subwoofer alone can power passive speakers. In reality, to achieve the best sound quality and system performance, you need to integrate an external amplifier. This article will guide you through the necessary steps and considerations to connect your powered subwoofer to passive speakers effectively, ensuring a dynamic and enriched audio experience.

Understanding Your Equipment’s Input/Output Structure

Getting to Know Your Powered Subwoofer

At the heart of your powered subwoofer, you’ll find an array of XLR or XLR/TRS Combo connectors. These serve as the main conduits for signal flow, allowing the subwoofer to receive and send audio. A key feature of active subwoofers is the frequency crossover (often labeled as “X-Over”). This electronic network divides the full-range audio signal into separate bands (Highs, Mids, and Lows), enabling the subwoofer to focus on low frequencies while redirecting the Mid/High frequencies to the passive speakers. Utilizing the subwoofer’s built-in crossover simplifies the connection process by automatically handling frequency separation, ensuring that each speaker component receives the appropriate signal for its range.

Getting to Know Your Amplifier

When considering the second method of connection, understanding the input/output structure of your amplifier is crucial. Amplifiers that power passive speakers and feature line-outs allow for a direct connection to powered subwoofers. This setup maintains the existing speaker connections while adding the subwoofer to enhance the system’s low-end output. To implement this, locate the line-out connectors on your amplifier, usually marked as “Line Out,” “Link/Out,” or “Thru/Out,” and connect these to your subwoofer’s input. This method is ideal for enhancing sound systems in permanent setups without disrupting the existing configuration.

Understanding Your Connection Options

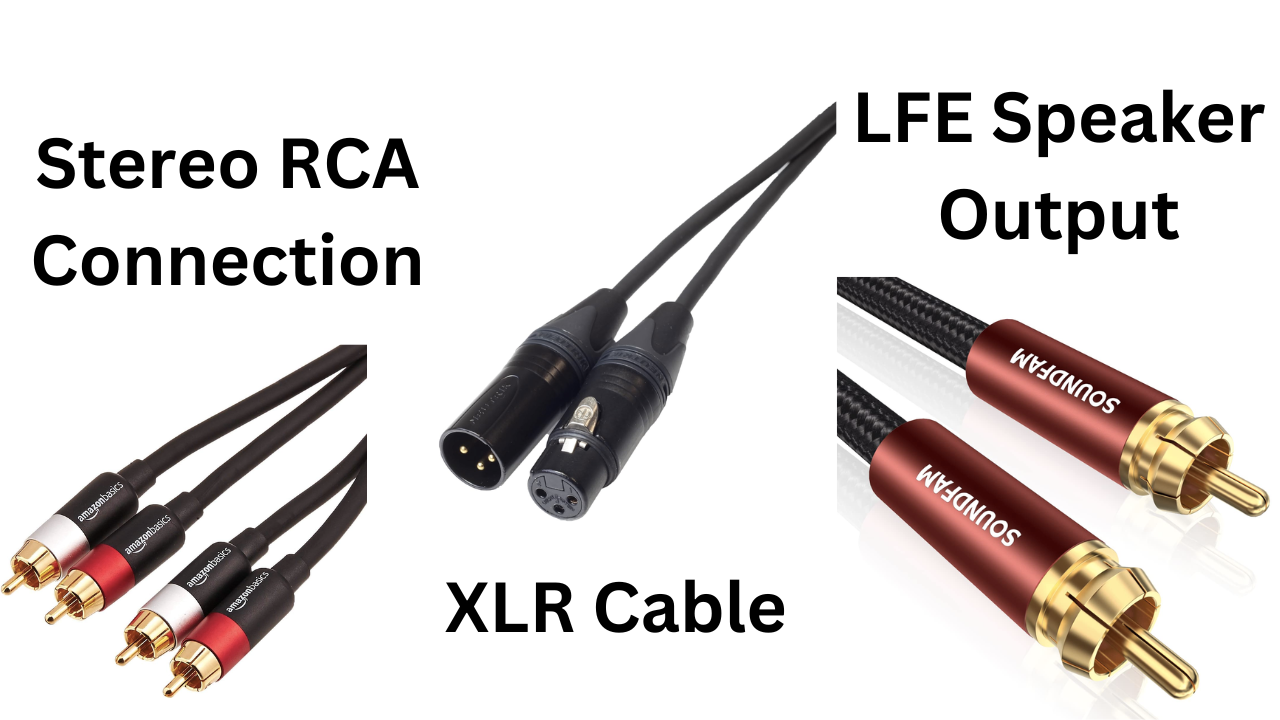

There are three main ways to connect a powered subwoofer to passive speakers: utilizing stereo RCA, low-frequency effects (LFE) speaker outputs, and external line return (XLR) cables. Each method offers a different approach to integrating your components into a cohesive system.


Stereo RCA Connections

The RCA connector, named after its developer, the Radio Corporation of America, is a common method for connecting audio and video components. You might recognize RCA cables as they often come in pairs or trios, with the pairs typically in red and white for audio, and the trio including a yellow plug for video. To connect using RCA cables, ensure your subwoofer has “Line In” jack sockets and your passive speakers have “Out” sockets. You’ll need to connect your passive speakers to an external amplifier using speaker wires, then link the subwoofer to the amplifier. Pay attention to the color coding—usually red and black—to ensure proper connections.

XLR Cables

XLR cables, which may also be recognized as 3.5mm jacks, offer an upgrade in sound quality over RCA connections. This advantage comes from XLR cables’ ability to carry a balanced audio signal, significantly reducing noise by filtering out interference. These cables have male and female ends with matching pins for corresponding connectors. Before opting for XLR cables, verify that your equipment supports XLR inputs and outputs. The setup process mirrors that of the RCA method, but with the superior sound quality of XLR cables.

LFE Speaker Output

The LFE (low-frequency effects) output option focuses on enhancing the bass component of your sound system. Although the connection process is similar to that of RCA and XLR, LFE utilizes single cables dedicated to bass frequencies. This method might not provide a balanced audio output but is available as an alternative if the other options are not viable.

Connecting Powered Subwoofers with Passive Speakers

Integrating a powered subwoofer with passive speakers can dramatically improve the quality and depth of sound for any audio system. This guide is designed to walk you through the process step by step, ensuring that you can achieve an optimal setup with minimal fuss. Whether you’re setting up a sound system for a live event or enhancing your home audio system, understanding the right cables and connection methods is crucial.

Two Simple Connection Methods

Method 1: Subwoofer Before the Amplifier

The first approach involves positioning the powered subwoofer before the amplifier in the signal chain. This means the audio signal from the mixer is directed to the powered subwoofer first. Here, the subwoofer processes the signal, isolates the low frequencies for its own output, and passes the remaining frequencies on to the amplifier. This method effectively utilizes the subwoofer’s built-in crossover to manage frequency distribution before amplification, ensuring that each component of your sound system operates within its optimal frequency range.

  1. Start by ensuring all your equipment is powered off to avoid any sudden loud noises that could damage your gear.
  2. Position the subwoofers at your venue and connect them to a power source.
  3. Use XLR or TRS cables to connect the mixer’s main outputs to the subwoofer’s inputs, choosing the cable type based on your subwoofer’s connector.
  4. From the subwoofer’s high-pass output, use another set of XLR cables to connect to the amplifier inputs that feed the passive speakers.
  5. Connect the passive speakers to the amplifier.
  6. Power on all equipment and adjust volumes and gains for a sound check.

Method 2: Amplifier Before the Subwoofer

The second method reverses the order, connecting the mixer to the amplifier first, then routing the audio signal from the amplifier’s line-out to the powered subwoofer. This setup requires the amplifier to have a dedicated line-out for each channel. If your amplifier lacks this feature, the first method is your go-to option. This method is particularly suitable for established sound systems in fixed locations, like churches or event halls, where altering the primary signal path is impractical.

  1. As with the first method, ensure all equipment is turned off before starting.
  2. Connect the passive speakers to the amplifier and then connect the mixer’s main outputs to the amplifier’s inputs.
  3. Place the subwoofers at the venue and power them up.
  4. Locate the amplifier’s “Line Out” or “Link/Out” and connect an XLR or TRS cable from each channel to the subwoofer’s inputs.
  5. Power on the equipment and adjust the volumes and gains for testing.

Important Safety Note: It is crucial never to connect the amplifier’s speaker outputs directly to the subwoofer’s input as this could cause immediate damage to both pieces of equipment. Always ensure the cables from the amplifier to the subwoofer are connected from the “Line Out,” “Link/Out,” or “Thru/Out” connectors. If your amplifier lacks these features, you’ll need to use the first method outlined above.

Essential Tips and Safety Precautions for Sound System Setup

When embarking on the journey of enhancing your sound system, it’s crucial to approach the setup process with safety and efficiency in mind. Even though many connections can be made on a do-it-yourself basis without significant risks, more complex setups with massive speakers might require the expertise of a seasoned technician.

Electrical Safety Measures

Safety should always be your top priority. Before starting, ensure all equipment is turned off and unplugged from the power source. This precaution protects both the technician and the audio equipment. Having a basic understanding of proper grounding techniques is beneficial, particularly for complex audio setups. Avoid setting up in wet areas, secure any extra wires or cables to prevent tripping hazards, and reduce wear and tear on your cables.

The Importance of High-Quality Speaker Wires and Cables

Opting for cheap, low-quality wires and cables might seem like a cost-saving measure but can jeopardize both your safety and the system’s audio quality. Inferior cables often fail to meet standard quality tests, leading to increased noise, interference, and a shorter lifespan due to inadequate metal stranding. Investing in high-quality cables ensures the longevity and reliability of your sound system.

Wrapping Up: Connecting Your Powered Subwoofer to Passive Speakers

Understanding that a powered subwoofer requires an external amplifier to effectively power passive speakers is crucial. With the right amplifier in place, you can choose from three main connection methods based on the available cables and connectors. This setup not only optimizes your sound system’s performance but also ensures a safer and more reliable operation. By following the guidelines and precautions outlined in this article, setting up your sound system can be a straightforward and rewarding process, even for those with minimal technical background.
