Navigating the vast world of audio cables can be a daunting task for musicians, audio engineers, and enthusiasts alike. With a plethora of options ranging from instrument cables to complex cable snakes, understanding the nuances of each type is crucial for optimizing your sound system’s performance. Whether you’re setting up a home studio, preparing for live performances, or simply looking to upgrade your current audio equipment, our comprehensive guide to buying the best audio cables will provide you with the knowledge you need to make informed decisions. From deciphering the differences between balanced and unbalanced cables to selecting the right connectors and adapters, this guide aims to demystify the process and ensure you choose cables that not only meet your technical requirements but also enhance the overall sound quality of your setup.
Understanding Audio Cable Types: Balanced vs. Unbalanced
When it comes to connecting your audio devices, understanding the difference between balanced and unbalanced cables is crucial. Balanced cables consist of three wires: a ground wire, a positive leg, and a negative leg. These cables carry the same audio signal in opposite polarities, effectively canceling out any noise picked up along the way. This phenomenon, known as “Common Mode Rejection,” makes balanced cables ideal for long-distance connections. Common examples of balanced cables include XLR and TRS, which are typically used to connect balanced devices, ensuring a clean and noise-free audio transmission.
On the other hand, unbalanced cables are simpler in design but more prone to noise interference. They are best used for shorter distances, preferably under 25 feet, to avoid any significant noise that may interfere with the audio signal. The simplicity of unbalanced cables makes them less suitable for long cable runs compared to their balanced counterparts.
Deciphering Common Cable Connectors
Navigating through the world of audio cables can be daunting with the plethora of connectors available. Each connector serves a specific purpose and understanding their differences is key to optimizing your audio setup.

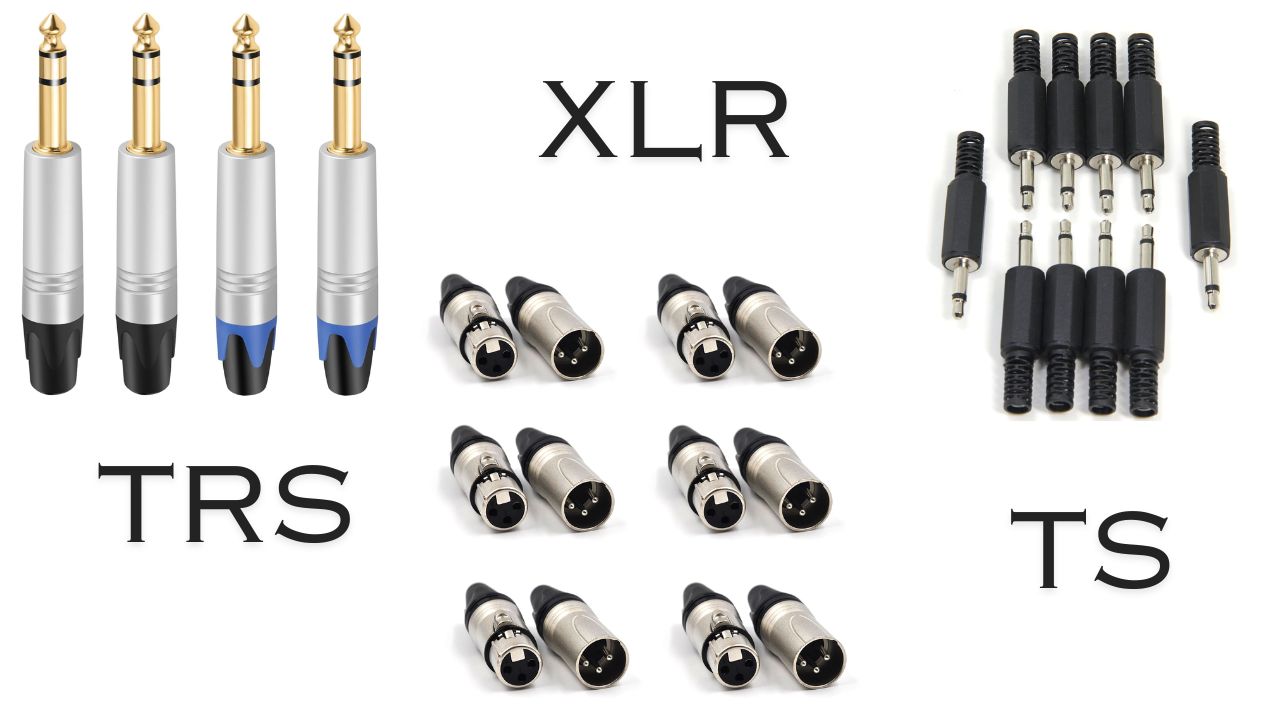

TRS Connectors
TRS stands for “Tip, Ring, Sleeve” and represents a type of connector that accommodates two conductors and a ground, making it suitable for balanced connections. TRS cables are versatile, used in various applications from connecting balanced equipment to transmitting stereo signals to headphones. Additionally, TRS connectors are found in Y cables for mixer insert jacks, allowing for both sending and receiving audio signals through a single cable.
XLR Connectors
XLR connectors are easily recognizable by their 3-pin configuration, facilitating the transmission of balanced microphone or line-level signals. In professional audio settings, XLR cables are the go-to choice for connecting microphones to mixers or linking various audio outputs to powered speakers, thanks to their reliability and noise resistance.
TS Connectors
TS connectors, or “Tip, Sleeve” connectors, are designed for unbalanced audio signals. Characterized by a single insulator ring, these connectors are commonly used for instruments like guitars or for line-level signals. Despite their simplicity, TS cables are foundational in music production and live performance settings.

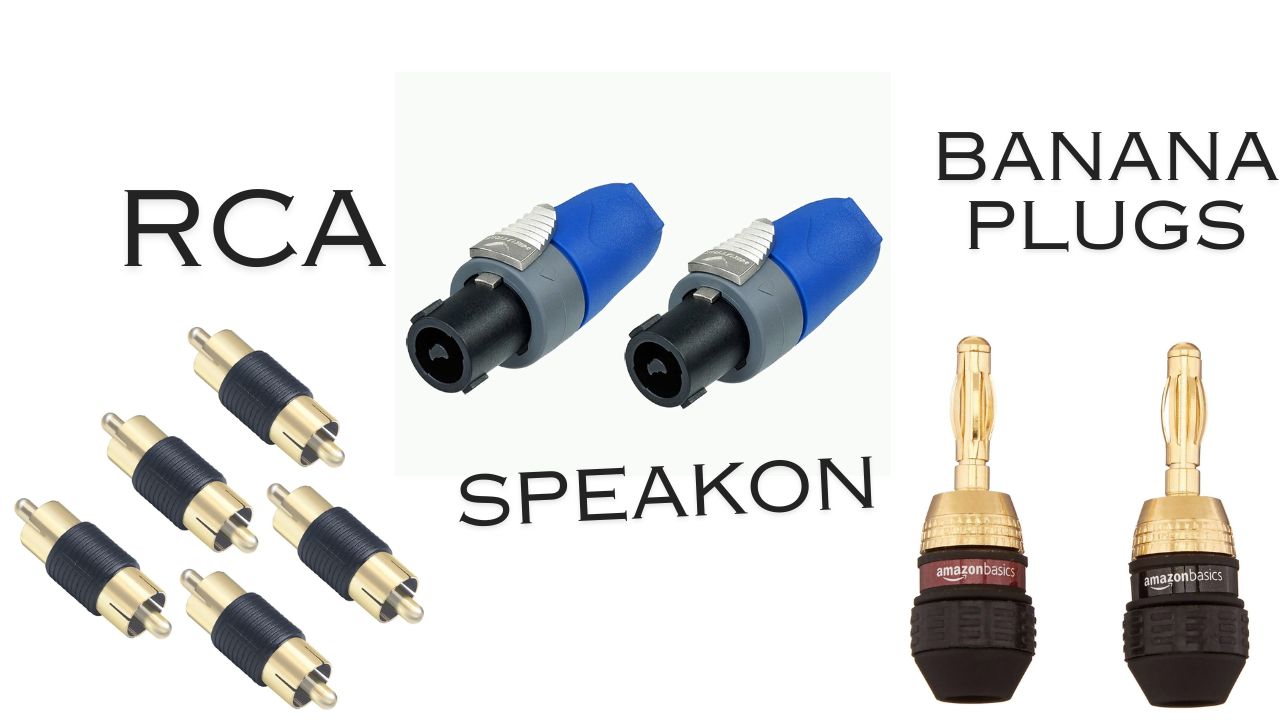

RCA Connectors
RCA connectors, also known as phono connectors, are prevalent in connecting consumer audio equipment. Whether it’s for tape decks, CD players, or digital audio connections like S/PDIF, RCA cables offer a reliable connection for stereo audio signals. Their widespread use in home audio systems underscores their importance in everyday audio setups.
SpeakON Connectors
speakON connectors are designed for secure connections between power amplifiers and speakers, including PA systems and stage monitors. Their locking mechanism ensures a stable connection, critical for live performance environments. Unlike TS connectors, speakON connectors are specifically made to handle high-power audio signals, making them a safer choice for connecting amplifiers to speakers.
Banana Plugs
Banana plugs provide a convenient way to connect speaker wires to amplifiers or to banana jacks on power amplifiers. These connectors simplify the process of setting up audio systems by allowing for a secure and straightforward connection. The use of a locking screw ensures the wire stays in place, offering a reliable link for transmitting audio signals to speakers.
Exploring Cable Shielding Techniques
Understanding the different types of cable shielding can significantly affect the quality and integrity of your audio signal. Cable shielding is essential in preventing electromagnetic interference (EMI) from corrupting your audio signals, and there are several types to consider, each with its unique benefits and applications.
Braided Shield
The braided shield consists of copper strands, known as “picks,” braided around the cable’s insulated center conductor. The coverage of a braided shield varies based on the angle, number of picks, and application rate, ranging from less than 50% to nearly 97%. This type of shielding is highly effective at maintaining signal integrity, even when the cable is flexed or bent, making it a popular choice for many audio applications.
Serve Shield
A serve shield, or spiral-wrapped shield, features a layer of copper strands wrapped around the cable’s center in a single direction. This design offers exceptional flexibility, causing minimal restriction to the cable’s movement. While it may not have the tensile strength of a braided shield, its flexibility makes it a preferred option in situations where cable maneuverability is crucial, such as in musical instrument applications.
Foil Shield
Foil shielding involves a thin layer of Mylar-backed aluminum foil in contact with a copper drain wire. Although it’s an inexpensive option, it lacks durability and flexibility, making it less suitable for applications involving frequent movement. The foil shield offers 100% coverage but is less effective in low-frequency scenarios due to aluminum’s higher transfer impedance compared to copper.
Audio Cable Connectors
In the realm of audio cables, connectors play a pivotal role in the setup of your audio equipment. Here’s a closer look at some of the most common connectors you might encounter.
Instrument Cables
Instrument cables are specifically designed to connect guitars, basses, keyboards, and other electronic instruments to amplifiers or preamps. These cables are optimized to carry the low-voltage signals produced by instruments and typically feature 1/4″ phone plug connectors. It’s crucial to note that not all XLR cables are created equal; some might be unbalanced cables suitable for specific applications. When selecting the length of an instrument cable, consider that longer cables may increase the risk of interference, so it’s best to choose the shortest length that comfortably reaches your equipment.
Patch Cables
Patch cables, including MIDI cables and USB cables, are versatile connectors used to link various audio components within a PA system, recording setup, or effects pedal chain. Whether for connecting gear in a studio or chaining effects pedals, patch cables can be unbalanced or balanced, depending on the requirement of the audio path they are integrating. Digital cables, such as USB cables, offer a direct way to connect digital music equipment, providing high-quality audio signal transmission.
Microphone Cables
Microphone cables, including XLR microphone cables, are shielded, balanced cables designed to connect microphones to sound systems. These cables serve various purposes, such as linking mixing boards to powered speakers, facilitating D.I. connections, or controlling lighting effects via DMX. The choice between balanced and unbalanced cable options depends on the distance and specific needs of the audio equipment.
Speaker Cables
Speaker cables, designed to carry high voltage signals for your portable pa systems, are unbalanced with heavier gauge conductor wires than those used for instruments, patch, or microphone cables. The thick gauge of speaker cables is crucial for efficiently transmitting powerful signals without loss or degradation. When considering speaker cable options, it’s important to ensure they are connected directly to a power source or power amplifier to maintain the best sound quality.
Daisy Chain Cables
Daisy chain cables are a boon for guitarists and bassists who use multiple effects pedals. These cables simplify the connection and power supply to several pedals, helping to maintain a neat and functional pedalboard. Available in various configurations, daisy chain cables are essential for ensuring all effects in the signal chain are powered correctly and ready to perform.
Understanding Optical, Digital, and Analog Cable Technologies
In the complex world of audio cables, distinguishing between different types and their uses is crucial for achieving the best sound quality in your setup. From optical to digital and analog cables, each type serves a specific function and offers unique benefits. Active speakers and passive speakers may require different audio cable types, including speaker cables and USB cables, to connect with other components, such as a CD player or mixing console, highlighting the importance of choosing the right cables to complement your audio equipment in a home studio.

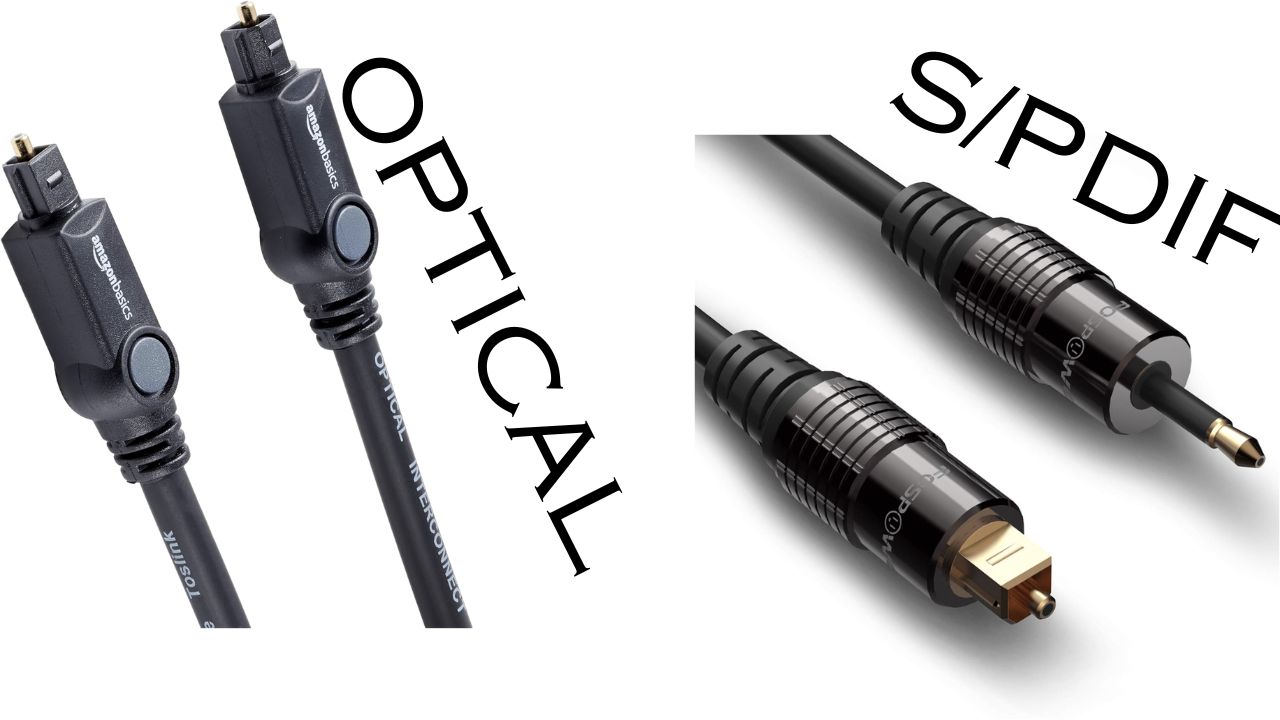

Optical Cables
Optical cables stand out for their ability to transmit digital audio signals as pulses of light, rendering them nearly impervious to electromagnetic interference. While they are capable of delivering surround sound, they fall short in handling high-resolution audio formats found on Blu-Ray discs. A notable standard in optical audio transfer is the ADAT (Alesis Digital Audio Tape) Optical Interface, or ADAT Lightpipe, which allows for the transmission of eight channels of digital audio through a specialized cable equipped with an Alesis-specific connector.
S/PDIF
The Sony/Philips Digital Interface Format (S/PDIF) is designed for transmitting audio over relatively short distances, utilizing either optical or coaxial cables. Although coaxial cables offer a quality comparable to optical cables, they are less commonly used and employ RCA connectors. It’s important to note that these coaxial cables are distinct from analog RCA cables, emphasizing the need for correct cable selection in your audio setup.

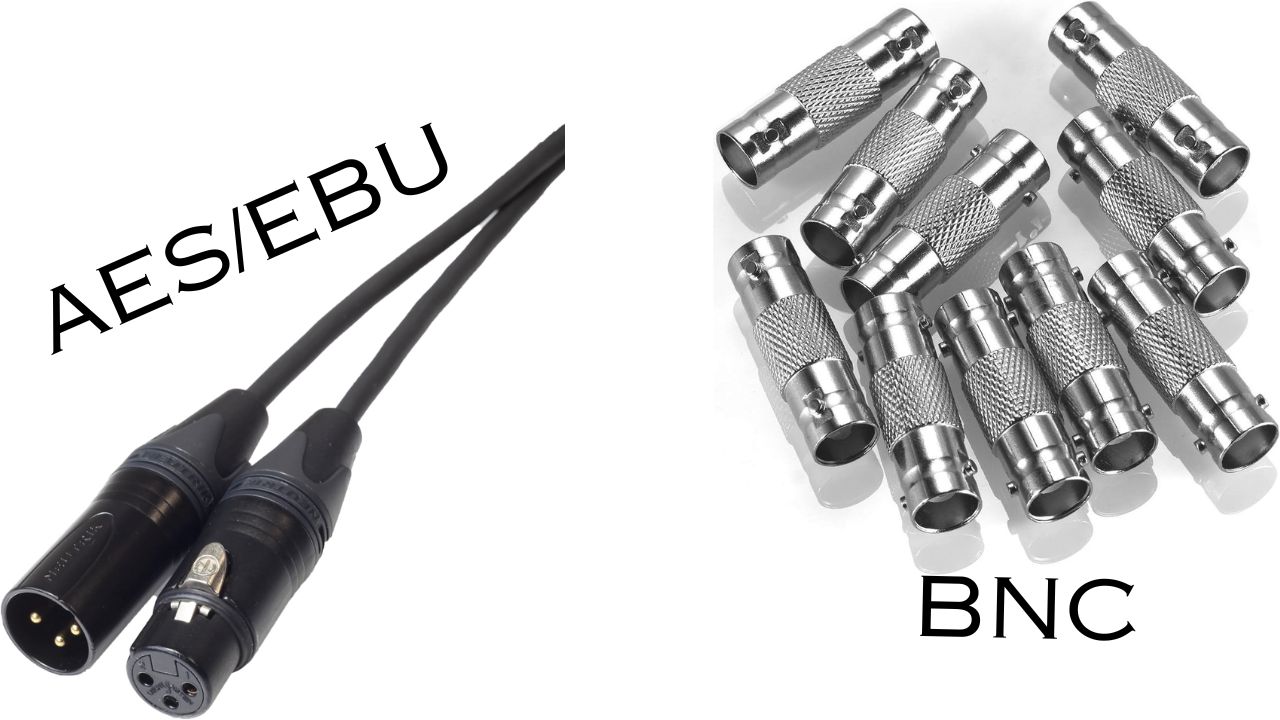

AES/EBU
AES/EBU, officially known as AES3, uses three-conductor cables to transfer two channels of digital audio, typically through XLR connectors. Originating from the collaboration between the Audio Engineering Society (AES) and the European Broadcasting Union (EBU), this protocol forms the basis of the consumer-friendly S/PDIF format. However, due to differences in resistance, an XLR microphone cable cannot substitute for an AES/EBU cable, underlining the importance of using the correct cables for specific applications.
BNC
BNC (Bayonet Neill-Concelman) connectors, initially designed for military applications, are now widely used in audio and video testing equipment. These bayonet-style connectors are compatible with miniature and subminiature coaxial cables, making them suitable for radio-frequency equipment and video gear due to their reliable connection and ease of use.
Evaluating Cable Quality for Optimal Performance
The primary function of an audio cable is to convey an electrical signal from one component to another while minimizing signal degradation and noise introduction. While some cables boast audiophile-quality features designed to maintain pristine signal integrity, not all musicians require such high levels of performance for stage use. However, opting for high-quality cables can significantly improve sound quality, potentially enhancing your performance.
Studio vs. Stage
For studio setups, investing in audiophile-level cable quality becomes more critical. The demand for noise-free signal transmission is paramount in recording, mixing, and mastering, directly impacting the final sound quality. On stage, while the utmost cable quality may not be necessary, selecting durable, high-quality cables still matters to ensure reliable performance.
Features That Matter: Beyond Gold Plating and Oxygen-Free Copper
While features like gold-plated connectors and oxygen-free copper wire are often touted for their benefits, they may not be as crucial as you think. Gold plating can reduce resistance but may wear out faster than nickel-plating, especially on frequently used connectors. Oxygen-free wire offers lower resistance, but choosing cables with a larger gauge may be more beneficial.
The focus should instead be on flexibility, durability, and the quality of hardware and connections. Features such as epoxy potted or hot glue connectors and heat-shrunk plastic sleeves can significantly extend the life of cables, especially instrument cables that face frequent plugging, unplugging, and physical stress. Selecting cables of the appropriate length is also key; longer cables are more prone to noise, so it’s best to choose the shortest length necessary for your setup.
Essential Accessories for Your Audio Setup
When building or upgrading your sound system, whether for live performances or studio work, incorporating the right accessories can significantly enhance functionality and ease of use. Here’s a guide to some indispensable cable-related gear you should consider adding to your setup.
Cable Adapters
In the ever-evolving landscape of audio technology, you’ll frequently find yourself needing to connect devices with incompatible jacks. Cable adapters are the solution to this common problem, offering a bridge between various types of connections. Whether you’re integrating new equipment into your stage setup or updating your studio, there’s an adapter for nearly every scenario. If you’re unsure which adapter is right for your needs, seeking advice from a knowledgeable source like a Musician’s Friend Gear Head can ensure you make the right choice.
Cable Testers
No matter the quality of your cables, they are bound to fail at some point, particularly with frequent use and transport. Cable testers are invaluable tools for maintaining the integrity of your sound system. They allow you to verify that your cables are transmitting signals correctly and help identify any issues quickly. Whether you’re troubleshooting a system problem or simply conducting regular maintenance, a cable tester is a crucial piece of equipment for anyone relying on audio gear.
Cable Snakes
Cable snakes are an efficient way to manage and organize multiple connections within your audio setup. These bundled sets of cables can include microphone, patch, or speaker cables and are designed to facilitate a neat and efficient connection between the stage and audio equipment like mixers and PA systems. When choosing a snake, consider the length and types of connections you need. For studio environments, audio snakes bundle the necessary cables for connecting various studio components, streamlining the setup process and reducing clutter. Whether for live or studio settings, cable snakes are essential for keeping your connections organized and accessible.
Conclusion
In conclusion, selecting the right audio cables for your setup is not just about finding the right lengths or the most affordable options; it’s about understanding the specific needs of your equipment and the environments in which they will be used. From the basic instrument and microphone cables to more complex optical and digital connections, each choice plays a crucial role in the quality and reliability of your audio output. Armed with the knowledge from this guide, you’re now better equipped to navigate the world of audio cables, ensuring that your connections are not only secure but optimized for the best sound quality possible. Remember, investing in high-quality cables and accessories is investing in the longevity and efficiency of your audio system, enabling you to focus on what truly matters—creating and delivering outstanding audio experiences.
