Intro to Live Sound Equipment: Mastering Monitors and Sounds

Table of Contents

Last Updated on February 15, 2024 by Muisc Pro Editorial Team

Embarking on the journey into live sound can initially seem daunting due to the wealth of information and equipment involved. However, this guide aims to demystify the process, laying a solid foundation for beginners and offering a plethora of resources for further exploration. Whether you’re setting up a PA for a coffee shop gig or installing a comprehensive system for a large venue, understanding the basics is crucial.

PA Systems

Before diving deep into the technical aspects, it’s essential to grasp the different types of Public Address (PA) systems available and their respective applications. This knowledge will guide your decisions, whether you’re performing solo or planning an event for a large audience.

  • Personal PA Systems: Designed for solo artists or duos, personal PA systems offer simplicity and portability. These systems range from straightforward setups with a single powered speaker and a basic mixer to more sophisticated arrangements featuring mini line-array systems, subwoofers, and advanced processing capabilities. Ideal for intimate performances, personal PAs ensure your sound is heard clearly and distinctly.
  • All-in-One Systems: All-in-one PA systems take the concept of the personal PA and enhance it for greater power and coverage, making them suitable for larger rooms or outdoor areas. These systems typically include multiple speakers and a detachable mixer, often presented in a package complete with speaker stands for easy mobility. They represent an excellent choice for performers seeking a balance between simplicity and the ability to entertain larger crowds.
  • Standard PA Systems: When it comes to outfitting venues ranging from small clubs to large arenas, standard PA systems are the go-to choice. These comprehensive setups include mixers, speakers, monitors, and sometimes additional outboard gear, offering the flexibility and power needed to deliver high-quality sound across various event types and sizes.

How PA Systems Operate

The journey of sound through a PA system begins with microphones or electric instruments capturing audio signals. These signals are then transmitted via mic cables to a mixer, where a sound engineer adjusts volume, tone, effects, and other parameters to blend each input into a cohesive mix. This mixed audio is amplified through an amplifier and finally delivered to the audience and performers through speakers.

The Roles and Types of PA Speakers

Audience and Performer Speakers

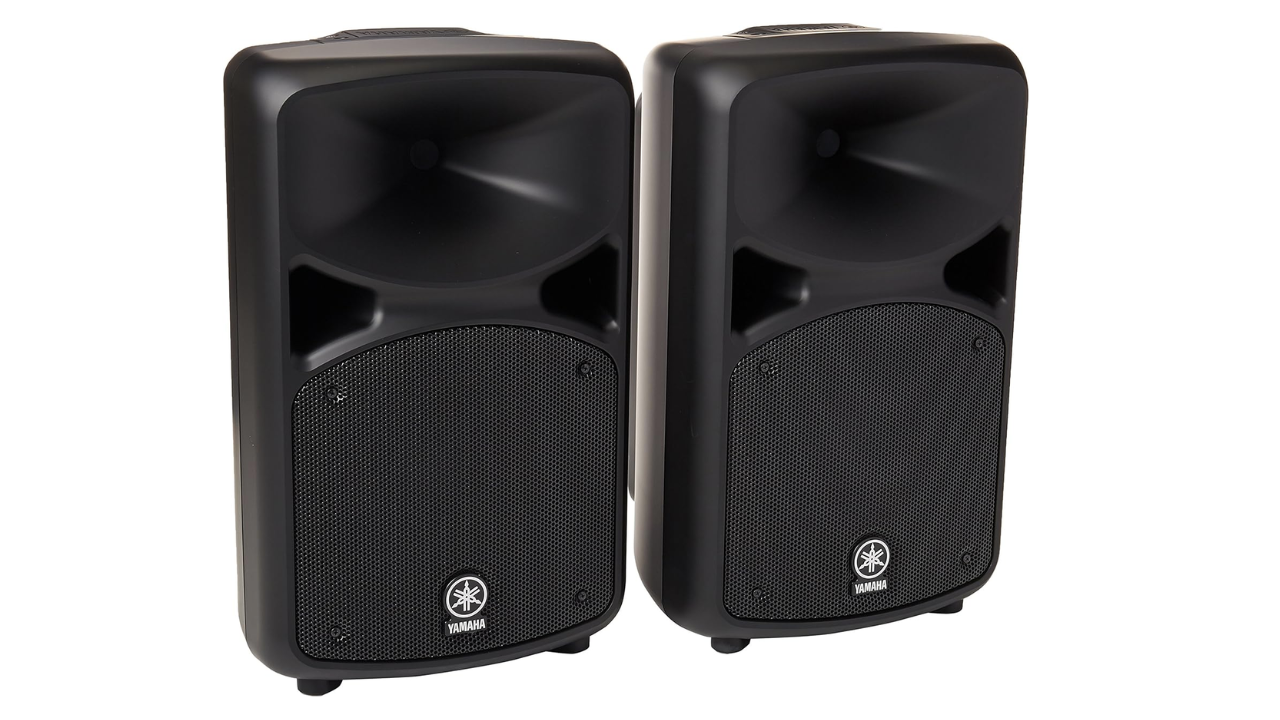

In any live sound setup, PA speakers serve two primary functions: mains for the audience and monitors for the performers. Mains are directed towards the audience to project the performance, while monitors face the performers, allowing them to hear themselves and the mix as needed.

pa-speakers

Powered vs. Passive Speakers

PA speakers come in two categories: powered (active) and passive. Powered speakers have built-in amplification, eliminating the need to match them with external amps. This convenience makes them ideal for mobile setups and ease of use. On the other hand, passive speakers require external amplification, making them suitable for permanent installations where they can be set up without needing regular power cycling, such as ceiling mounts in venues.

Key Components of a PA System

  • Main Speakers: Main speakers are the primary source of sound projection to the audience in a live sound setup. Typically arranged in pairs or multiples thereof on either side of the stage, they ensure that the performance is audibly clear across the venue.
  • Monitors: Monitors provide the performers with the ability to hear themselves or the mix, essential for maintaining pitch, timing, and overall performance cohesion. In addition to traditional stage monitors, in-ear monitoring systems are increasingly popular for their ability to reduce stage volume and provide a personalized mix to each performer.
  • Subwoofers: For the low-end depth in live sound, subwoofers are used to amplify bass frequencies, enhancing the impact of kick drums, bass guitars, and synthesized bass lines. Most subwoofers are powered and are typically placed on the stage floor beneath the main speakers.

Monitoring System

Monitoring systems are vital for live performances, enabling performers to hear themselves and the mix clearly on stage. These systems fall into two main categories: traditional stage monitors and personal monitors, each with its distinct advantages and challenges.

Stage Monitors

Stage monitors, often referred to as wedges due to their triangular shape, are placed at the front of the stage and angled towards the performers. These monitors can vary in size and power, and some PA speakers are designed with angled sides to serve dual purposes as monitors. The simplicity and cost-effectiveness of stage monitors make them a popular choice. However, they can also be the source of feedback issues and contribute to a cluttered and noisy stage environment, potentially complicating the mix for the live sound engineer.

Personal Monitoring Systems

Personal monitors provide a tailored listening experience for performers, typically through in-ear monitors (IEMs) connected to a receiver. This setup significantly reduces stage volume, allows individual control over levels and mixes, and minimizes the physical equipment required on stage. While offering clear benefits in sound management and portability, personal monitoring systems are more complex to set up and depend heavily on the reliability of each component in the sound system, which can introduce challenges in live situations.

Choosing Between Stage and Personal Monitors

Deciding between stage and personal monitors depends on your specific needs, considering factors such as venue size, performance type, and budget. While personal monitors offer distinct advantages in sound control and reduced stage clutter, traditional wedges might be preferred for their simplicity and lower initial setup complexity in a PA system.

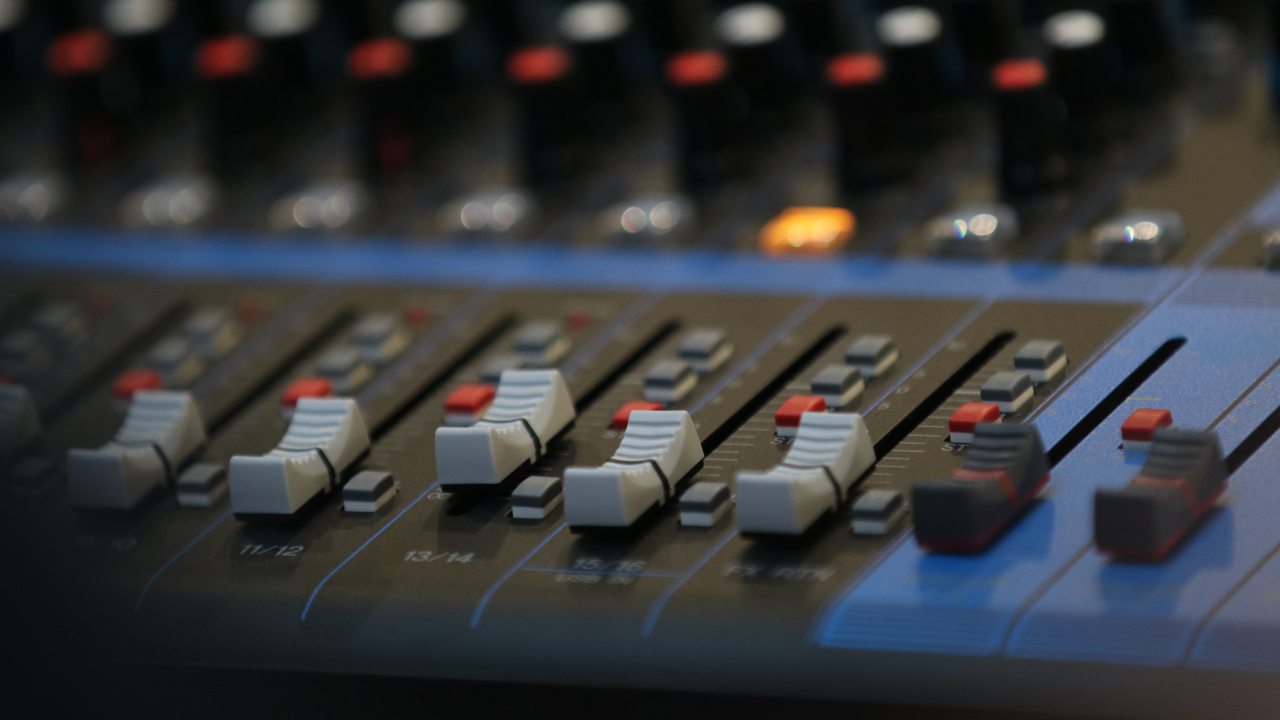

The Mixing Console

mixer-controls

The mixing desk, whether an analog model or a state-of-the-art digital mixer, serves as the central hub for managing a live sound system. Its primary function is to collect multiple audio inputs, blend them together, and then distribute the combined signal to its destination, be it speakers, recording devices, or broadcast systems. Powered PA speakers and portable PA systems often integrate power amps or power amplifiers within their design, eliminating the need for a separate power source and simplifying the setup for performers who bring their own mixing desk. Understanding how a mixer operates can simplify the seemingly complex world of live sound, whether using dynamic mics or connecting instruments directly.

Key Components of a Mixer

To fully grasp how a mixing console functions, it’s essential to become familiar with its core components:

  • Channels: Each channel represents the pathway an audio signal follows through the mixer, ultimately reaching the outputs and buses, like the master bus, which sends the signal to your amplifiers and speakers.
  • Preamplifiers: Found on each channel, preamplifiers are critical for adjusting the level of incoming signals, especially for microphones. This stage is pivotal in determining how the signal will be processed and mixed with others.
  • Inserts: These allow you to integrate external gear directly with your input channels, offering the flexibility to modify the signal with effects or additional processing before it hits the main mix.
  • EQ and Processing: Most mixers include EQ controls for each channel, enabling you to shape the tone right after the preamp stage. Digital mixers may offer additional processing options like compression and gating.
  • Auxiliary Sends: Primarily used in live settings for monitor mixes, aux sends allow you to route a portion of the signal from each channel to separate outputs, useful for onstage monitors or external effects.
  • Channel Faders: The primary mixing tools, channel faders adjust the volume of each channel, typically reducing rather than boosting the signal.
  • Master Fader: Controls the overall output volume of the mixer, acting as the final volume adjustment before the sound reaches your audience.
  • Group Faders: For managing multiple channels as a single unit, such as a drum set or a choir, allowing for easier volume adjustments for similar sound sources.
  • Master Section: Present on more sophisticated mixers, this section offers comprehensive control over the mixer’s capabilities, including effects, overall mix compression, and aux return levels.

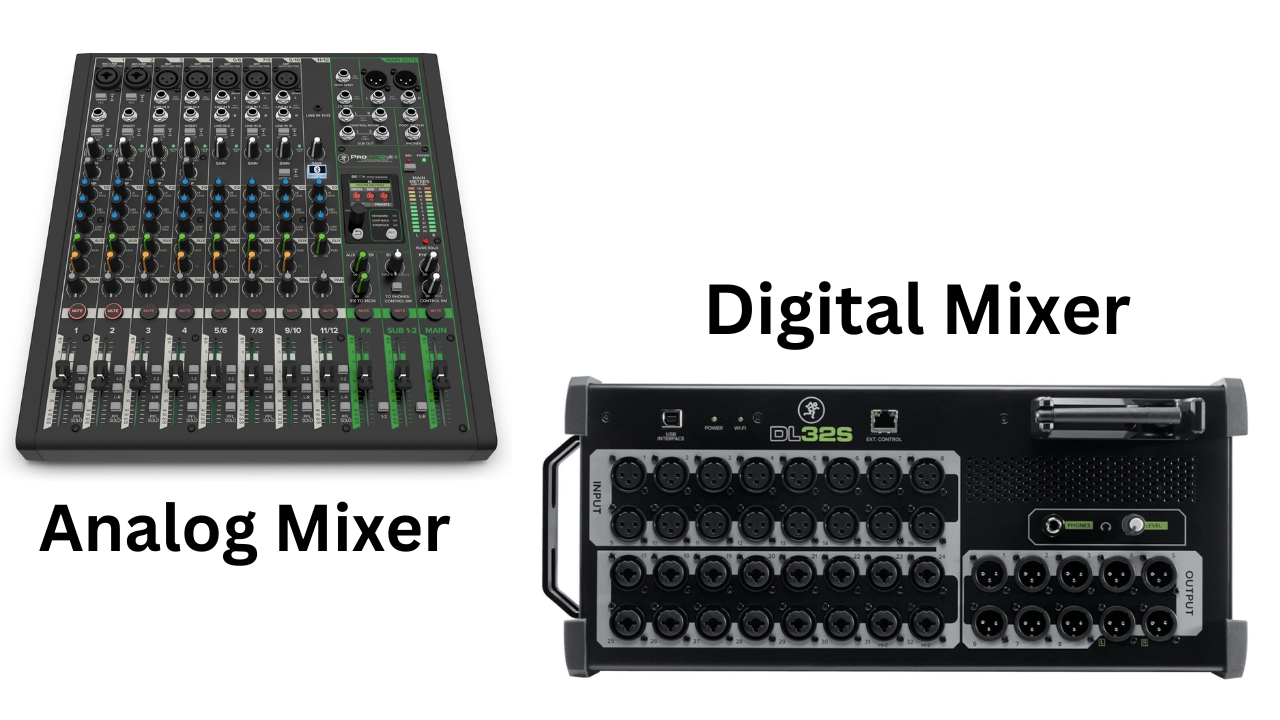

Analog vs. Digital Mixers

analog-and-digital-mixer

Mixers fall into two broad categories: analog and digital, each with distinct characteristics and advantages.

  • Inputs: Analog mixers directly link inputs to channels, whereas digital mixers can handle many more inputs than the number of visible channels suggests.
  • Channels: Analog mixers display all channels and controls simultaneously, while digital mixers can assign multiple channels to a single fader, with inputs and channels often being unrelated.
  • Channel Processing: Analog channels typically feature a straightforward EQ, visible on each channel. Digital mixers offer a broader range of processing options, though adjustments are made one channel at a time.
  • Routing: Analog mixers are limited by physical connections, with all routing options visible. Digital mixers boast flexible routing through the master section, allowing for complex setups not immediately visible on the surface.

Understanding these components and differences is crucial for anyone involved in live sound, as it influences the choice of mixer based on the specific needs of the performance or venue. Whether you opt for the tactile familiarity of an analog board or the versatility of a digital console, mastering your mixer’s capabilities is key to achieving a balanced and dynamic live sound.

Microphones and Accessories

Microphones

Dynamic microphones are the workhorses of live sound, prized for their durability and versatility. The Shure SM58, for instance, is a legendary vocal microphone, while other models are designed specifically for capturing the nuances of various instruments. Wireless and lavalier microphones offer flexibility for active performers and speakers, providing freedom of movement without sacrificing audio quality.

PA System Accessories

To connect and operate a PA system effectively, several accessories are indispensable. Cables of appropriate types and lengths ensure that all components are connected without excess clutter or risk of disconnection. Cable snakes simplify connectivity for setups with multiple microphones, leading to a cleaner stage and more efficient setup. Direct boxes allow for direct connection of instruments to the PA, offering a cleaner sound or reducing stage volume. Mic and speaker stands, AC power conditioning, and a variety of tools such as extension cords, tape, and a flashlight are essential for setup, maintenance, and troubleshooting.

Understanding these components and their roles within a PA system is crucial for anyone involved in live sound production. From selecting the right type of speakers to ensuring all devices are properly connected and powered, each element plays a vital role in delivering a clear and impactful audio experience to both performers and audiences alike.

Signal Flow and Signal Paths

One of the foundational concepts in live sound is understanding signal flow, which refers to the path audio takes from its source to the audience. This path typically includes several key components:

Talent > Microphone > Mic cable > Mixer > Amplifiers > Speakers > Audience

Each element in this chain plays a crucial role in shaping the sound that ultimately reaches the listener. Signal flow can become more complex with the addition of outboard gear, but the basic premise remains the same. If you encounter issues with your sound, tracing the signal path backward from the audience to the source can help identify and resolve problems efficiently.

Gain Staging

Gain staging is a fundamental concept in live sound that revolves around the process of amplifying a signal at various points in your audio signal path. It involves every component in your system that can modify the volume of your signal, including faders on your mixing board, EQ adjustments, and the input and output levels of any external equipment. Essentially, every adjustment you make to your signal level, whether it’s an increase or decrease, is considered a gain stage.

The key to effective gain staging is to ensure that you amplify your signal judiciously. Amplifying a signal too much can introduce unwanted noise into your system, as each amplifier adds its own noise to the signal in addition to amplifying the noise that’s already there. To maintain a clean and clear sound, it’s advisable to aim for a significant gain boost early in the signal path, such as at your preamp or directly from your instrument, and then adjust levels downwards as needed until the signal reaches your amplifiers. This approach helps to minimize noise and maintain the integrity of your audio.

Feedback in Live Sound

Feedback, the piercing loop of sound caused by a signal from the speakers feeding back into the microphones, is a common challenge in live sound. However, with careful setup and preventive measures, feedback can be largely avoided.

Strategies to Prevent Feedback

Proper speaker placement is crucial; ensure main PA speakers are in front of the performers to prevent their microphones from picking up amplified sound. Orient microphones away from monitor wedges to reduce monitor feedback. Using microphones with tight cardioid patterns helps isolate sound sources, minimizing the pickup of ambient noise and feedback potential. Employing in-ear monitors can also significantly reduce the likelihood of feedback by eliminating the need for loud stage monitors and allowing for a lower overall volume in the venue.

Techniques for Managing Feedback

When feedback occurs, identifying and mitigating it quickly is key. “Ringing out the room” involves using a graphic EQ to incrementally increase volume until feedback occurs, then identifying and reducing the specific frequencies causing feedback. This process helps tailor the sound system to the acoustics of the venue, reducing feedback potential without overly compromising sound quality.

Feedback Suppressors

Feedback suppressors automate the process of identifying and reducing feedback frequencies. These devices, or integrated software within sound systems, continuously monitor the sound and apply notches to specific frequencies where feedback is detected. While convenient, relying solely on feedback suppressors can lead to complacency in sound setup and management, potentially masking underlying issues that could be addressed through better system configuration and tuning.

Conclusion

Monitoring and feedback management are critical components of live sound engineering. Whether opting for traditional stage monitors or personal in-ear systems, understanding the advantages and limitations of each can help in crafting the best live sound experience. Feedback, while a common challenge, can be effectively managed through careful setup, sound system tuning, and, when necessary, the use of feedback suppressors. The goal is to deliver a clear, feedback-free performance that allows musicians to connect with their audience without distraction.
