How to Test Speaker Wire Polarity: Easy and Effective Method

Table of Contents

Last Updated on March 22, 2024 by Muisc Pro Editorial Team

In this article, we will explore the concept of speaker wire polarity, its significance, and the consequences of incorrect wiring. Understanding how to test and ensure the correct polarity in your speaker setup can prevent potential issues and optimize your audio system’s performance.

What is Speaker Polarity?

Speaker polarity refers to the direction in which the speakers are connected to the amplifier. For a speaker to operate correctly, its positive terminal should be connected to the positive terminal of the amplifier, and similarly, the negative terminals should be connected to each other. This setup ensures that the speaker moves in the correct direction, producing sound waves as intended. Incorrect connections can result in reverse polarity, affecting the speaker’s performance.

How a Speaker Works

To grasp the importance of speaker polarity, it’s essential to understand how speakers function. A speaker converts electrical energy into mechanical energy, causing its diaphragm to vibrate. These vibrations displace air molecules, creating sound waves. The movement of the speaker’s diaphragm, forwards and backwards, is determined by the electrical signals it receives, which are influenced by the speaker wire polarity.

Polarity of an Audio Wave

An audio wave consists of alternating positive and negative pressure changes. Observing a sound wave on a graph, you’ll notice it oscillating around a central line representing the ambient air pressure. The movement above the line indicates positive pressure changes, while movement below signifies negative changes. Reversing speaker wire polarity essentially inverts these pressure changes, altering the sound wave’s characteristics.

Constructive & Destructive Interference

The concept of interference illustrates the effects of speaker polarity on sound quality. When two identical sound waves of the same polarity meet, they amplify each other, a phenomenon known as constructive interference. Conversely, if these waves have opposite polarities, they cancel out, leading to silence or reduced sound levels, demonstrating destructive interference. This principle highlights the potential impact of reversed speaker polarity on audio clarity and volume.

What Happens When a Speaker’s Polarity is Inverted?

Inverting a speaker’s polarity causes the diaphragm to move in the opposite direction of what the audio signal intends. This reversal can lead to a mismatch between the sound produced by the speakers and the original recording. While the overall effect on sound quality may vary, it can potentially result in less accurate sound reproduction, emphasizing the importance of correct speaker wiring.

Can Speaker Polarity Affect Sound Quality?

The impact of speaker polarity on sound quality can vary significantly depending on the setup and the specific situation.

Reversed Polarity with One Speaker

When using a single speaker, the effects of reversed polarity might not be noticeable. Audio signals consist of alternating electrical currents that correspond to pressure fluctuations in sound waves. Even if the polarity is reversed, the alternating nature of these signals means that the audio output remains virtually unchanged to the human ear. This phenomenon explains why a single speaker with inverted polarity does not typically result in an audible difference in sound quality.

Reversed Polarity with Multiple Speakers

The scenario changes when multiple speakers are involved. If all speakers are wired consistently, whether with correct or reversed polarity, there’s unlikely to be a noticeable impact on sound. The real issue arises when there’s a mix of correct and reversed polarities among speakers. This can lead to significant discrepancies in sound output, particularly in stereo setups or arrays of speakers used in live sound reinforcement. Such inconsistencies can distort the audio experience, emphasizing the importance of uniform wiring practices.

Can Incorrect Speaker Polarity Damage Speakers?

A common concern is whether wiring speakers with reversed polarity can cause damage to the speakers or the amplifier. Fortunately, the risk of physical damage is minimal. The electrical signals sent to a speaker with inverted polarity are not inherently harmful; they simply cause the speaker to operate out of sync with its intended polarity. While this won’t damage your equipment, it can lead to suboptimal sound quality when mixed with correctly wired speakers. To avoid these acoustic mismatches, maintaining standard wiring practices is advisable.

For situations where polarity might have been inverted, whether in a single speaker or across multiple units, there are practical solutions. Modern audio mixers and amplifiers often feature digital signal processing (DSP) capabilities, allowing for easy adjustment of speaker polarity. In cases where hardware does not support such adjustments, polarity reversal adapters can be used to correct the wiring without the need for physical adjustments to the speaker terminals.

How to Ensure Correct Speaker Wire Polarity

Ensuring your speakers are wired correctly to your amplifier is crucial for achieving the best sound quality. Incorrect polarity might not be noticeable if all speakers are wired the same, but it’s always best practice to ensure each speaker is correctly connected. Here’s how you can test and confirm speaker wire polarity, regardless of your setup.

  • With Speaker Wire Labels: If your speaker wires are labeled with plus and minus symbols or are color-coded, typically red for positive (+) and black for negative (-), the process is straightforward. Simply connect the red (or +) terminal on the amplifier to the red (or +) terminal on the speaker. Similarly, connect the black (or -) terminal on the amplifier to the black (or -) terminal on the speaker. This method ensures that the polarity is correct and your system is set up for optimal sound reproduction.
  • Without Speaker Wire Labels: In cases where wires are not labeled, such as when cables have been run through walls or in car speaker installations, you’ll need to determine the correct polarity before making connections.

Testing for Correct Speaker Polarity

Ensuring your speakers are correctly wired is crucial for optimal sound quality. Various methods, including specialized polarity testing tools, can help verify that your speakers are properly connected, preventing the issues associated with reverse polarity.

Test Speaker Polarity with a Speaker Tester

speaker-tester

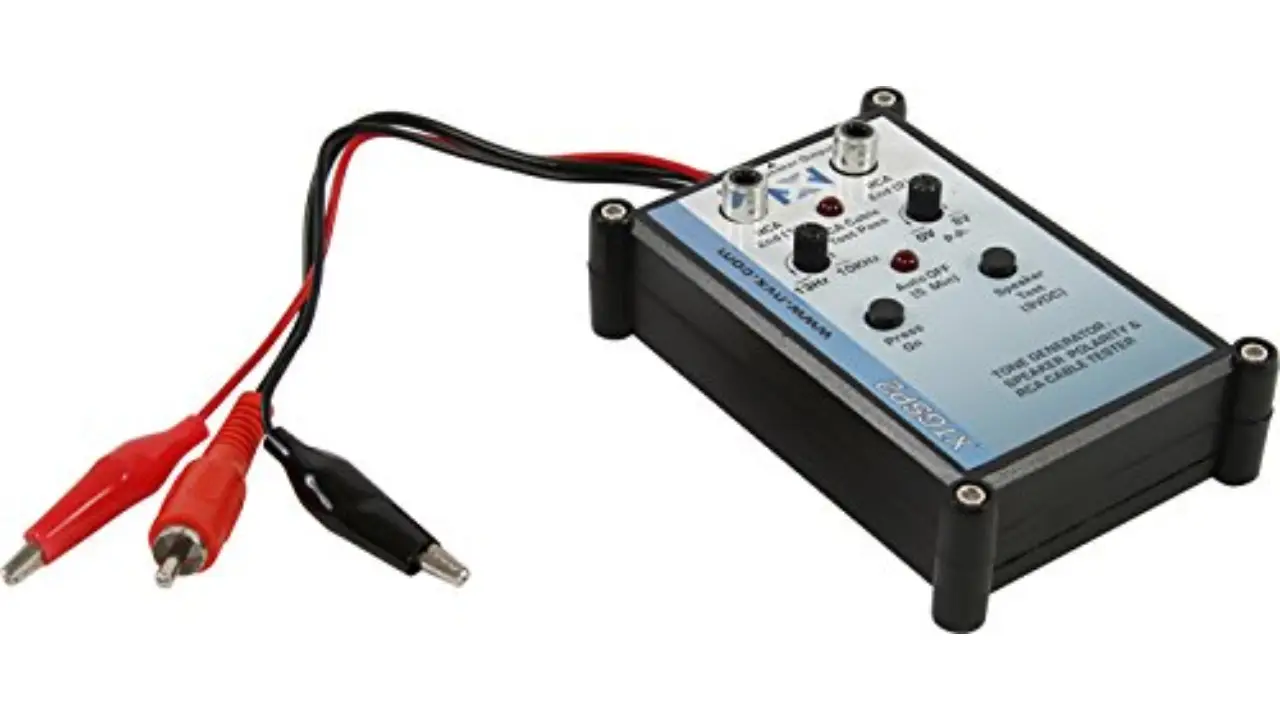

Speaker testers are specialized tools designed for these situations. Not only can they help determine speaker polarity, but they also often feature a signal generator. These devices are relatively inexpensive, considering their utility, and can save a lot of time and effort. For a demonstration of how to use a speaker tester, watching an instructional video can be very helpful.

Test Speaker Polarity with a Smartphone

smartphone-app

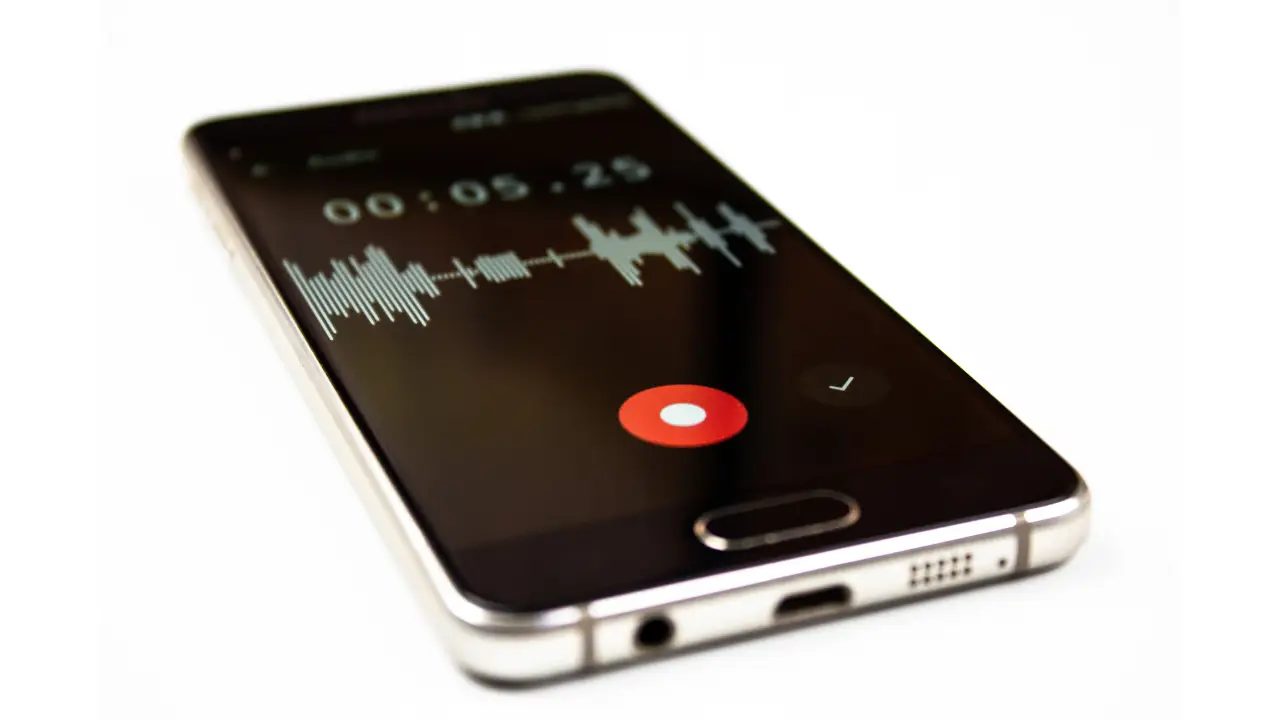

If your audio system is already wired and capable of transmitting an audio signal, you can use a smartphone app designed for testing speaker polarity. This method is convenient and accessible, making it a popular choice for quick checks.

Test Speaker Polarity with a 9V Battery

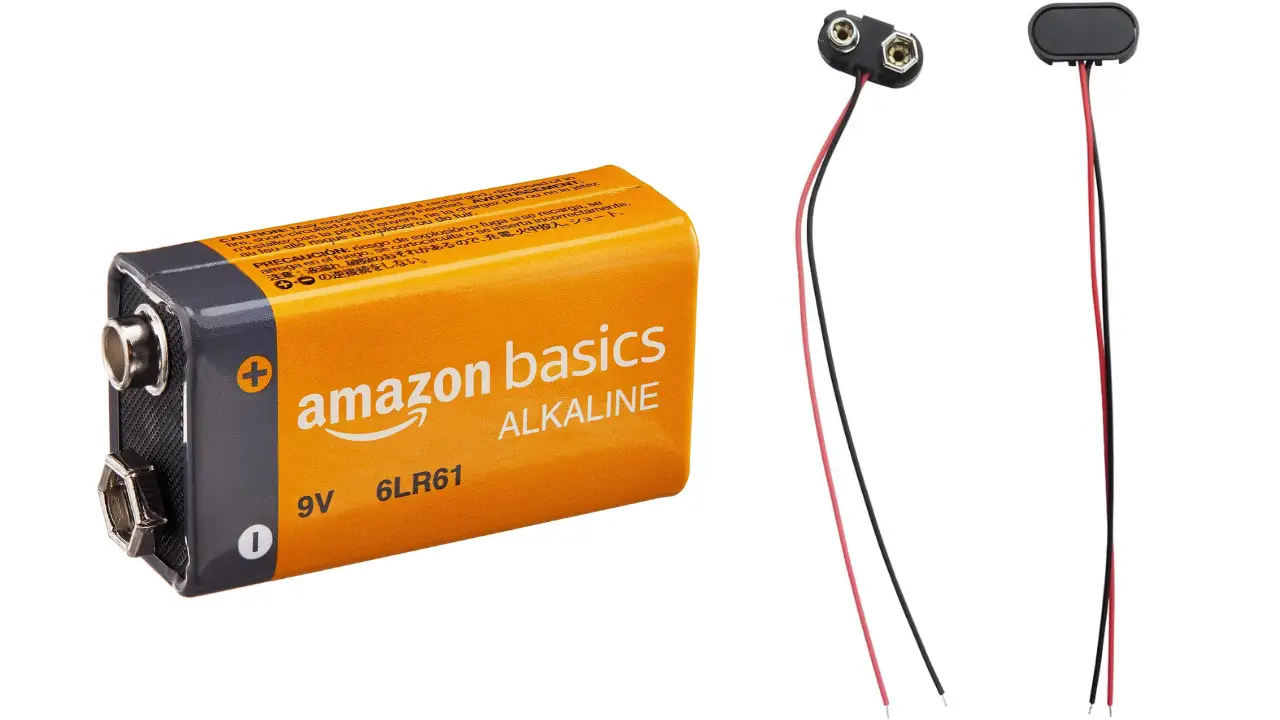

9v-battery-and-connector

For a quick and cost-free method, you can use a 9V battery to test speaker polarity. This method should be used cautiously to avoid damaging the speaker:

  1. Connect one speaker wire to the positive (+) terminal of the battery.
  2. Connect the other speaker wire to the negative (-) terminal of the battery.
  3. Observe the speaker’s movement when the connection is made. If the speaker moves outward, the wire connected to the positive (+) terminal is the positive wire. Conversely, if the speaker moves inward, the wire connected to the negative (-) terminal is identified as the positive wire.

This battery method provides a physical indication of polarity based on the speaker’s movement, offering a straightforward way to identify the correct wiring without specialized tools.

Conclusion

In conclusion, testing speaker wire polarity is a crucial step in setting up your audio system, ensuring that you achieve the highest possible sound quality. Whether you are working with clearly labeled wires, dealing with unlabeled cables in complex installations, or simply checking the setup of an existing system, there are several effective methods at your disposal. From using a dedicated speaker tester, employing a smartphone app, to the straightforward battery test, each approach offers a way to confirm that your speakers are correctly wired. Taking the time to perform these tests not only enhances your audio experience but also prevents potential issues that can arise from reversed polarity. By following the guidance provided, you can enjoy the peace of mind that comes from knowing your system is set up for optimal performance.
