Speaker Wire Connectors Types: Choose the Right One

Table of Contents

Last Updated on March 18, 2024 by Muisc Pro Editorial Team

Speaker wire functions as the critical link in your audio setup, analogous to the arteries in a circulatory system, with your receiver acting as the heart and your speakers as the limbs. Given the variety of gauges, lengths, and types of connectors available, choosing the right speaker wire might seem daunting. However, grasping the basics simplifies the process significantly.

Choosing the Correct Gauge for Home Speakers

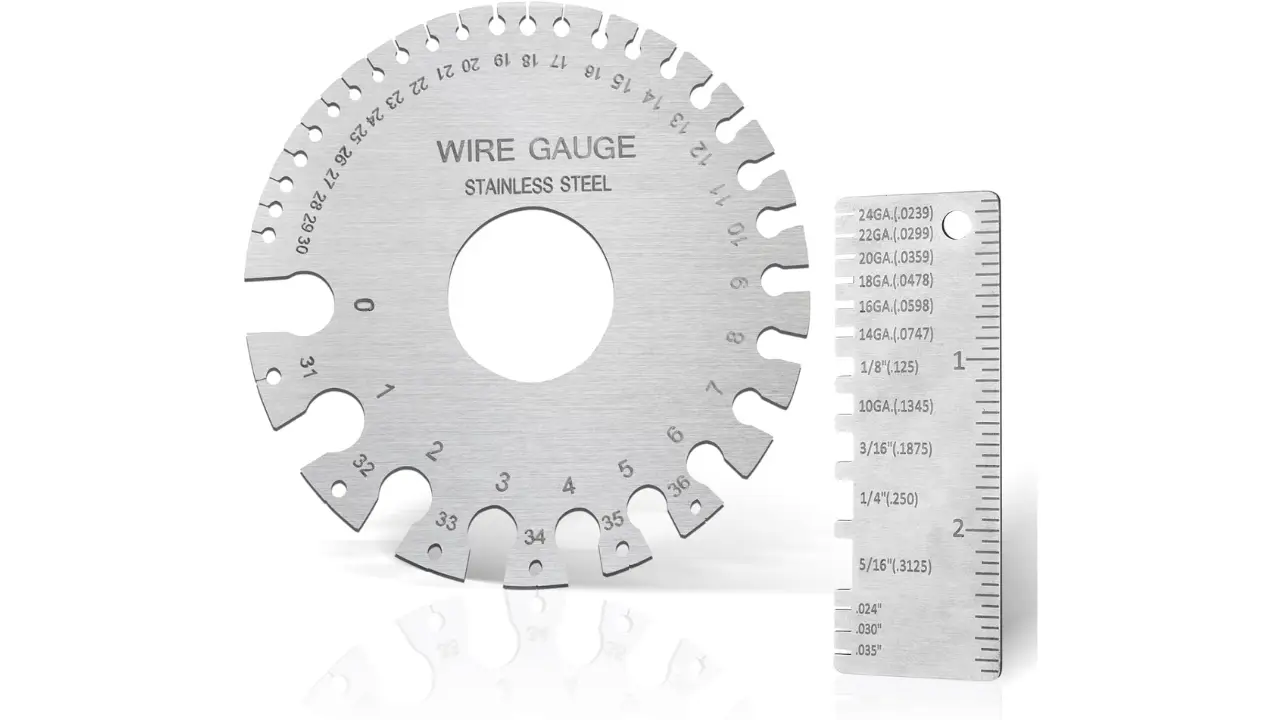

One key aspect to consider is the gauge of the speaker wire, which is critical yet often overlooked. The “AWG” number signifies the wire’s gauge according to the American Wire Gauge standard. Essentially, a lower number means a thicker wire, which is preferable for longer distances, high-power applications, and speakers with low impedance (like 6-ohm or 4-ohm units). For short distances up to 50 feet and standard 8-ohm speakers, 16-gauge wire suffices.

wire-gauge-measurement

Gauge Requirements for Home Theater Systems

For home theater setups, the distance between your speakers and the receiver dictates the wire gauge. Typically, 16-gauge wire is adequate. However, if the distance exceeds 50 feet, or if you’re using high-current amplifiers or speakers with low impedance, opting for 14-gauge wire is advisable.

Determining the Right Amount of Speaker Wire

Estimating the length of speaker wire you need can be straightforward. Although guesstimates can work, it’s safer to overestimate. A practical method involves running a string from your amplifier or receiver to each speaker location, measuring the string, and then adding extra length for flexibility. Speaker wire is commonly sold in 50- or 100-foot rolls, allowing you to cut the exact length required.

Types of Speaker Wire Terminals

speaker-wire-terminals

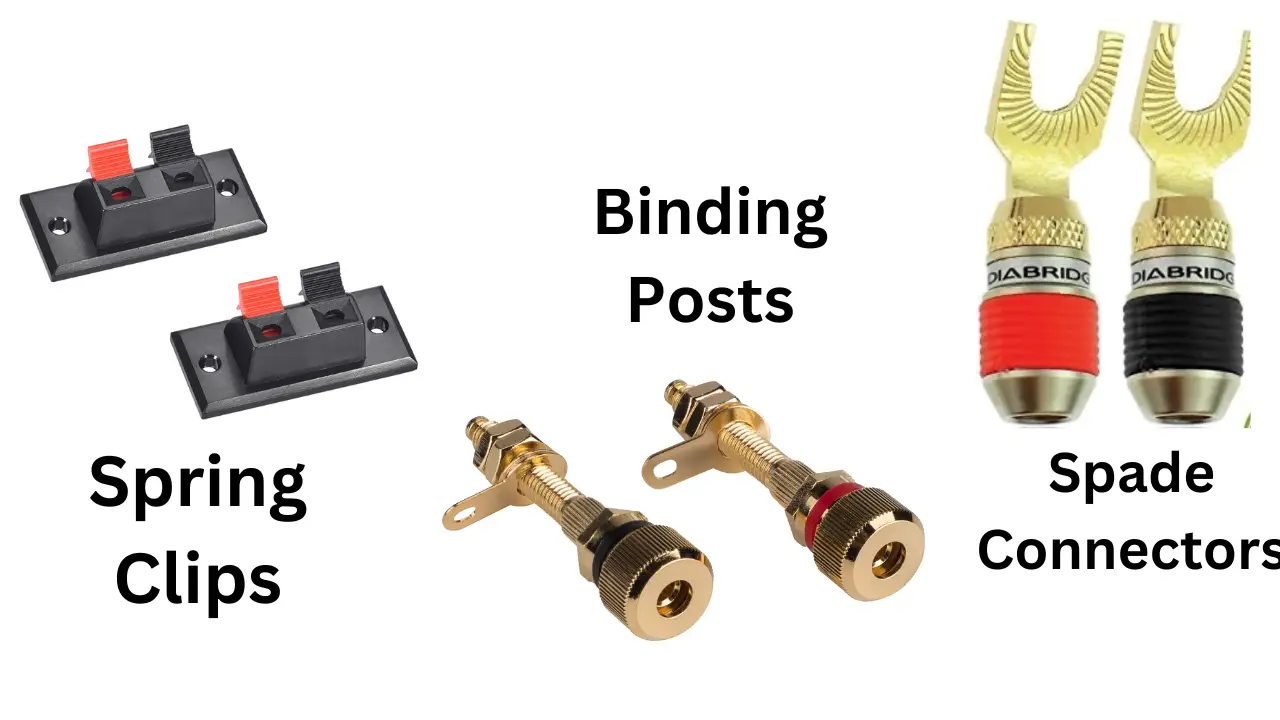

Spring Clips

Spring clips are user-friendly; simply press the clip, insert the speaker wire, and release. The spring mechanism secures the wire. These terminals are compatible with bare wire and pin connectors but cannot accommodate spade connectors or banana plugs.

Binding Posts

Binding posts offer a robust connection option. Loosen the collar to insert bare speaker wire or a pin connector, then retighten for a secure fit. Binding posts also accommodate banana and dual banana plugs—though inserting brand new banana plugs may require extra force initially due to tight connectors.

Spade Connectors

Spade connectors require four per wire and are available in angled or straight designs. These connectors, resembling a forked metal, can be attached to speakers through soldering or crimping, with crimping being recommended for a more reliable connection. Ideal for setups close to walls, spade connectors offer an alternative to banana plugs for certain installations.

Speaker Wire Connector Types

Understanding the variety of speaker wire connectors available can enhance your audio system setup. This guide will introduce you to several common types, explaining their uses and advantages.

rca-banana-plug-speaker-pin

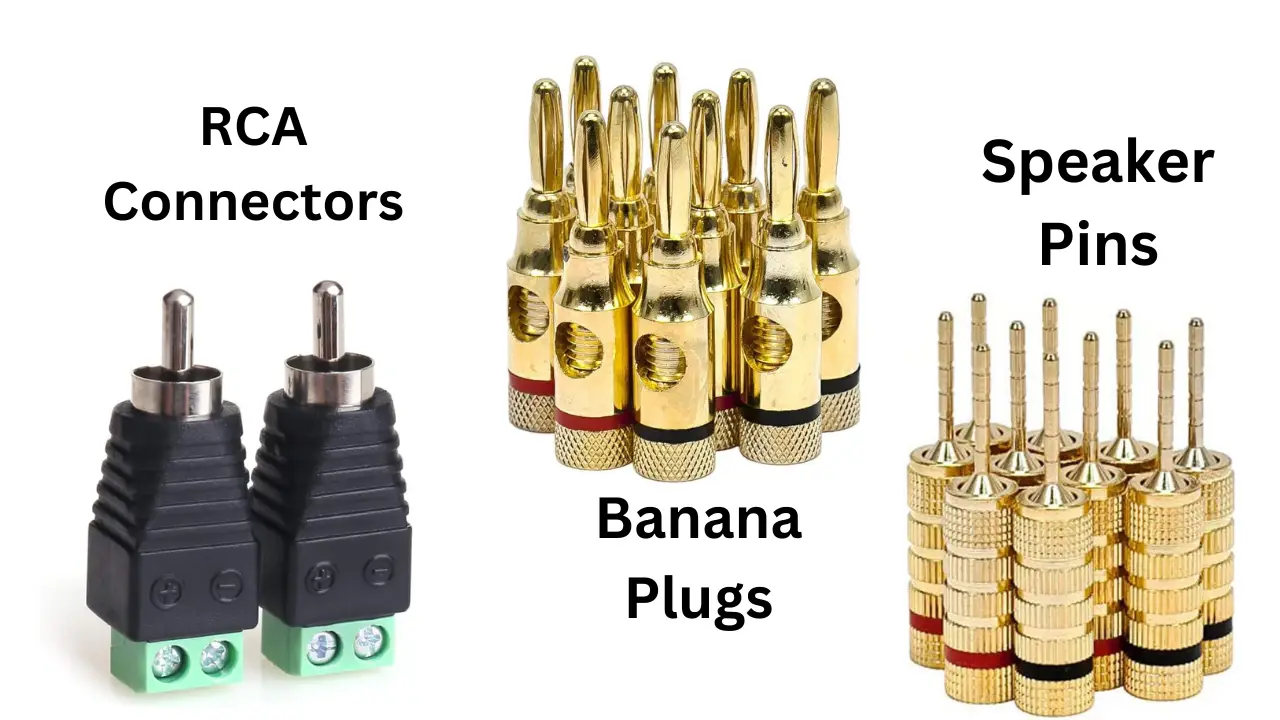

RCA Connectors

RCA connectors, often referred to as “phono connectors,” are widely used for connecting analog audio devices like turntables to receivers, preamplifiers, and amps. A typical stereo audio RCA cable features four connectors, two at each end, usually color-coded for easy identification—red for the right audio channel and black or white for the left. Before HDMI became prevalent for audio and video transmission, RCA cables were the go-to choice, with a third, yellow-coded connector used for composite video.

Banana Plugs

Banana plugs are ideal for speakers with binding-post terminals, allowing easy connection to amplifiers or receivers. These plugs have a spring contact at their metal tips, securing them within the speaker’s holes. Although slightly more expensive than other connectors, banana plugs provide a reliable connection for surround sound systems. For speakers featuring 5-way binding posts, dual banana connectors—spacing positive and negative connectors 3/4″ apart—are recommended for their ease of use.

Speaker Pins

Speaker pins are a compact alternative to banana connectors, lacking a spring contact and therefore more prone to disconnection. Though not commonly used, they can serve as a makeshift solution when other connectors are unavailable. Directly tying speaker wire to the binding posts, avoiding contact between the wire’s exposed ends, is a viable option for connecting speakers to amplifiers or AV receivers without the need for banana plugs or speaker pins.

rf-mmcx

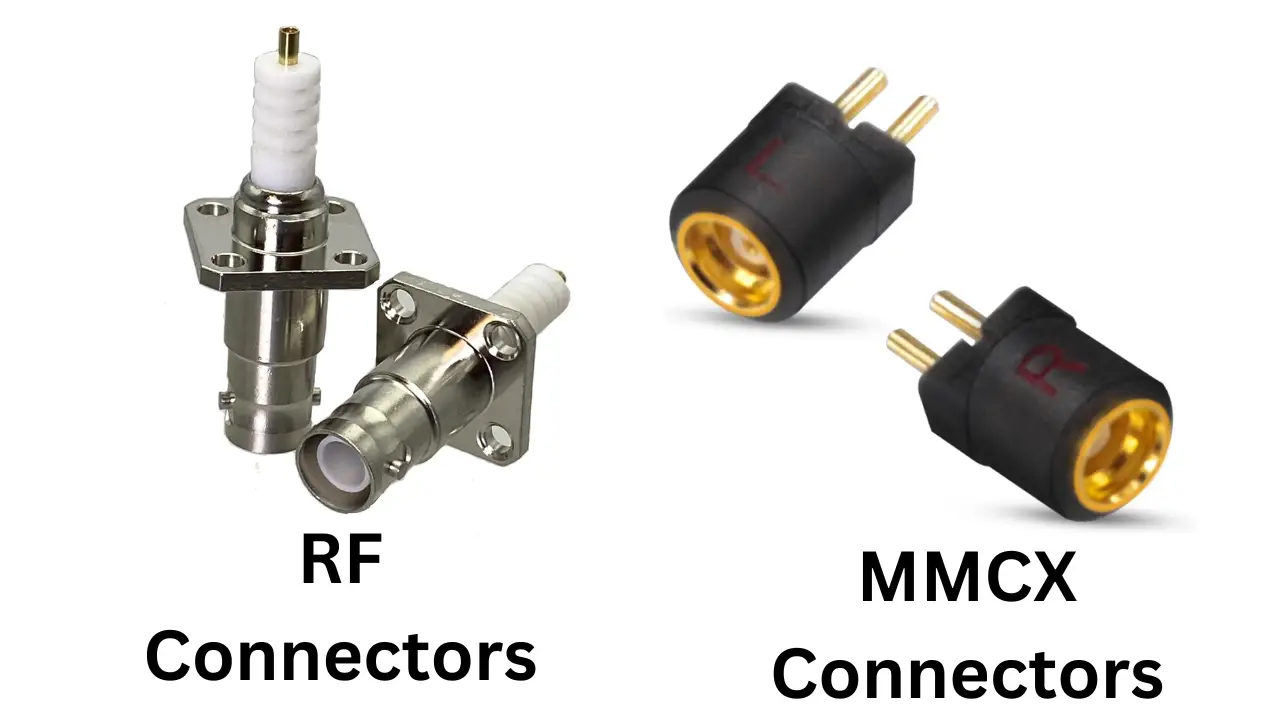

RF Connectors

RF (Radio Frequency) connectors are designed to support high-resolution audio with a construction that includes a needle in the center for secure attachment. Commonly used for TV receivers and two-way radios, RF connectors offer a reliable connection for specific audio setups.

MMCX Connectors

MMCX connectors, smaller counterparts of MCX connectors, primarily connect cables to earpieces in in-ear headphones or earbuds. Although not common in consumer audio, MMCX connectors find their use in specialized audio devices, highlighting their niche application.

MCX Connectors

Micro Coaxial (MCX) connectors, about 30% smaller than standard RF connectors, feature a central needle for stability. They’re typically used in connecting antennas and GPS receivers, like those in vehicles, rather than for connecting audio receivers to players, underscoring their specific use in non-audio applications.

xlr-toslink-speakon

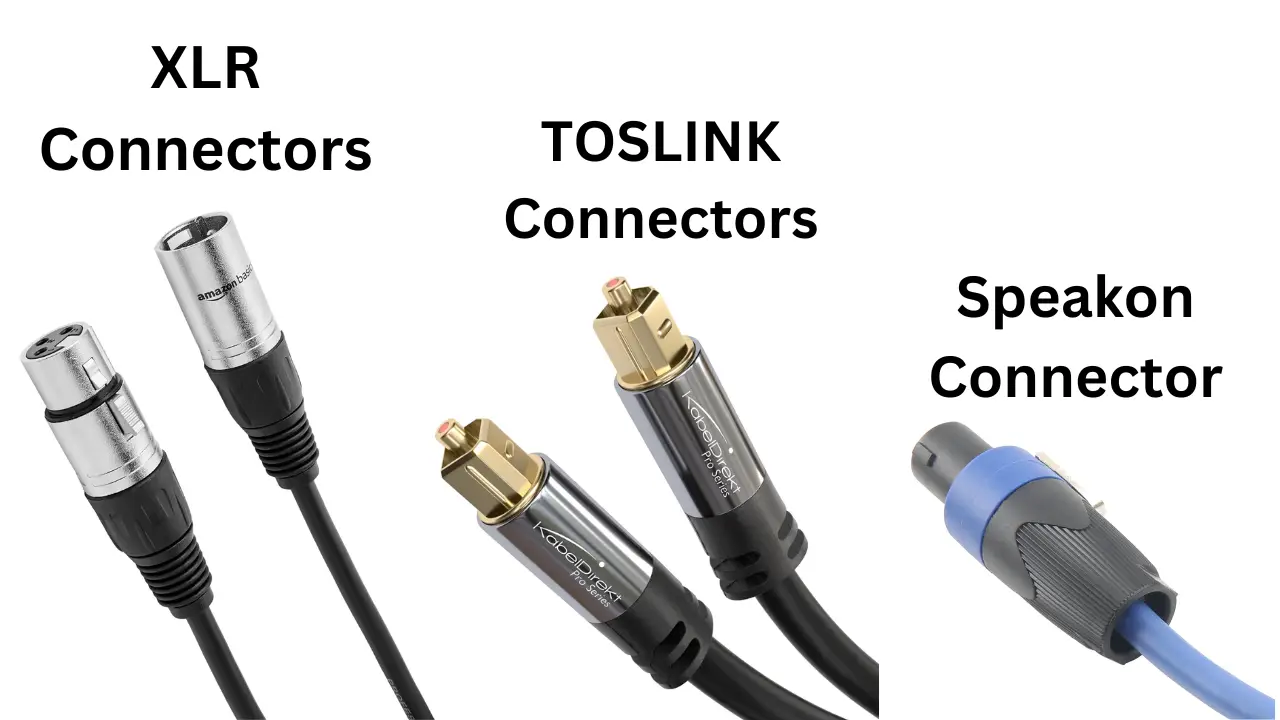

XLR Connectors

XLR connectors, known for their ability to provide balanced signals, are designed to contact the ground pin before other connections, minimizing the risk of system damage. Offering balanced audio significantly reduces electromagnetic interference, making XLR connectors versatile for various applications, from microphones to amplifiers.

TOSLINK (Optical Fiber) Connectors

TOSLINK, or Toshiba Link, utilizes optical fiber to transmit digital audio signals from sources like CD or DVD players to AV receivers. With ports usually marked “Optical,” TOSLINK cables support up to 24/96 resolution audio, ideal for consumer audio equipment but limited compared to coaxial cables for professional-grade systems.

Speakon Connectors

Speakon connectors, available in 2-, 4-, and 8-pole versions, offer robust designs with the 8-pole variant being the most powerful. Affordable and capable of carrying more current than other connectors, Speakon connectors feature a locking plug and non-shorting contacts, suitable for live sound and high-power applications.

Selecting the Appropriate Wire Type

Speaker wires are available with or without connectors. For a hassle-free installation, consider using banana plugs with connector-less wires. Banana plugs make connecting bare wire to speaker terminals easier and ensure a secure connection once installed.

In-wall Speaker Wire Considerations

If your installation requires running speaker wire inside walls, it’s crucial to choose UL-rated wire labeled as CL2 or CL3. These in-wall cables are designed for safety and compliance with building codes. They come in 2-conductor and 4-conductor varieties, with the latter being versatile for connecting an amplifier or receiver to an in-wall volume control, and then running 2-conductor cables from the volume control to the speakers in that location.

Connecting Stereo-Input Speakers

4-conductor wire is ideal for linking stereo-input speakers to amplifiers. This type of wire efficiently manages dual-channel audio, ensuring a clear and balanced sound.

Preparing for Outdoor Installation

When installing speaker wires outdoors, especially for underground setups, opt for wires specifically rated for direct burial. These wires are designed to withstand environmental factors, ensuring durability and continued performance over time.

Understanding Audiophile Speaker Cables

Audiophile-grade speaker cables can significantly improve your audio experience. These cables are made from superior quality materials, with some featuring high-conductivity elements like silver in their connectors. The result is a more dynamic and vibrant soundscape, enhancing the depth and liveliness of movies and music. While the extent of improvement varies based on your speakers and receiver, many users find the investment in audiophile cables to be highly rewarding.

Connecting Your Speaker Wire

Identifying Wire Polarities

The initial step in connecting your speaker wire is to distinguish the positive and negative ends. Typically, for wires with connectors, red indicates positive and black denotes negative. Attach the positive end to your speaker’s positive terminal, and the corresponding negative end to the negative terminal. Repeat this process for each speaker and connection to your amp or receiver.

Connection Without Connectors

For setups without connectors, strip about 3/8-inch of insulation from each wire end, revealing the bare strands. Tightly twist these strands to prevent any loose strands that could cause a short circuit. This precaution helps maintain a secure and safe connection to your audio equipment.

Simplifying Audio Setup with Speaker Wire Connectors

Ease of Identification

Speaker wire connectors significantly simplify the process of connecting your audio system. They eliminate the guesswork and scrutiny often involved in identifying wire polarity, especially in multichannel stereo systems. While the terminals of speakers and audio equipment usually feature color coding—red for positive (+) and black for negative (-)—speaker wires themselves might not always have two-tone insulation. Instead, markings like text, dashed lines, or stripes indicate the positive end, making it easier to distinguish and connect the wires correctly.

Improved Connection Quality

Speaker wire connectors also facilitate a more straightforward and reliable connection to amplifiers or receivers. Typically, bare wire ends need to be twisted together before insertion into a terminal, which can be challenging due to limited space and visibility. Connectors prevent the frustration of dealing with bent or damaged wires by housing and protecting the wire ends, thus simplifying the plug-and-play process compared to traditional methods like RCA jacks.

Quality and Organization

Beyond practicality, installing speaker wire connectors play a vital role in maintaining the integrity of the audio signal. By ensuring a secure and proper connection, they help deliver a clear and high-quality sound output from your stereo speakers. Additionally, connectors contribute to a more organized and polished appearance of your audio setup, appealing not only to the enthusiast who appreciates the technical setup but also enhancing the overall aesthetic.

Conclusion

In conclusion, incorporating the right speaker cable connectors is crucial for achieving not only an optimal audio performance but also for adding a professional touch to your system. As you’ve learned, connectors offer both functional and visual benefits, making them an indispensable component of your music ensemble. Various types of connectors have been discussed in this guide, and selecting the one that best fits your needs will depend on your specific requirements and the nature of your audio system.
