How Do Wireless Microphones Work? Technology Understanding

Table of Contents

Last Updated on February 27, 2024 by Muisc Pro Editorial Team

When you’re ready to elevate your live performance, considering a wireless microphone system could be a game-changer. Unlike wired microphones, which can limit the movement of performers, wireless mics provide the flexibility needed to engage with the audience and move freely on stage. Understanding how wireless microphone systems function is crucial in selecting the right setup for your needs, ensuring an enhanced live show experience.

Basics of Wireless Microphone Systems

At their core, wireless microphone systems are designed to upgrade your stage presence. These systems might initially appear complex with terms like UHF, transmitters, receivers, and megahertz thrown around. However, breaking down the components simplifies the concept significantly. A wireless system is essentially composed of two main parts: a transmitter and a receiver. The transmitter takes an audio signal and sends it through the air using ultra-high frequency (UHF) modulation. On the other end, the receiver picks up this modulated signal, demodulates it, and converts it back into the original audio signal for playback in real-time. This process allows for the seamless wireless transmission of sound.

Anatomy of a Wireless Microphone System

Understanding the components that make up a wireless microphone system is essential for selecting the right setup for your needs. A typical system includes a microphone, a transmitter, and a receiver, each playing a crucial role in capturing and delivering sound.

The Microphone

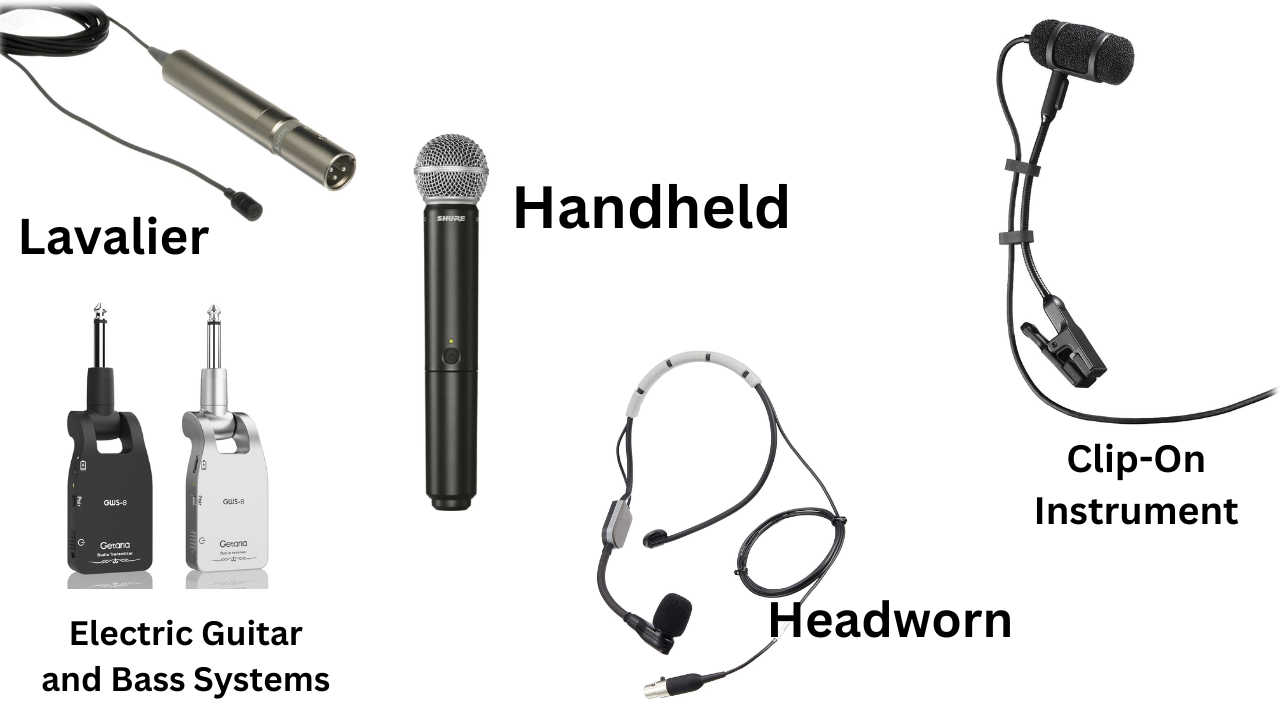

microphone-types

The microphone in a wireless system functions similarly to its wired counterpart but offers different types designed for specific applications:

  • Handheld wireless microphones are the wireless version of traditional handheld mics, suitable for vocalists who prefer to hold the mic.
  • Lavalier microphones offer a discreet, clip-on design ideal for speech, providing high-quality audio while remaining unobtrusive.
  • Headworn microphones are designed for active performers or presenters, offering comfort and stable positioning for clear vocal reproduction.
  • Clip-on instrument microphones are tailored for attaching to instruments, capable of handling the high sound pressure levels of woodwinds, brass, and percussion.
  • Electric guitar and bass systems connect the instrument directly to the wireless system without a traditional microphone, using a cable.

The Transmitter

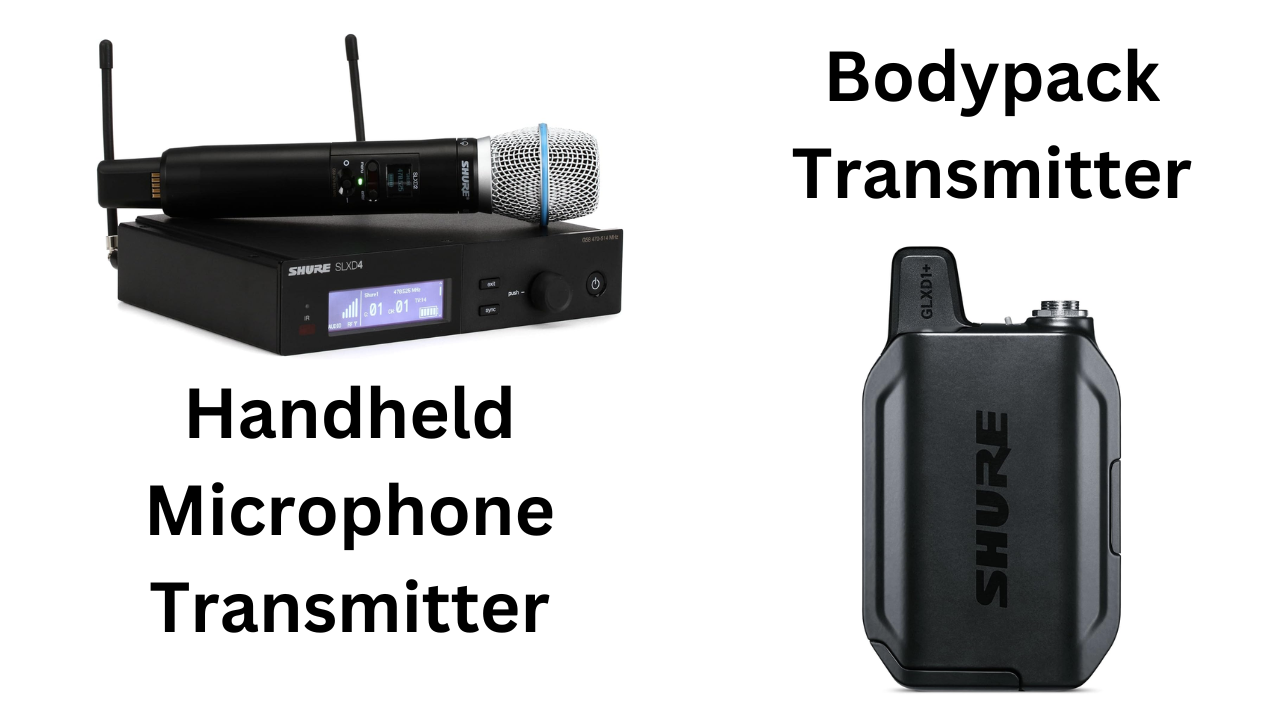

transmitter-types

There are two main types:

  • Handheld microphone transmitters integrate both the microphone and transmitter into one unit for convenience.
  • Bodypack transmitters are designed to be worn on the body, compatible with lavalier, headworn, and clip-on instrument microphones, as well as cables for electric guitars and basses.

How Do Transmitters Work?

Focusing on the transmitter aspect, it utilizes modulation to send the audio signal. Specifically, analogue transmitters operate within the ultra-high frequencies to wirelessly transmit audio to receivers. The UHF spectrum is beyond human auditory perception, which is advantageous for clear signal transmission. Transmitters emit a strong center frequency that surpasses background noise, or the “noise floor,” which is often contributed by electronic devices like TVs. The audio signal modulates this center frequency, essentially shifting the signal rapidly to create a replicable audio image that can be transmitted through the air. The receiver then tunes into this center frequency, demodulates it, and recovers the original audio signal. Managing different center frequencies is vital to prevent signal interference, making frequency coordination a critical aspect of wireless system setup.

The Receiver

Completing the system, the receiver takes the radio signal from the transmitter and converts it back into audio. Receivers come in various forms:

  • Modular receivers can be freestanding or rack-mounted, typically powered by AC.
  • Portable receivers resemble bodypack transmitters in appearance but are battery-powered and designed to be carried with the user.
  • Guitar pedal receivers are specifically for electric guitar and bass players, designed to fit seamlessly into a pedalboard setup.

Choosing the right components for your wireless microphone system involves understanding these basic elements and how they work together to provide the flexibility, reliability, and quality performance that today’s artists and presenters demand.

Frequency Coordination

The concept of frequency coordination might seem daunting, but wireless microphone system manufacturers have streamlined the process to minimize user complexity. Most systems come with selectable groups and channels, with each channel’s frequency designed to minimize interference. If you’re operating multiple wireless transmitters, it’s important to keep them within the same group to avoid cross-interference. The sophistication of a system often correlates with the number of available groups and channels, which can be particularly relevant depending on the venue’s size. For intricate setups or larger venues, manufacturers offer options for manual frequency adjustment through the system or specialized software, allowing for custom frequency coordination to suit complex needs.

Choosing the Right Wireless Configuration

Selecting the appropriate wireless system configuration depends on your specific needs as a performer, presenter, or content creator. The variety of available options ensures that there’s a setup tailored to every role.

  • Vocalists: Stage vocalists often opt for a handheld microphone transmitter paired with a modular receiver. This setup allows singers to control the mic’s distance from their mouth, enabling dynamic vocal expression.
  • Active Vocalists and Fitness Instructors: Those requiring hands-free operation, such as dancing vocalists, fitness instructors, and musicians who play instruments while singing, benefit from a headworn microphone combined with a bodypack transmitter and modular receiver. This configuration supports unrestricted movement.
  • Presenters and Stage Performers: Presenters, worship leaders, and actors who need unobtrusive microphones with hands-free capability might choose a lavalier or headworn microphone, used with a bodypack transmitter and modular receiver for discreet and effective audio capture.
  • Video Production and ENG: For video and electronic news gathering (ENG) applications, the choice between a handheld microphone transmitter or a lavalier mic with a bodypack transmitter, along with a portable receiver, is ideal. The portable receiver can be easily mounted on a camera, simplifying audio capture in the field.
  • Musicians: Horn and percussion players can utilize a clip-on instrument microphone with a bodypack transmitter and modular receiver for accurate sound reproduction. Electric guitar and bass players, meanwhile, might prefer a bodypack transmitter paired with a guitar pedal receiver for a seamless, cable-free performance.

Custom Wireless Solutions for Streamers and Mobile Professionals

content-creator

For content creators and mobile professionals, there are specialized wireless solutions designed to meet their unique needs. These compact, all-in-one systems combine multifunction microphones, transmitters, and receivers into a single package that’s easy to set up and use. Whether you’re streaming, gaming, or creating content on the go, these self-contained wireless systems offer the convenience and quality required for professional results.

Wireless Frequency Bands

Wireless microphone systems operate on specific frequency bands, which are essential to consider for ensuring compliance and minimizing interference.

  • UHF TV Band: Frequently used by wireless systems, the UHF TV band ranges from 470MHz to 608MHz. While you don’t need a license to operate in this band, it’s important to avoid frequencies used by local TV channels. Availability of frequencies can vary significantly based on your location.
  • 900MHz Band: The 900MHz band is another popular choice for wireless microphones, especially because it doesn’t require a license in the United States. However, its legality varies globally, so checking local regulations is crucial for international use.
  • 2.4GHz Band: The 2.4GHz band is globally accessible without a license but is also used by Wi-Fi devices, posing a risk of interference. This band requires careful management to ensure reliable operation.

Frequency Management

Wireless microphones can be categorized based on their frequency management capabilities.

  • Fixed-Frequency Systems: Some wireless systems operate on a single, unchangeable frequency. These systems are typically more affordable but offer limited flexibility and may encounter interference from local broadcast channels.
  • Frequency-Agile Systems: Most modern systems are frequency-agile, allowing users to switch frequencies easily to avoid interference. These systems often feature automatic scanning and synchronization functions to find and set clear channels quickly.
  • True Diversity Systems: High-end wireless systems may employ true diversity technology, featuring two independent receivers with separate antennas. These systems continuously compare signals from both antennas, choosing the strongest one to minimize dropouts and ensure stable signal reception.

Managing Multiple Wireless Microphones

When using multiple wireless microphones simultaneously, careful management of frequencies is crucial to ensure smooth operation. Each microphone must operate on its own unique frequency to prevent interference. As the number of microphones in use increases, the challenge of assigning separate frequencies grows due to the limited availability of frequency bandwidth. High-end wireless systems offer a broader selection of frequencies, providing the flexibility needed to manage multiple transmitters and receivers effectively. These advanced systems are designed to accommodate larger setups, featuring capabilities that allow for the integration of numerous devices without signal interference.

Digital vs. Analog Wireless Systems

In the world of wireless microphone systems, the choice between digital and analog is a pivotal decision for users. Digital systems have become increasingly popular due to their superior audio quality. This enhancement in sound results from less compression of the signal compared to analog systems. Although digital systems may come with a higher price tag, the investment is often justified by the significant improvement in audio clarity. Digital technology also addresses the issue of intermodulation, making it easier to operate multiple systems simultaneously without the risk of interference. For those seeking the highest quality audio, digital systems are the preferred choice.

However, analog systems maintain their relevance and advantages. They are generally more forgiving when it comes to latency issues and offer greater potential for expansion. The decision between digital and analog systems ultimately depends on the specific needs and preferences of the user, including considerations of audio quality, latency, and system scalability.

Sound Quality and Latency

Both analog and digital wireless systems can deliver high-quality audio. However, digital systems often provide superior dynamic range and frequency response. This is because analog systems use a technique known as companding to compress and expand the signal, which can slightly degrade sound quality. On the issue of latency, analog systems generally have negligible latency. Digital systems, though, can vary, with some exhibiting noticeable delays. High-end digital systems, however, manage to minimize latency, making it almost negligible.

Interference and Security

Digital systems have an advantage in filtering out RF interference. They convert audio to digital data at the transmitter, which the receiver then decodes back into analog audio. This process means that only the digital signal is recognized, effectively ignoring analog noise and interference. For those concerned with transmission security, digital systems are the preferred choice. Many use AES 256-bit encryption to protect data, ensuring that digital wireless systems are both secure and reliable.

Benefits of Wireless Microphones

Going wireless with microphones isn’t just a trend; it’s a significant shift towards convenience and performance enhancement that mirrors the wireless revolution seen in consumer devices like laptops and smartphones. The move to wireless microphones brings a host of advantages that can make a substantial difference for artists, presenters, and performers alike.

  • Freedom of Movement: One of the most celebrated benefits of wireless microphones is the complete freedom of movement they offer. Performers are no longer tethered to a specific spot by cables. This mobility allows for dynamic interactions with the audience, more engaging performances, and the flexibility to use the entire stage or performance area without constraints.
  • Aesthetics and Cleanliness: Wireless microphones contribute to a cleaner, more professional appearance of the performance space. They eliminate the visual clutter of cables, ensuring that the focus remains on the performance itself. This advantage is particularly valuable in creating an unobstructed view for both live audiences and cameras during recorded or streamed events.
  • Reliability and Safety: By eliminating cables, wireless microphones reduce the risk of technical issues related to cable failure, disconnections, and damage that can interrupt a performance. Additionally, they minimize trip hazards, making the stage safer for performers and crew alike. Wireless systems also prevent ground loop issues, ensuring better sound quality and reducing the risk of electrical interference with other equipment.

Understanding Wireless Licensing

Navigating the complexities of wireless licensing is crucial for users of wireless microphone systems. In the UK, for example, wireless operations are restricted to certain frequency bands or channels, with Channel 38 being designated specifically for wireless microphones. Operating outside these designated channels may require the purchase of additional licenses. It’s essential to ensure that any system you consider operates within an acceptable bandwidth to avoid legal and operational issues.

For those seeking to avoid licensing complications altogether, digital 2.4GHz systems offer a solution. These systems operate in a band that typically does not require licensing, offering an easier setup process. However, it’s worth noting that such systems may not offer the same level of expandability or reliability as those operating in other frequency bands. Additionally, licensing requirements can vary significantly from one country to another, making it important for touring users to verify the compatibility and legality of their systems in different locations.

Choosing and Using Wireless Mic Systems

Investing in a high-quality wireless microphone system is the first step towards ensuring superior sound quality for your performances or events. Alongside this, selecting the right antennae is critical. Basic antennae may not provide the coverage needed, especially in larger venues. Exploring options like omnidirectional or powerful directional antennae can significantly enhance system performance.

Another key consideration is the selection of the appropriate number of groups and channels for your system. This choice can impact the system’s ability to meet your needs, particularly when balancing cost against functionality. Ultimately, the goal is to choose a system that provides the necessary performance without unnecessary expenditure.

Lastly, it’s important not to be daunted by the perceived complexity of wireless systems. Many high-end systems are designed for ease of use, allowing users to get started quickly and efficiently. By focusing on essential features and not overcomplicating the decision-making process, users can find a wireless microphone system that meets their needs while providing reliable and high-quality audio performance. This approach is particularly beneficial when selecting portable PA speakers with wireless mic, as it ensures that the system is both user-friendly and capable of delivering the audio quality required for various settings.

Choosing the Right Wireless System

Selecting a wireless system that meets your specific needs requires careful consideration of several factors. Understanding the system’s specifications, such as operating range and battery life, is essential, especially in relation to the size of the venues you’ll be performing in and the duration of use expected between charges. This is particularly important for portable battery-powered PA speakers, as their performance directly impacts the overall effectiveness of your setup. Additionally, for those operating multiple wireless systems in environments with potential RF interference, upgrading to a more capable antenna, such as an RF Venue model, can significantly improve signal management and quality. These enhanced antennas are designed to handle multiple signals more effectively than standard stock antennas, offering a clear advantage in crowded RF environments.

Conclusion

In conclusion, understanding the intricacies of how wireless microphones work illuminates the vast potential and flexibility these systems offer to performers, presenters, and professionals across various fields. From the basic components of a wireless system to the nuanced differences between analog and digital technologies, each aspect plays a crucial role in delivering high-quality, reliable audio. Whether managing multiple devices in a complex setup or selecting a system tailored to specific needs, the choice of wireless microphones involves careful consideration of frequencies, system specifications, and the environment in which they will be used. Armed with this knowledge, users can navigate the wireless landscape, making informed decisions that enhance performance quality and audience experience. As technology advances, wireless microphones continue to evolve, promising even greater capabilities and convenience for users worldwide.
