Graphic EQ: The Quality in Live Performances and Home Audio

Table of Contents

Last Updated on March 20, 2024 by Muisc Pro Editorial Team

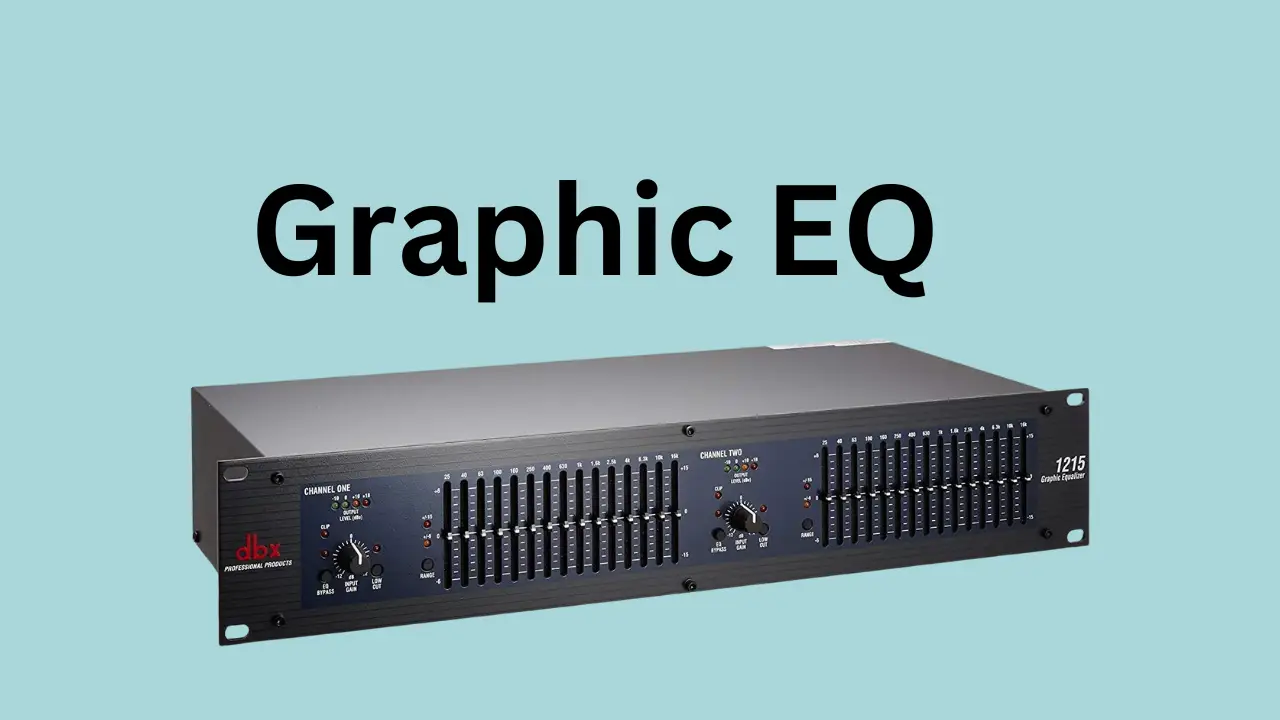

What is a Graphic Equalizer?

A graphic equalizer, often shortened to graphic EQ, is an audio control device that allows users to improve the sound quality of their audio system. This device makes it possible to adjust sound captured from various sources, like microphones and instruments, by altering the audio’s individual frequency bands. In essence, a graphic EQ helps in modifying the frequency balance within an electrical signal to enhance audio quality.

How Graphic Equalizers Work

Graphic equalizers function by either boosting or cutting specific predetermined frequency bands to refine sound quality. They consist of several audio filters or amplifiers, each focused on a distinct frequency within the audio spectrum. Most graphic EQs have two sets of identical filters for both channels in a stereo system, allowing the user to adjust the sound by sliding controls up or down to boost or reduce the energy in each band. These devices typically feature bands divided into six or 31 frequency ranges, with each slider managing one band, providing precise control over the sound.

Types and Uses of Graphic EQs

Graphic EQs are versatile tools found in various audio environments—from car speaker systems and home theaters to professional recording studios. The design of graphic EQs, with their slide controls arranged like a graph, makes them especially useful in live sound settings where quick adjustments are crucial. Beyond hardware versions, software-based graphic equalizers are available for fine-tuning sound on PCs, offering similar functionality in a digital format.

EQ Bands and Filters

The bands in a graphic EQ are set within a fixed range, with filters allowing audio to pass based on its frequency. Low-pass filters cut high frequencies while letting low frequencies through, and high-pass filters do the opposite, which is essential for eliminating unwanted sounds from a mix. For instance, a high-pass filter can remove excessive bass, while a low-pass filter can prevent harsh high frequencies, like cymbals, from overpowering a track. Making even slight adjustments to these bands can significantly alter the audio’s overall sound, demonstrating the powerful impact of graphic equalizers on audio quality.

A Simplified Glossary and Frequency Guide

Before diving into the specifics of graphic equalizers, it’s important to understand some basic audio terms that frequently come up in discussions about sound and music production.

  • Amplitude: This refers to the relative loudness of a sound.
  • Analog: Represents the continuous wave of an audio signal, capturing the nuances of sound intensity and pitch.
  • Bandwidth: The range between the upper and lower frequencies in a specific frequency band.
  • Bass: These are the low sound frequencies, ranging from 16 Hz to 250 Hz, including bass and sub-bass sounds.
  • Boomy: A term used to describe excessive bass presence in audio.
  • Clarity: The quality of sound that allows it to be heard clearly and without distortion.
  • Intensity: Indicates how loud or soft a sound is.
  • Muddy: Describes sound that has excessive bass and a weak treble response, leading to a lack of clarity.
  • Pitch: The perception of how high or low a note sounds.
  • Potentiometer: A variable resistor that allows users to change resistance, usually via a knob or slider, to adjust volume or tone.
  • Punchy: Refers to sound that is brighter, crisper, and more impactful.
  • Subwoofer: A type of speaker designed specifically to produce low audio frequencies, such as bass and sub-bass.
  • Timbre: The characteristic quality of a sound that distinguishes it from others, regardless of pitch or intensity.
  • Treble: Represents higher pitches in music, typically ranging from 6 kHz to 16 kHz.
  • Tweeter: A speaker designed to reproduce high audio frequencies, sometimes up to 100 kHz.
  • Woofer: A speaker that produces low-frequency sounds, ranging from 50 Hz to 1000 Hz.

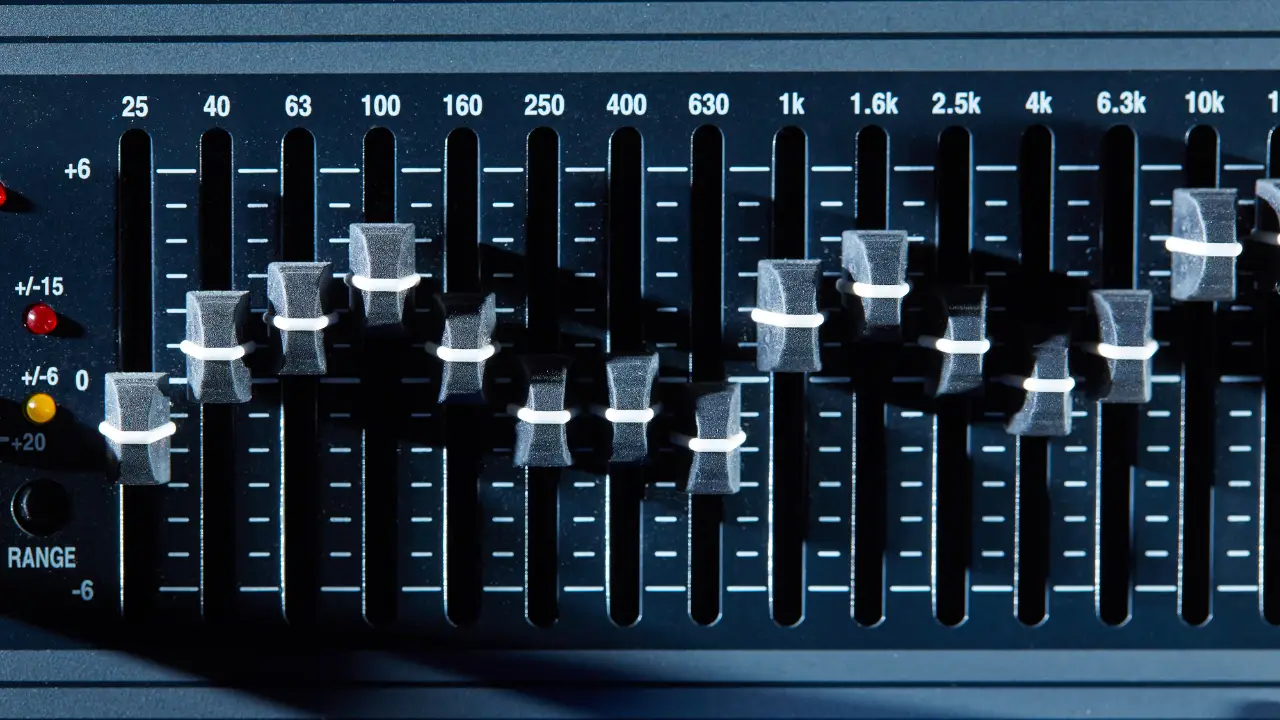

closeup-graphic-eq

Frequency Range in Graphic Equalizers

Graphic equalizers allow users to adjust specific frequency ranges to enhance or reduce certain aspects of the sound. Here’s a breakdown of how frequencies are typically grouped and what each range represents:

  • Sub-bass (16 – 60 Hz): Frequencies mostly felt rather than heard. Excessive sub-bass can make audio sound muddy.
  • Bass (60 – 250 Hz): Contains the fundamental notes of the rhythm section. Too much bass can make the mix sound boomy or overly punchy.
  • Low Mids (250 – 500 Hz): This range includes the lower harmonics of most instruments. Adjusting around 300 Hz can add clarity to bass instruments, but too much can muffle higher frequencies.
  • Mids (500 Hz – 2 kHz): Crucial for the prominence of an instrument within a mix. Overemphasis can make sounds tinny.
  • High Mids (2 – 4 kHz): Affects the projection of midrange instruments. Boosts here can add presence; however, excess can alter the sound’s natural timbre.
  • Presence (4 – 6 kHz): Influences clarity, definition, and the perceived distance of sound. Boosting frequencies in this range makes sound appear closer, while cutting them can make it seem more distant.
  • Brilliance (6 – 16 kHz): This range adds air and clarity to sounds. Overemphasis might introduce unwanted hiss.

By adjusting these frequency ranges using a graphic equalizer, producers and audio engineers can fine-tune their audio to achieve the desired balance and quality, whether it’s adding depth to the bass, clarity to the vocals, or crispness to the treble.

Graphic EQ vs. Parametric EQ

Equalizers play a crucial role in audio production by allowing users to adjust the frequency response of an audio signal. There are two main types of equalizers: graphic equalizers and parametric equalizers. Both types have their unique features and applications, catering to different needs in the audio engineering world.

Graphic Equalizers

Graphic equalizers are simpler in design compared to their parametric counterparts. They consist of a fixed set of frequencies that users can adjust by boosting or cutting the amplitude of each band. These adjustments are made using sliders that visually represent the frequency spectrum, hence the name “graphic.” This type of EQ is favored for its ease of use, making it a popular choice in live sound environments, car audio systems, and home theaters.

Parametric Equalizers

Parametric equalizers offer a higher level of control over the sound than graphic EQs. With a parametric EQ, users can not only adjust the amplitude of each band but also modify the center frequency and the bandwidth (Q) of each band. This allows for more precise adjustments, enabling audio engineers to target specific frequencies for enhancement or attenuation. Parametric EQs are essential tools in recording and mixing studios due to their flexibility and precision.

Key Differences Between Graphic and Parametric Equalizer

The primary difference between graphic and parametric equalizers lies in their adjustability and precision. Graphic EQs provide control over a predetermined set of frequencies, making them more straightforward but less flexible. On the other hand, parametric EQs allow for detailed adjustments, including frequency, amplitude, and bandwidth, offering more precise control over the audio spectrum.

Choosing a Graphic Equalizer

When considering a graphic equalizer, it’s important to keep in mind several factors:

  • Use Case: The intended application of the equalizer should guide your choice. More bands mean finer control over frequencies, which can be crucial for certain settings like live performances or detailed audio setups.
  • Compatibility: Consider the compatibility of the graphic EQ with your existing audio system, especially in terms of size and connection types. This is particularly important for setups with limited space, such as in vehicles.
  • Ease of Use: While graphic EQs are generally user-friendly, some models may offer more advanced features that require a deeper understanding of sound engineering principles.
  • Additional Features: Look for graphic equalizers that offer extra functionalities that can enhance your audio experience, such as dual-amp balancing or a front-to-rear fader. These features can provide added flexibility and control over your sound.

Conclusion

In conclusion, the realm of graphic equalizers encompasses a fascinating array of options for audio enthusiasts, engineers, and casual listeners alike. Whether you’re diving into the nuanced world of sound for professional recordings or simply seeking to enhance your home audio experience, understanding the functionality and distinguishing features of graphic EQs is crucial. By considering the specific needs of your audio environment—be it live performance settings, studio work, or personal enjoyment—alongside factors such as compatibility, ease of use, and additional features, you can make an informed decision that elevates your audio experience. Graphic equalizers, with their straightforward interface and impactful adjustments, offer a gateway to finely tuned sound, ensuring that every note and nuance is heard exactly as intended.
