Inverse Square Law, Audio: Understanding Sound Propagation

Table of Contents

Last Updated on March 20, 2024 by Muisc Pro Editorial Team

The concept of the inverse square law plays a critical role in understanding how sound behaves as it travels through space, a topic of particular interest to audiophiles seeking to optimize their listening experiences. This principle can sometimes seem daunting, especially when faced with the technical jargon and mathematical formulas found online. However, by breaking down the concept into more digestible parts and using simpler language, the inverse square law becomes much easier to comprehend.

What is the Inverse Square Law?

At its core, the inverse square law describes how the sound’s intensity diminishes as it moves away from its source. According to the Oxford Dictionary, the law states that “the intensity of [a sound wave] changes in inverse proportion to the square of the distance from the source.” Inverse square law means that for every doubling of distance from the sound source, the sound will be four times less intense. This principle helps explain why sounds become quieter the further they travel from their origin.

An Intuitive Approach to the Inverse Square Law

For those who find mathematical explanations challenging, considering a more intuitive approach may be helpful. Imagine a sound wave traveling away from its source and forming a sphere of acoustical energy. This sphere’s surface area represents the space over which the sound energy is spread. As the sphere grows larger (indicating the sound traveling further away), its surface area increases dramatically.

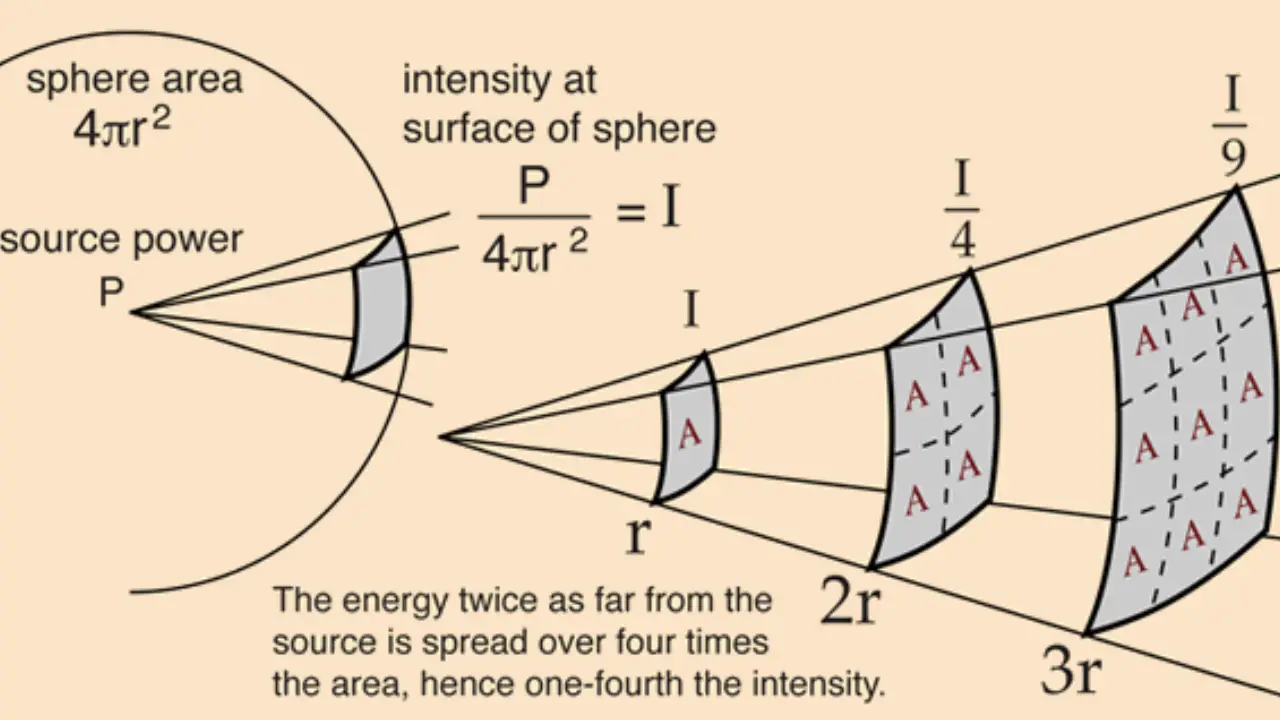

inverse-square-law-sound

Source: http://hyperphysics.phy-astr.gsu.edu/hbase/Acoustic/invsqs.html

Consider two spheres: one with a radius of 2 feet and another with a radius of 4 feet. The second sphere’s radius is twice as large, but its surface area is four times greater than the first sphere’s. This demonstrates how, with every doubling of the distance (or radius in this case), the sound energy must cover four times the area, resulting in a significant decrease in sound intensity levels per unit area.

Simplifying the Inverse Square Law and Its Application in Audio

The inverse square law is a fundamental principle in physics that greatly aids our understanding of how sound behaves as it moves through space. This concept, when broken down and explained in simpler terms, can become an invaluable tool for those involved in audio production and acoustics.

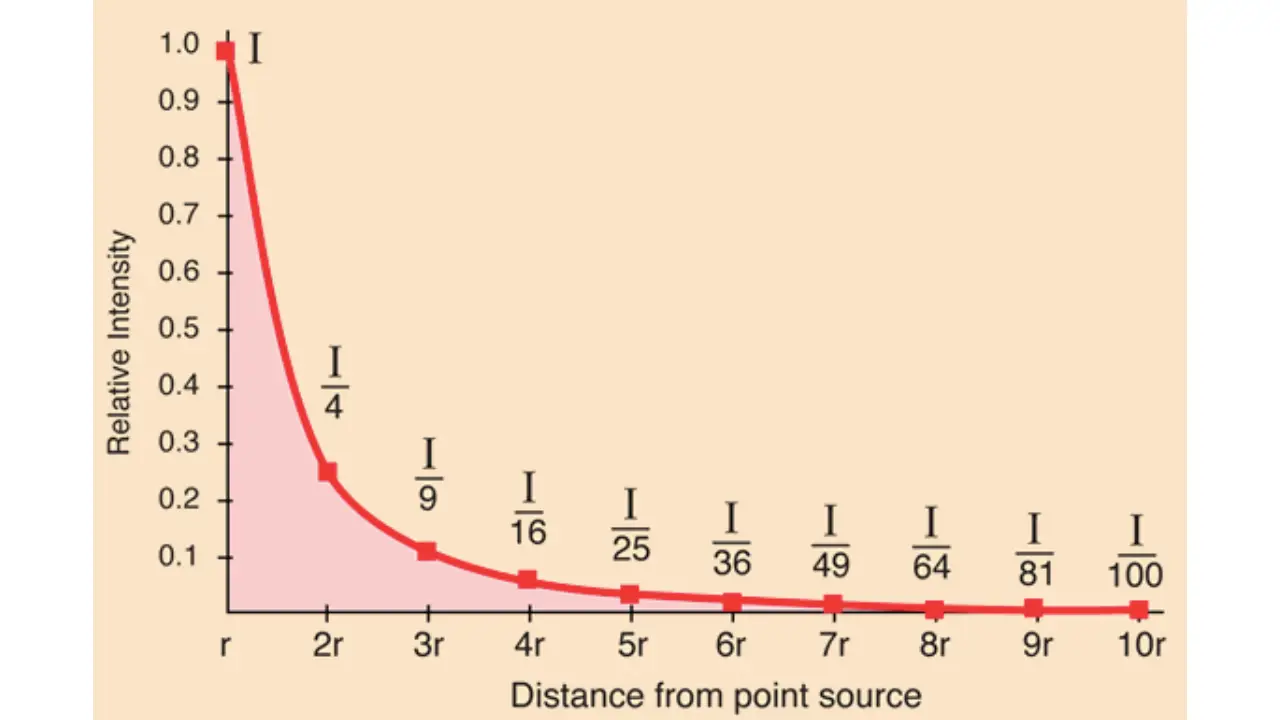

inverse-square-law-plot

Source: http://hyperphysics.phy-astr.gsu.edu/hbase/Acoustic/invsqs.html

Understanding Sound Pressure Levels Over Distance

To grasp how sound levels change over distance, we must differentiate between the intensity level of sound, which covers the entire wavefront, and the sound pressure level, which is what our ears and microphones actually detect at specific points. The inverse square law allows us to calculate changes in the intensity level across the wavefront. However, for practical applications in audio, we often rely on the inverse distance law. This law posits that the sound pressure level measured at a certain distance from a source is inversely proportional to that distance, making it extremely relevant for audio production.

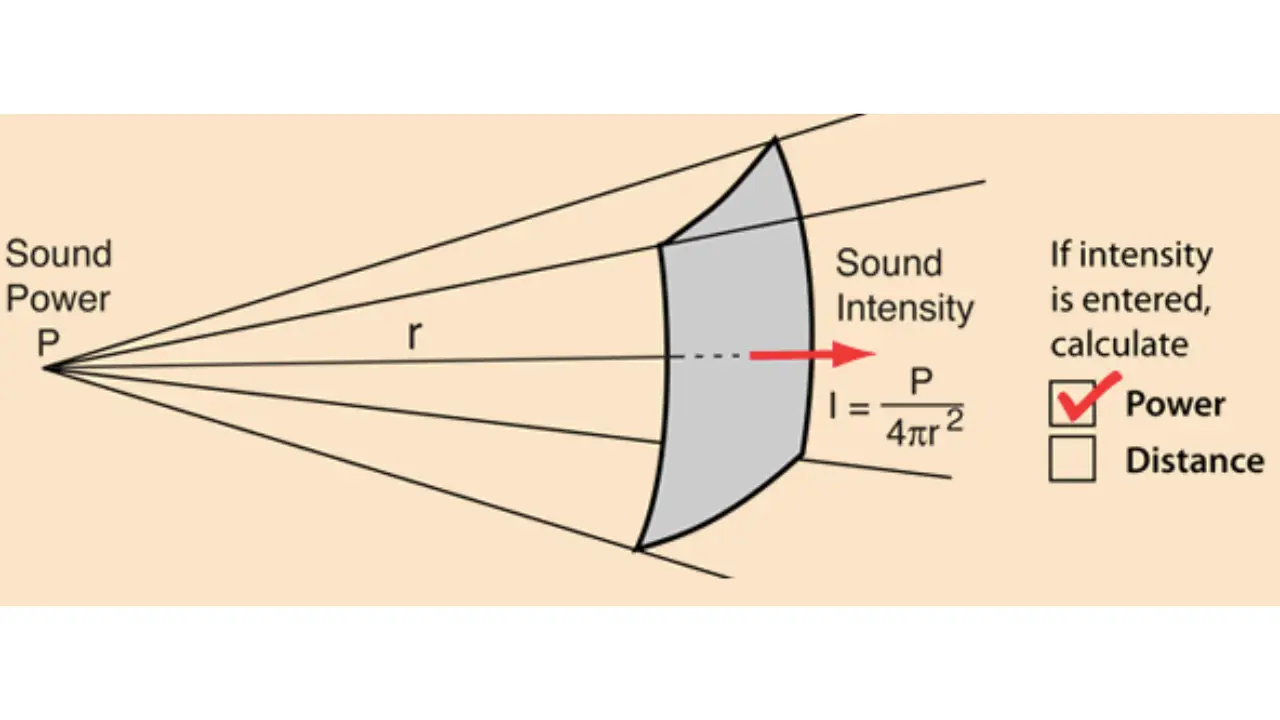

sound-intensity-from-point-source

Source: http://hyperphysics.phy-astr.gsu.edu/hbase/Acoustic/invsqs.html

Demonstrating the Laws Through Practical Examples

In real-world terms, when the distance from a sound source is doubled, there is a 6 dB decrease in both the intensity (dB SIL) and the pressure level (dB SPL) of the sound. This practical demonstration helps to solidify our understanding of how sound diminishes as it moves away from its origin.

Theory Versus Reality in Sound Propagation

While the inverse square law and the inverse distance law provide a theoretical foundation for understanding sound propagation, real-world conditions often introduce variables that can affect their accuracy. These laws assume ideal conditions that rarely exist outside of theoretical models.

  • Point Source: One key assumption is that the sound source acts as an omnidirectional point source, meaning it emits sound uniformly in all directions. This idealized scenario simplifies calculations but doesn’t always hold true in practical settings.
  • Free Field Condition: Another assumption is the existence of a free field, an environment without any obstructions like walls or ceilings that could reflect sound. In reality, most spaces have boundaries that can alter sound propagation, making the inverse square law and inverse distance law less predictable.

Conclusion

The inverse square law provides a foundational understanding of how sound intensity decreases with distance—a concept integral to the development of audio filters. It’s utilized to predict sound levels in a given space and understand how sound pressure levels change over distance. However, the practical application of these laws requires an awareness of their limitations and assumptions. Recognizing these factors is essential for accurately applying the inverse square law and inverse distance law in real-world audio production scenarios.
