What is a Preamp for Microphone? Understanding Its Role

Table of Contents

Last Updated on February 26, 2024 by Muisc Pro Editorial Team

If you are venturing into the world of podcasting or setting up your first home studio, you’re likely to encounter the term “microphone preamp” quite often. Understanding what a preamp is and why it’s important is the first step in building an effective recording setup. Before delving into preamps, it’s essential to choose a suitable microphone for your needs, such as a condenser microphone for recording vocals or low output microphones for acoustic guitar. Once you have a microphone, the next step is to connect it to your recording system, and that’s where microphone preamps play a crucial role.

What Does a Preamp Do?

Microphone preamps serve a dual purpose. Firstly, they provide the correct load impedance for the microphone’s output. Secondly, they amplify the microphone’s incoming signal to a level that’s usable for recording. The signal from a microphone is typically very low, often less than 100mVRMS. A preamp boosts this mic signal early in the signal chain, which helps to reduce the impact of noise that can be introduced by later processes. This amplification, performed by microphone amplifiers, is crucial whether you’re routing the signal to more analog equipment or converting it to a digital format for use in a Digital Audio Workstation (DAW) on your computer. For those needing additional gain, a dedicated outboard mic preamp can provide the necessary boost.

Line-Level Explained

When discussing preamps, you’ll encounter two main types of ‘line-level’ signals: -10dB (0.316V), commonly used in semi-professional and consumer audio products, and +4dB (1.23V), found in professional audio setups. These levels are standardized to ensure compatibility and optimal performance across various audio equipment, including recording interfaces with built-in mic preamps.

Do You Need a Preamp for Your Microphone?

Not every microphone setup requires an external preamp. For instance, USB microphones integrate a preamp and an Analog-to-Digital Converter (ADC) within the microphone itself, allowing you to plug directly into a computer without the need for additional equipment. This built-in mic preamps setup is sufficient for ensuring that the mic signal reaches your computer at an appropriate line level signal, making it a convenient option for podcasting and home studio setups.

Alternatives to Standalone Preamps

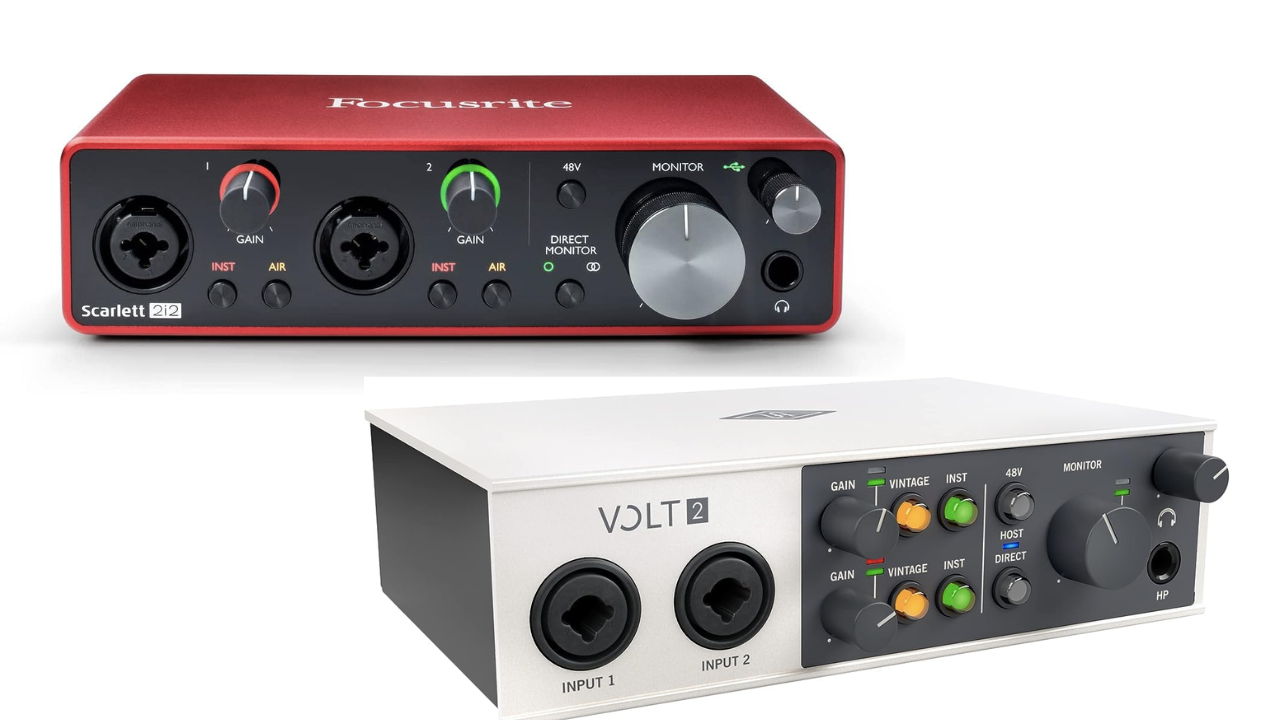

Audio Interface

audio-interface

For basic recording setups, a standalone microphone preamp might not be necessary if you have an audio interface. Audio interfaces typically include preamps with XLR inputs and gain controls, allowing you to adjust the amplification before the signal is converted from analog to digital. This setup means that if you already own an audio interface, you may not need to purchase a separate preamp for your microphone.

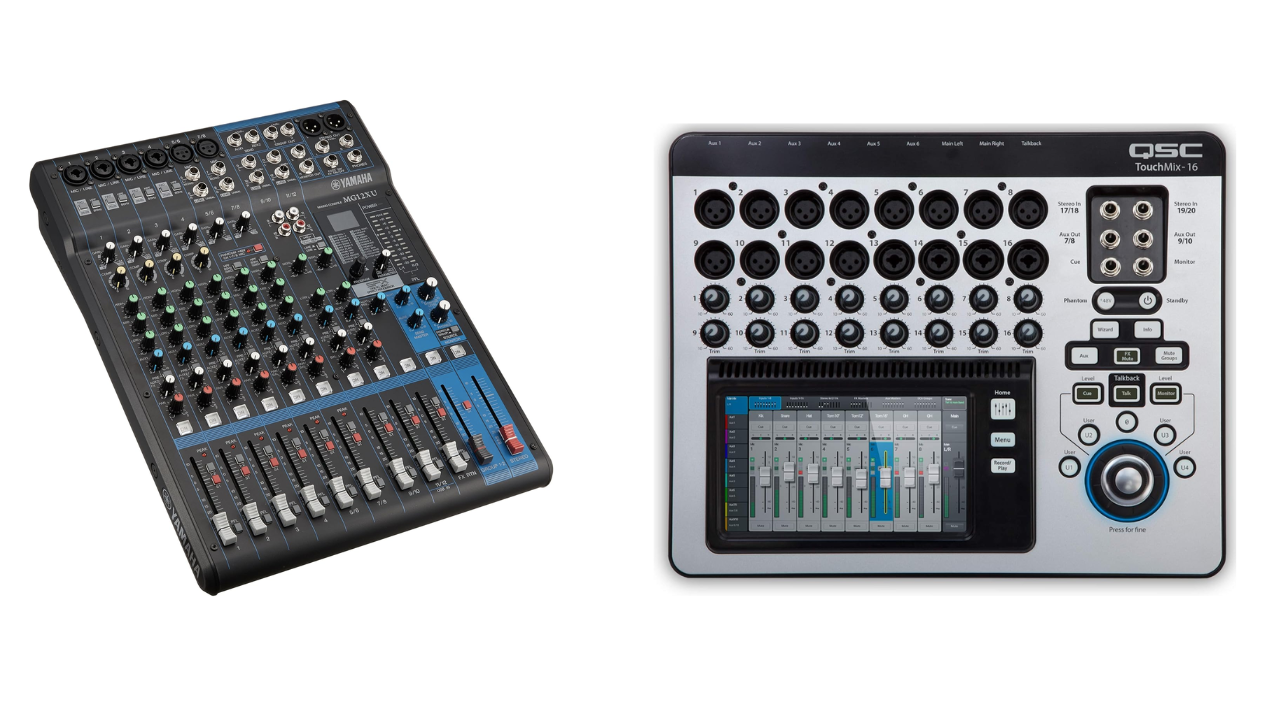

Mixer

mixers

Mixers are another alternative to standalone preamps, as most mixers come with built-in preamps on each channel strip. This setup allows a mixer to function as a preamp, amplifying incoming signals. However, if your mixer does not provide a digital output, you might still require an audio interface to convert the signal for use in your DAW. It’s worth noting that mixers can be large and expensive, making them less ideal for those just starting their recording journey.

Characteristics of a Quality Microphone Preamp

A good microphone preamp should amplify the signal without altering its character. While achieving this fidelity is challenging, with many preamps introducing some level of noise or distortion, modern preamps are designed to minimize these effects to levels that are generally inaudible. Some users, however, prefer preamps that add a specific coloration to the sound, introducing distortion and harmonics intentionally.

For versatility, a preamp should offer +48v phantom power to accommodate condenser microphones and have a variable input gain of at least 60dB to handle a wide range of signal levels. Features like minimum gain settings, switchable attenuator pads, EQ knobs, high-pass filters, phase invert switches, and input impedance selection can enhance the recording experience by offering more control over the sound.

Types of Preamps

There are mainly two kinds of preamps you’ll encounter in your audio journey: those integrated into audio interfaces or mixing desks and dedicated standalone units, known as outboard preamps. Outboard preamps are typically of higher quality than their built-in counterparts and are favored in professional recording studios for their ability to bypass the preamps in mixing desks or audio interfaces.

Outboard Preamps

Outboard preamps, revered for their superior quality, are a staple in professional settings, allowing sound engineers to bypass the preamps found in mixing desks or audio interfaces. Many engineers have favorite preamps and microphone/preamp combinations that deliver the specific tonal qualities desired for particular recordings. High-end preamps, often tube mic preamplifiers classified as ‘Class A,’ can significantly impact the tonal nuances of a recording, though they come at a higher cost. Cheaper alternatives might not offer a discernible difference, prompting users to explore other methods for altering sound qualities, such as microphone choice and placement, mic technique, and gain control.

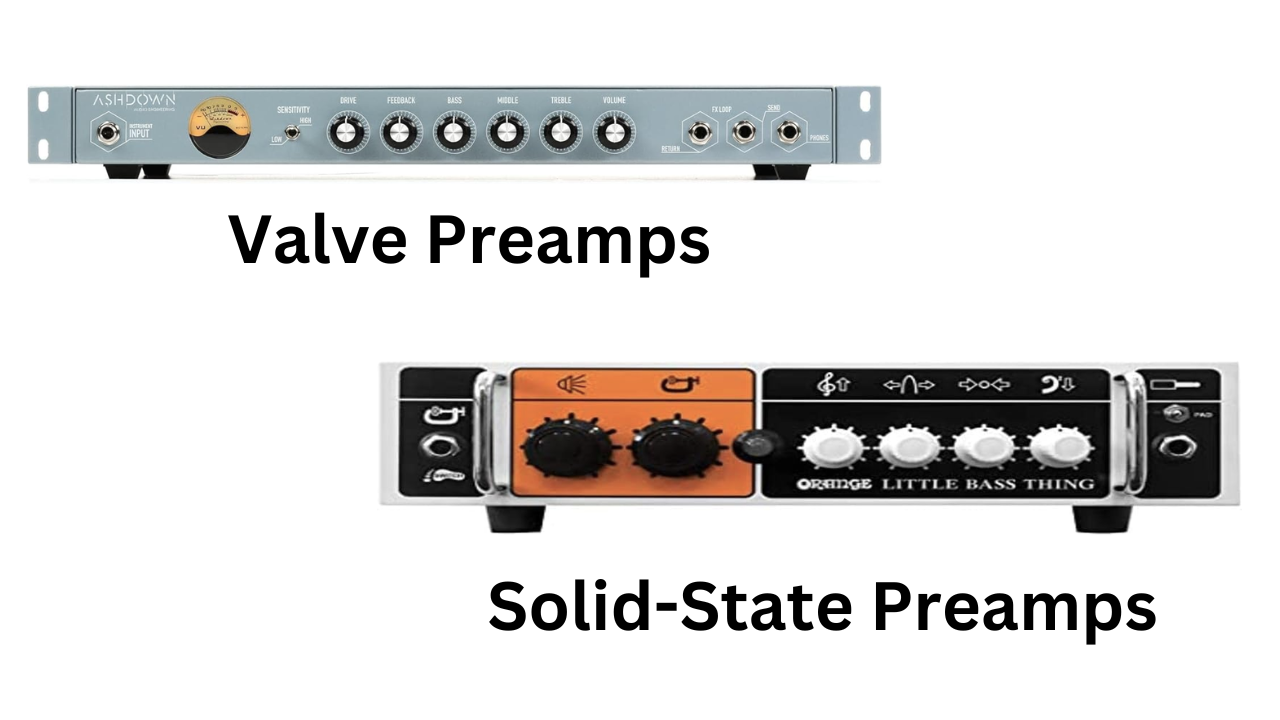

Mic Preamp Designs

mic-preamp-designs

Microphone preamps are available in two primary designs: valve (vacuum tube) and solid-state.

  • Valve preamps use vacuum tubes to amplify the microphone signal, producing a warmer, more natural sound favored for vocal recordings. These are more expensive than their solid-state counterparts, which use transistors for amplification.
  • Solid-state preamps, developed in the late 1950s and early 1960s, offer a more affordable solution for the consumer and semi-professional market.

Preferences for preamp types vary among sound engineers, with each having their favorite combinations for achieving the desired sound in the studio.

Choosing the Right Preamp

Preamps come in various forms, including desktop units, rackmounts, and compact 500 series modules. When selecting a preamp, consider the number of microphone inputs you’ll need, especially if you plan to record multiple sources simultaneously. The choice will depend on your specific recording needs and the complexity of your setup.

Fundamentals of Microphone Preamps

Clean Front End

The primary function of a microphone preamp is to amplify the low-level signal from a microphone to a more robust line level. While the built-in preamps in many audio interfaces can accomplish this basic task, they often lack the tone and flexibility of a higher-quality standalone preamp. A premium microphone preamp will not only increase the signal level but also deliver a cleaner, more accurate representation of the sound with less noise, lower distortion, and greater dynamic range.

Transparency

Transparency is a key objective for many recording professionals when choosing a preamp. High-quality preamps distinguish themselves by minimizing unwanted noise and hiss, providing a clearer signal that faithfully captures the source. This clarity allows for a more authentic reproduction of the original sound, free from the coloration that lower-cost preamps may introduce.

Color and Character

The choice of preamp can significantly affect the tonal quality of your recordings. Different preamps, especially those with transformers, discrete amplifiers, or tube circuits, can add unique color and warmth to the signal. Conversely, transformerless designs are celebrated for their clarity and transparency. Experimenting with various microphone and preamp combinations, much like a painter experiments with brushes and colors, can lead to discovering the perfect sound for your project.

Overloading and Preamp Behavior

A key concern with any studio equipment, including mic preamps, is overloading—when the incoming signal is too high for the device’s circuitry to handle properly. The reaction to overloading differs between valve and solid-state designs. Valve preamps can produce a pleasing, warm distortion when slightly overloaded, similar to an overdriven guitar sound. Conversely, solid-state preamps tend to generate a harsher, more unpleasant sound when overloaded, akin to digital clipping, which can ruin a recording. This distinction highlights the importance of understanding and carefully managing preamp levels to avoid unwanted distortion.

Conclusion

In conclusion, the journey to understanding and selecting the right microphone preamp for your studio setup is a crucial step towards achieving professional-quality recordings. Whether you’re navigating the nuanced world of audio interfaces that double as preamps or exploring the distinctive sounds offered by standalone preamps, the choices you make will shape the sonic character of your projects. By considering factors such as transparency, tonal coloration, versatility, and consistency, you equip yourself with the knowledge to make informed decisions that enhance your recordings. Remember, the goal is not just to amplify your microphone’s signal, but to capture and convey the essence of the sound in its truest form. As you experiment with different preamps and their unique attributes, you’ll discover the perfect match for your microphone, your studio, and your artistic vision, thereby elevating your recording experience to new heights.
