In the intricate world of audio equipment, the subtle distinctions between cable types can significantly impact your listening and recording experience. Among the plethora of options, TRS (Tip-Ring-Sleeve) and TRRS (Tip-Ring-Ring-Sleeve) cables stand out as fundamental connectors that bridge our devices to the sounds that entertain, inform, and engage us. Whether you’re setting up a home studio, connecting a headset for a gaming session, or simply plugging in a pair of headphones to enjoy music, understanding the differences between these cables is essential. This article aims to demystify these common audio cables, exploring their design, functionality, and applications to help you make an informed choice for your audio needs.
Understanding Audio Cables: TRS and TRRS
In the world of audio devices, like headsets and speakers, two types of cables often come into play: TRS and TRRS. These audio connectors are essential for connecting your devices to audio jacks on laptops, mobile phones, and other electronics, ensuring one solid sound signal through quality audio connectors is crucial for audio clarity and fidelity.
What is TRS?

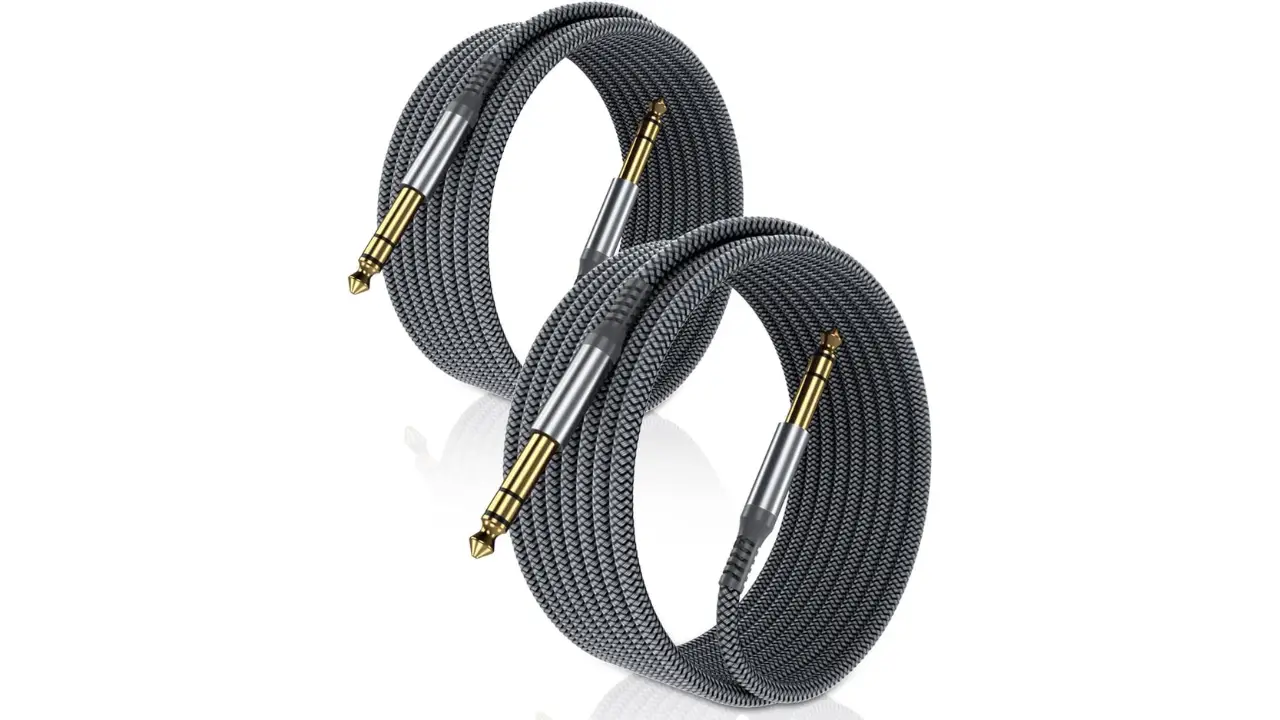

TRS stands for Tip-Ring-Sleeve (TRS connector), indicating the three contact points found on these cables, designed to carry two signal wires for unbalanced signals. This configuration is particularly common in stereo equipment, where the extra ring allows the cable to separate audio into right and left audio channels. TRS cables come in several sizes, including:
- TRS ¼” Balanced Line Cables: Used mainly for balanced signals, with the Tip and Ring carrying the audio signals and the Sleeve serving as the ground.
- TRS 2.5 Millimeter Cables: Often utilized in devices like guitar cables.
- TRS 3.5 Millimeter Cables: Commonly used for stereo signals in headphones and similar devices.
The ¼” balanced line cables are great for professional audio equipment that requires balanced audio signals, with the Tip and Ring carrying the audio signal and the Sleeve serving as the ground. The 3.5mm variant is popular for everyday use, providing stereo sound for headphones and speakers, utilizing a speaker cable designed for optimal audio performance. The 2.5mm cables are less common but still found in specific applications like TTY devices. A TRS cable is typically used for one-way audio signals, such as output from a camera or audio recorder.
What is TRRS?

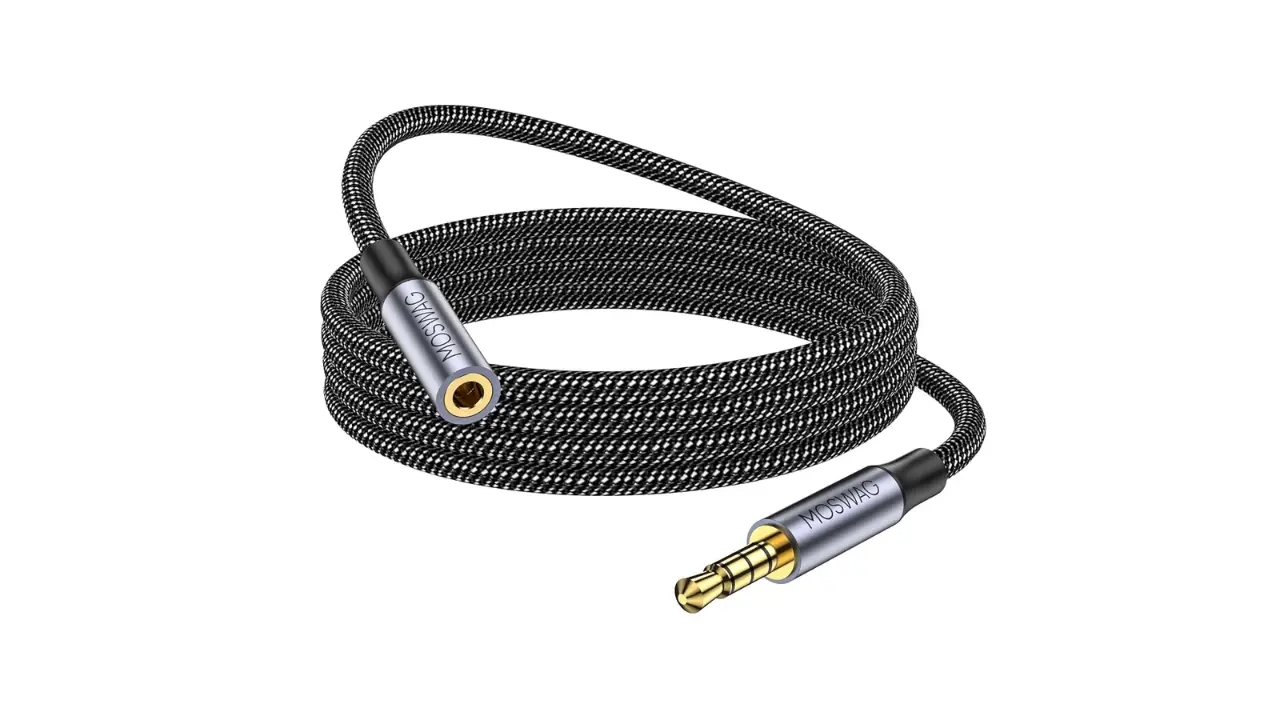

TRRS connectors (Tip-Ring-Ring-Sleeve) feature an extra ring over the TRS configuration, making the TRRS connector versatile for handling both audio connectors and unbalanced signals. This additional ring allows TRRS cables to support both audio and microphone signals, making them suitable for devices that include a built-in microphone, like smartphones and laptops. TRRS cables also come in various sizes:
- ¼-inch
- 3.5mm
- 2.5mm
Most TRRS audio connectors adhere to the CTIA standard, also known as the American Headset Jack (AHJ) standard. This configuration assigns the first ring and the tip to carry the right and left audio channels, with the ground on the second ring and the sleeve dedicated to the microphone or video channel. An alternative standard, OMTP, is less common and switches the roles of the second ring and sleeve. TRRS cables are primarily used for unbalanced stereo signals, but some devices may utilize the extra contact for balanced signals or video transmission.
Choosing Between TRS and TRRS
To decide whether you need a TRS or TRRS cable, consider the type of device you’re connecting and whether you need audio input capabilities. If you’re simply connecting stereo audio without the need for a microphone, a TRS cable should suffice. However, if your device has a built-in microphone that you wish to use, or if you need to connect to a smartphone, laptop, or gaming console, a TRRS cable will be necessary.
Compatibility of TRS and TRRS Cables
In the realm of audio connectivity, understanding how TRS and TRRS cables interact with various devices is essential for optimizing your audio experience. When it comes to connecting headsets or microphones to your devices, it’s important to know whether you’re using a TRS or TRRS cable and what your device supports. Generally, TRS headsets can work with devices that have a TRRS socket. When you connect a TRS headset to a TRRS socket, the device’s microphone will remain active, but its internal speakers will be disabled. Conversely, using a TRRS headset with a TRS port may result in the microphone channel being inactive. TRS microphones usually face compatibility issues with TRRS sockets because they’re designed for audio input only. However, using a TRS to TRRS adapter can solve this problem and ensure your device functions correctly.
Which Is Better?
Choosing between TRS and TRRS cables depends on your specific needs rather than a straightforward answer of which is better. While it might seem that TRRS cables, with their additional contact point, would offer superior functionality, the reality is that TRS and TRRS cables serve different purposes. The choice between them depends on the requirements of your device and whether you need support for audio input, audio output, or both. Understanding the distinctions between these cables ensures you select the right one for your setup, ensuring optimal audio performance.
Conclusion
In conclusion, understanding the differences between TRS and TRRS cables is crucial for anyone dealing with audio devices. While both types of cables serve their unique purposes in transmitting audio signals, choosing the right cable depends on the specific requirements of your device and the nature of its audio input and output. TRS cables are suited for simple stereo audio output, whereas TRRS cables offer the added functionality of microphone input alongside stereo output. By grasping the compatibility and connection nuances of these cables, users can ensure they are making the most out of their audio devices, whether for professional use, gaming, or casual listening. This knowledge not only enhances your audio experience but also prevents the common pitfalls associated with mismatched audio connections.
