What Are Line Array Speakers? Understanding Their Impact

Table of Contents

Last Updated on February 16, 2024 by Muisc Pro Editorial Team

Line array speakers have become increasingly popular in the world of sound reinforcement, particularly for large venues and events. Originating with early models like the 1967 Shure Vocal Master system, which was described as a “highly directional, wide range, line-radiator,” line array systems didn’t initially gain much traction. However, over the past few decades, they have become the go-to solution for achieving balanced sound coverage in challenging environments. But what exactly is a line array speaker? Simply put, it is a configuration of multiple loudspeakers that cover the same frequency range, stacked vertically to create a unified sound source.

Understanding Line Arrays

The unique aspect of line array systems lies in the orientation of the speakers. Each unit within the array is angled slightly differently in the vertical plane. This arrangement allows the system to cover a greater depth of field than a single, standalone PA speaker could achieve. The result is a consistent sound experience for attendees, whether they are in the front, middle, or back of the venue. This uniform sound distribution is crucial for large spaces where maintaining high sound pressure levels (SPLs) and clarity across all areas is essential.

The Science of Line Arrays

The Inverse Square Law and Line Arrays

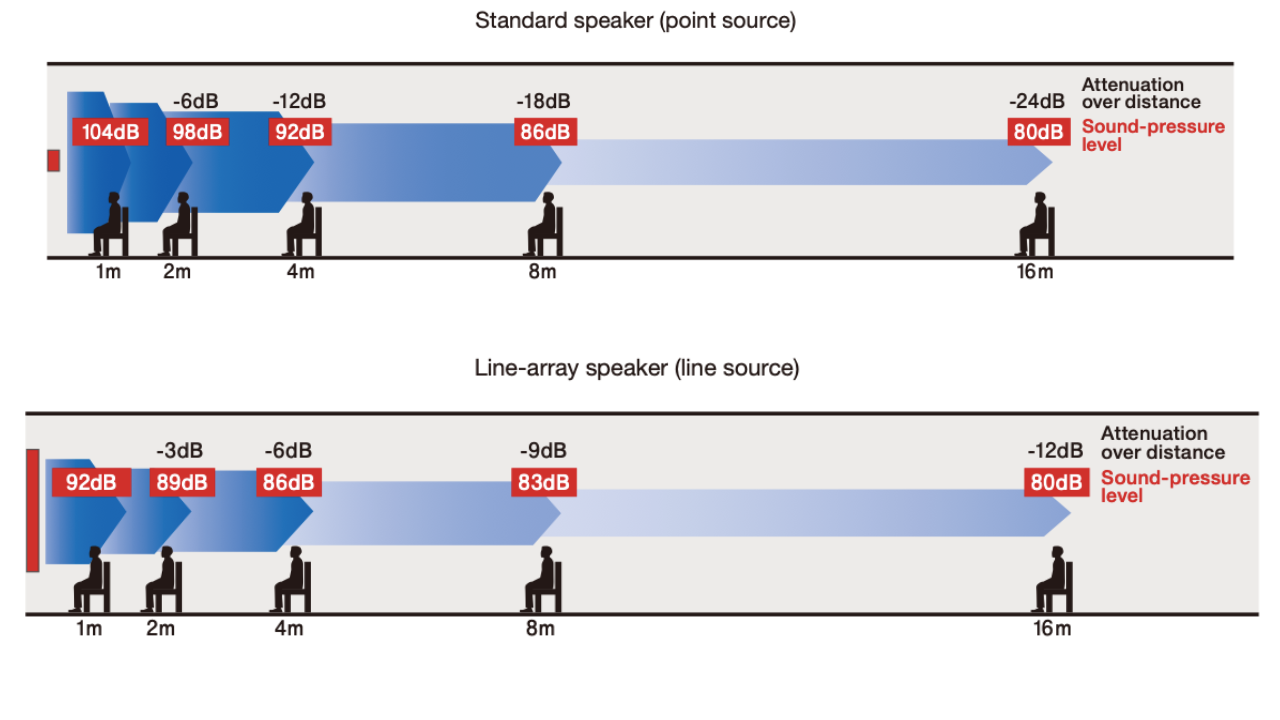

Line arrays, however, operate as a line source rather than a point source. This distinction means that sound levels from a line array do not decrease as rapidly with distance — theoretically dropping by only 3dB for each doubling of distance, although practical outcomes may vary. This slower attenuation allows line arrays to project sound more effectively to the back of a venue without the need for excessively high output levels at the front, a common necessity with conventional PA speakers that exhibit broader dispersion patterns.

Understanding the directional characteristics of sound sources is fundamental to grasping how PA loudspeakers work and how to optimize their performance. There are various types of sound sources, each with unique properties that influence how sound is projected and perceived in a space.

standard-and-line-array-diagram

From Point Source to Line Source

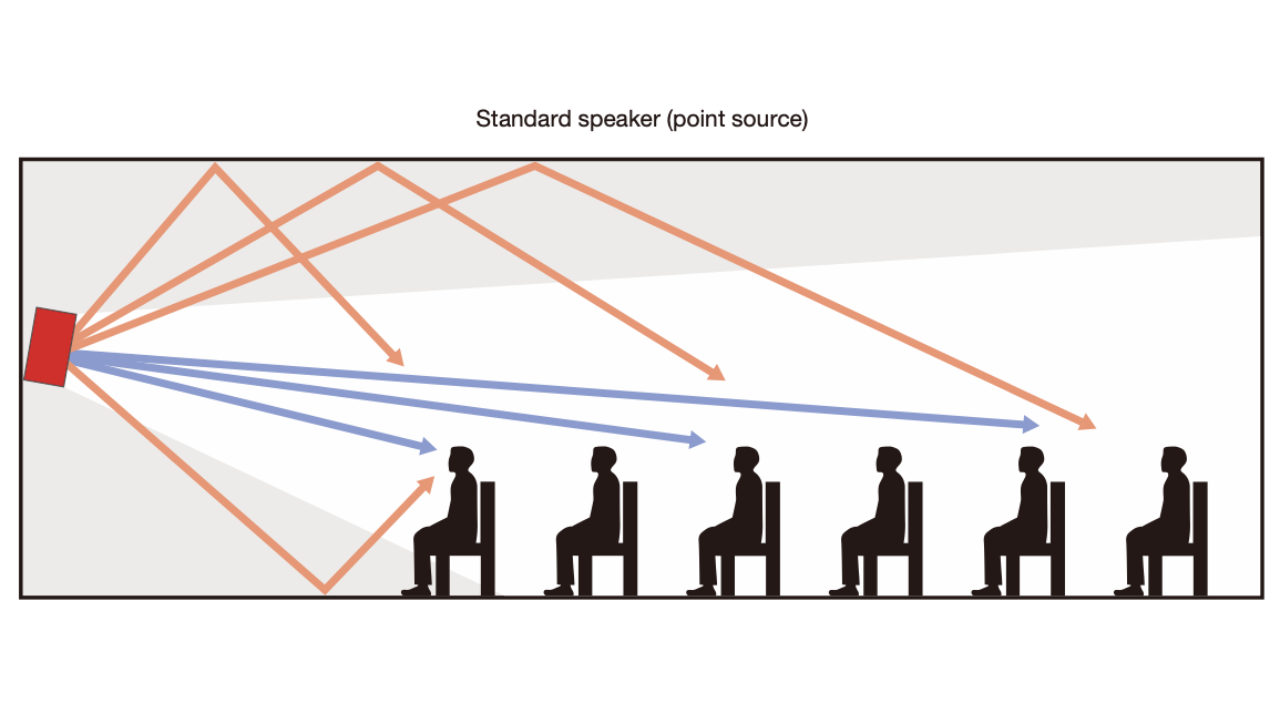

  • The Concept of Point Source: A point source of sound is an idealized, infinitely small sound emitter that radiates sound equally in all directions. In practical terms, a small loudspeaker emitting low-frequency sounds serves as a real-life example. Imagine a single pulse of sound expanding outward from this point source; as it travels, the surface area of the sound wave increases, causing the sound pressure to decrease. This decrease in sound pressure by 6dB for every doubling of distance is known as the inverse square law. However, it’s crucial to note that this law only applies to omnidirectional sound sources.
  • Directional Sound Sources: Not all sound sources are omnidirectional or behave according to the inverse square law. Directional sound sources, such as those used in PA systems, decrease in level at a rate less than 6dB per doubling of distance. This characteristic allows for more controlled sound projection, especially in large venues.
  • Plane Source and Line Source: At one extreme, we find the plane source, which can project sound over great distances without significant loss in level. Examples include the ship’s speaking tube and the tin-can telephone, where sound travels through a constrained medium. While not practical for audience sound delivery, these examples illustrate the potential for focused sound projection. At the other end of the spectrum is the line source, which offers a solution to the limitations of point and plane sources by providing focused sound directionality over a wide area.

Why Line Arrays Stand Out in Large Venues

The design and operational principles of line arrays make them exceptionally well-suited for large venues and outdoor spaces. By mitigating the rapid drop-off in sound pressure levels over distance, line arrays ensure that sound is distributed more evenly across a wide area. This capability is critical for event organizers and sound engineers who aim to deliver high-quality audio experiences to every attendee, regardless of their location within the venue. If your events require significant sound coverage, clarity, and consistency, exploring line array technology is a step in the right direction.

Understanding the Acoustic Principles Behind Line Arrays

The fundamental challenge in scaling up column loudspeakers to fit auditorium-sized venues was understanding and applying the principles of sound dispersion. Starting with the basic concept of a point source, which emits sound in a spherical wave resulting in a 6dB loss for every doubling of distance, engineers sought a middle ground. This led to the exploration of the line source concept, capable of producing a cylindrical wave, offering a compromise with a 3dB loss over distance. This cylindrical dispersion pattern was pivotal in developing line arrays that could deliver more consistent sound levels across a larger area.

standard-speaker-diagram-1

line-array-diagram-1

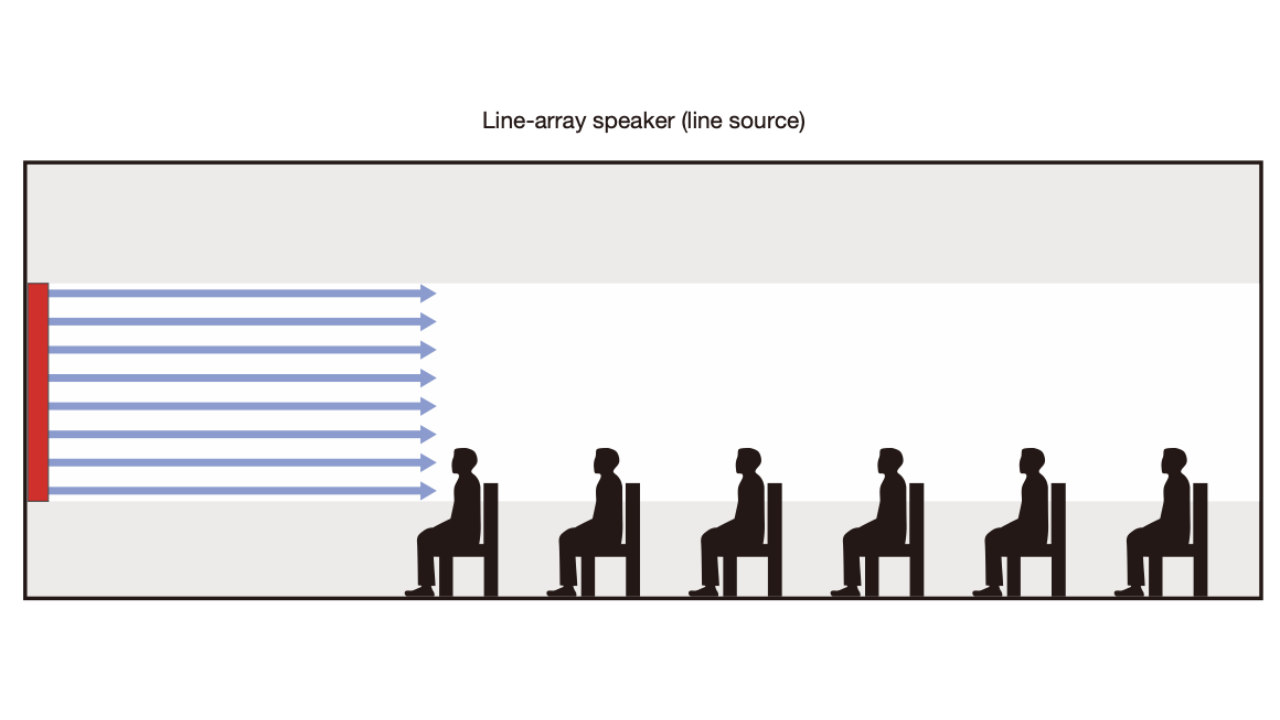

The line source operates under the principle that sound level decreases less rapidly with distance compared to a point source, theoretically not at all with a plane source. Achieving a genuine cylindrical wave requires the line source to have significant height, often several meters, to approach near-zero vertical dispersion while maintaining 360-degree horizontal dispersion. This concept, while simple in theory, presented practical challenges in implementation, given the physical dimensions required for effective line source behavior.

The Practical Design and Assembly of Line Arrays

The modern line array system emerged from the need to create a scalable, directional sound source. Unlike the single, tall cabinets of the past, contemporary line arrays consist of multiple smaller cabinets, each containing low-frequency (LF) and high-frequency (HF) drive units. This modular approach allows for flexibility in size and shape, adapting to various venue requirements and budget constraints. Moreover, the arrangement of these cabinets plays a crucial role in achieving the desired directional sound dispersion.

A critical aspect of line array design is ensuring that individual cabinets couple effectively to function as a cohesive line source. For effective coupling, the distance between drive units must be less than half the wavelength of the sound they’re producing, a criterion that becomes increasingly challenging to meet for higher frequencies. The physical height of the cabinets is thus a compromise between maintaining a compact size for higher frequency coupling and achieving sufficient length for effective vertical directionality.

Challenges and Limitations of Line Array Systems

Line arrays, while beneficial in addressing sound coverage issues in various spaces, encounter specific limitations. One of the primary challenges is achieving an array length sufficient to manage the lower midrange frequencies effectively. Furthermore, line arrays can produce peculiar anomalies, such as lobing, where certain frequencies are directed into areas immediately above and below the array. In acoustically poor spaces, these anomalies can exacerbate problems, leading to feedback issues when a vocal microphone is positioned directly beneath a line array. These challenges underscore the importance of careful placement and tuning to mitigate potential sound quality issues.

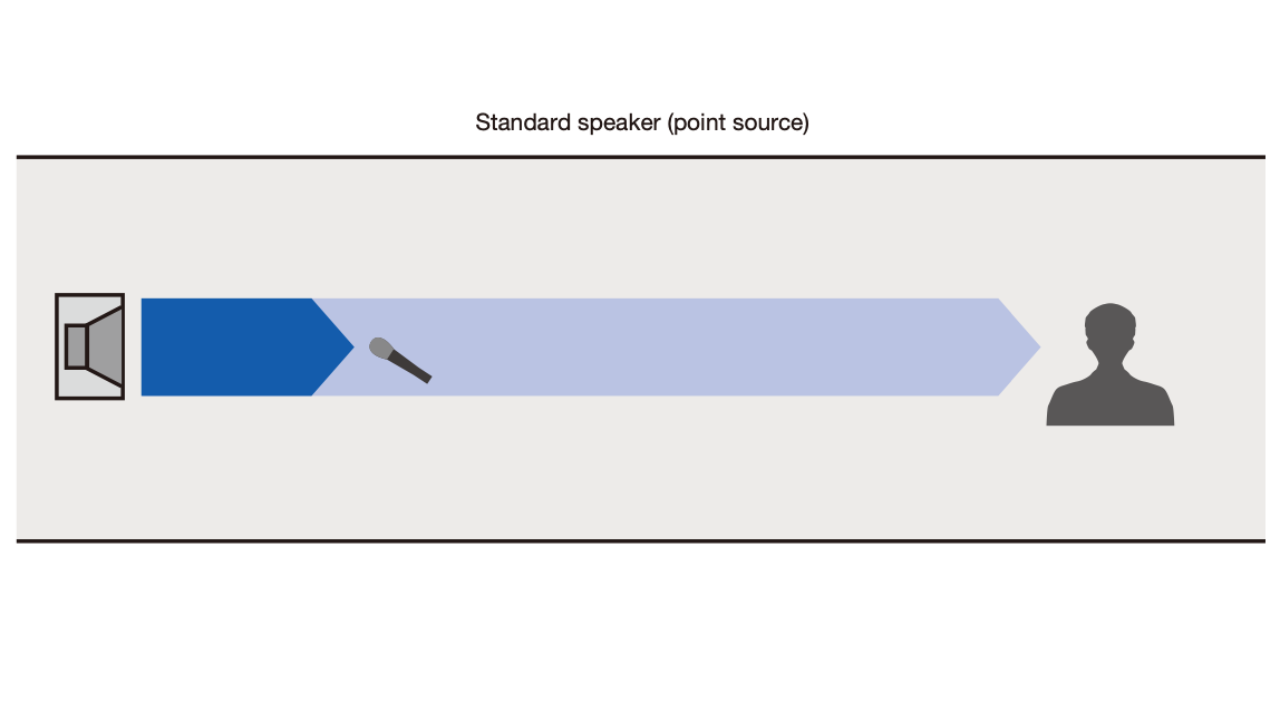

standard-speaker-diagram-2

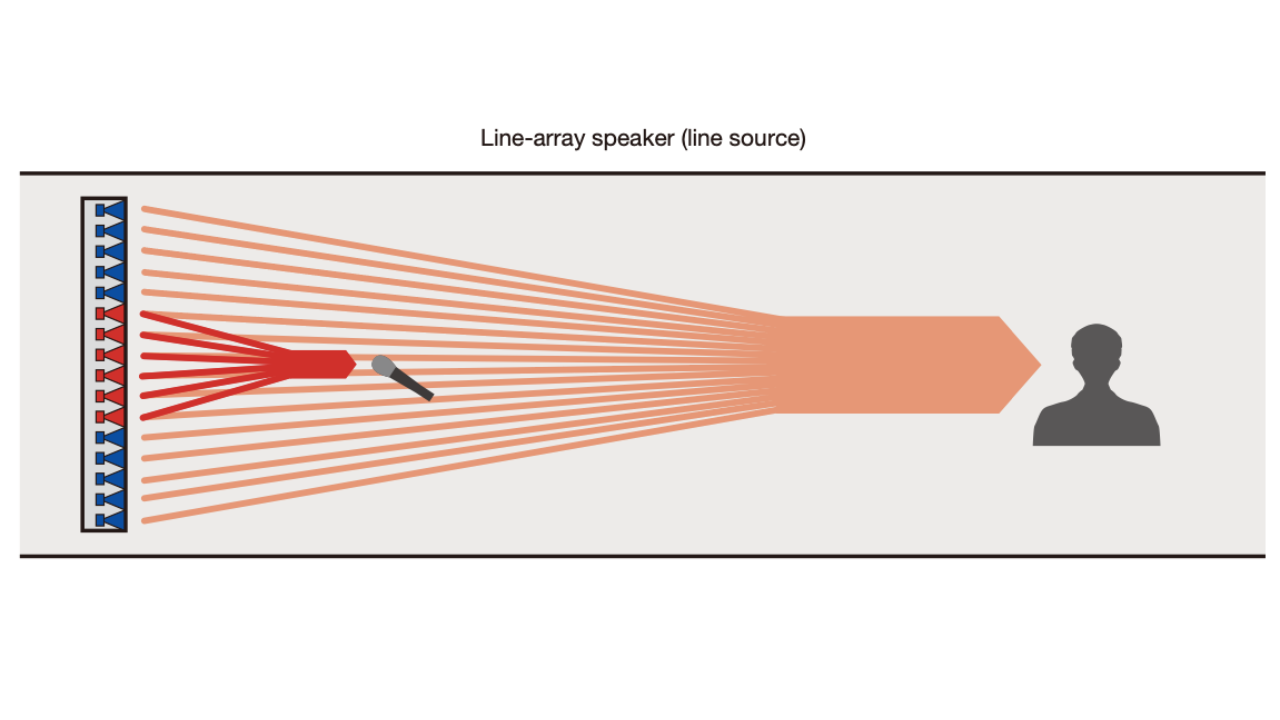

line-array-diagram-2

The Reality of Achieving a Perfect Line Source

Despite the theoretical appeal of a perfect line source, practical limitations mean that real-world line arrays can only approximate this ideal. Factors such as the physical size of cabinets and the natural dispersion characteristics of sound waves contribute to the complexity of creating a true line source. This reality is acknowledged within the industry, underscoring the importance of design optimization rather than the pursuit of an unattainable perfect solution.

Achieving Even Sound Distribution with Line Arrays

The primary goal of using line arrays in sound reinforcement is to deliver uniform sound levels across the entire audience area, from the front to the back of the venue. This objective is achieved by engineering line arrays to focus sound vertically while allowing it to spread horizontally. However, despite the sophisticated design of line arrays, challenges remain in maintaining consistent sound pressure levels throughout the audience space.

Challenges of Sound Distribution

One approach to overcoming the disparity in sound levels between the front and rear of the audience is intensity shading. This technique involves reducing the output of the lower section of the array, which is closer to the audience members at the front. While this method intuitively aims to balance sound pressure levels, it introduces a new set of challenges. Sound from the upper cabinets, which is not reduced, can create an interference pattern due to the delay in sound reaching listeners from different heights, leading to uneven sound distribution. Overcoming this issue with equalization and delay could compromise the line array’s efficiency and simplicity.

An alternative method to achieve a more uniform sound distribution is divergence shading, which naturally occurs when the line array is configured into a ‘J’ shape. By curving the lower section of the array downwards, sound is more directly aimed at the front rows, while the upper cabinets project sound towards the rear. This physical adjustment of the cabinets, increasing their divergence, naturally reduces their intensity at closer listening positions. Manufacturers address the need for varying dispersion angles by designing specific cabinets for different parts of the array, such as long-throw and front-fill cabinets, to optimize sound coverage throughout the venue.

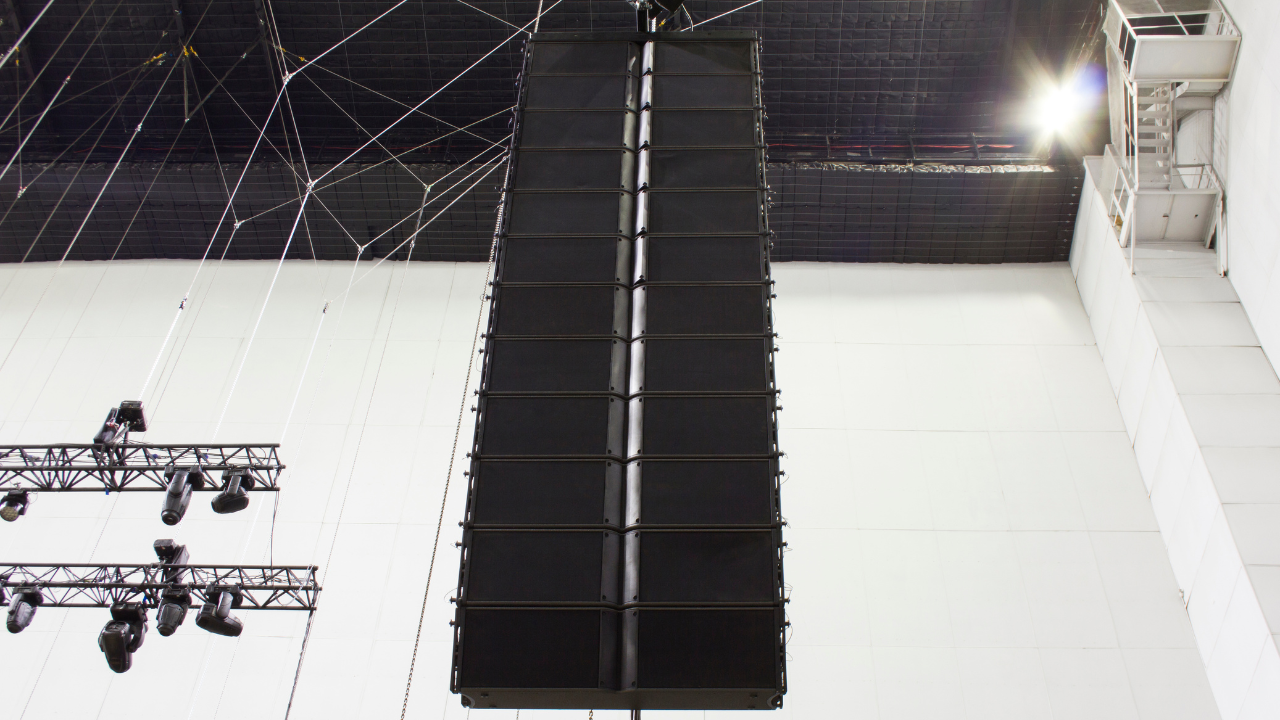

line-array-speaker-at-venue

Line Arrays for Smaller Venues

While line arrays are a staple for large touring acts and major venues, their benefits can also extend to smaller gigging bands and venues. The transition of line array technology to smaller settings, such as pubs and clubs, is anticipated as manufacturers adapt the technology for compact environments. The challenge in smaller venues lies in the ceiling height and the proximity of the audience to the stage. Unlike large venues where arrays can be flown high above the audience, in smaller settings, the array would need to be positioned closer to the audience level, impacting the effectiveness of the cylindrical wave dispersion and potentially leading to a loss of the downward sound projection advantage.

Despite these challenges, the adaptability of line arrays — comprising multiple small cabinets — presents an opportunity for innovative deployment in smaller spaces. Properly configuring a line array to suit the unique acoustic characteristics of smaller venues can help mitigate level differences and maintain the advantages of line array systems. This requires careful consideration of array height, angling, and the specific acoustic demands of the venue to ensure that all audience members enjoy a high-quality sound experience, regardless of their location relative to the stage.

Sound Quality Considerations

Despite the advantages of line array systems in distributing sound evenly across large venues, they may not always match the sound purity that high-quality single driver or two- or three-way cabinets can provide. This difference in sound quality is a key reason why line arrays are less common in smaller spaces, where a few strategically placed speakers can offer superior audio fidelity. Additionally, the cost and spatial requirements of line array systems make them less feasible for smaller venues, where budget and space constraints are more pressing.

The Three Pillars of Sound Quality

For a PA system to be considered effective, it must meet three key criteria: adequate level, low distortion with a flat frequency response, and sufficient clarity. Each of these elements plays a crucial role in the overall sound quality. Achieving an adequate level of sound, for instance, has been relatively straightforward since the 1970s, with the main consideration being the power required for a specific venue. However, challenges remain in minimizing distortion and noise while maintaining a flat frequency response. Despite these challenges, the sound quality of modern PA systems is generally accepted as satisfactory by most people, setting a standard expectation for what a PA should sound like.

While significant strides have been made in achieving adequate levels and reducing distortion, clarity remains the elusive goal in sound reinforcement. In live concert settings, the complexity of the acoustic environment often results in a loss of clarity, leaving audiences with a less than ideal listening experience. This issue underscores the need for continued innovation and improvement in PA system design and deployment.

The Importance of Sound Energy Management

For sound engineers and designers, it is crucial to understand how sound energy interacts with the environment. When sound is directed at the audience, it is largely absorbed, reducing the potential for reflective echoes that can muddy the listening experience. Conversely, sound that is ‘sprayed’ onto walls and ceilings creates reflections that contribute to a less clear and more confusing auditory environment. Thus, managing where sound energy is directed not only enhances direct listening experiences but also minimizes unwanted acoustic reflections that can detract from clarity and intelligibility.

The Emergence of Small Line Arrays

Despite their traditional association with large venues, line array technology has been adapted for smaller settings as well. Companies like Bose, Fishman, and Turbosound have introduced compact, personal PA systems that utilize miniaturized arrays of small speakers (ranging from 2 to 4 inches) to replicate the line-source dispersion effect characteristic of larger arrays. These small line array systems can provide exceptional sound coverage in smaller venues, offering a versatile solution that bridges the gap between the immersive sound of large arrays and the intimacy of smaller speaker setups. This innovation allows for the benefits of line array technology to be applied in a wider range of settings, making quality sound reinforcement accessible to a broader audience.

Conclusion

The exploration of line array speakers reveals a sophisticated blend of acoustic science and engineering, designed to meet the evolving demands of sound reinforcement in diverse venues. From their origins as column loudspeakers to the advanced, adaptable systems we see today, line arrays have revolutionized the way sound is delivered to audiences, ensuring uniform coverage and unparalleled clarity. As technology continues to advance, the potential for line arrays to enhance live performances grows, promising an auditory experience that is as immersive as it is consistent, regardless of the size or shape of the venue. In the realm of sound reinforcement, line array speakers stand as a testament to the relentless pursuit of perfection in audio quality, marking a significant milestone in our journey to bring every note and nuance to life for listeners everywhere.
